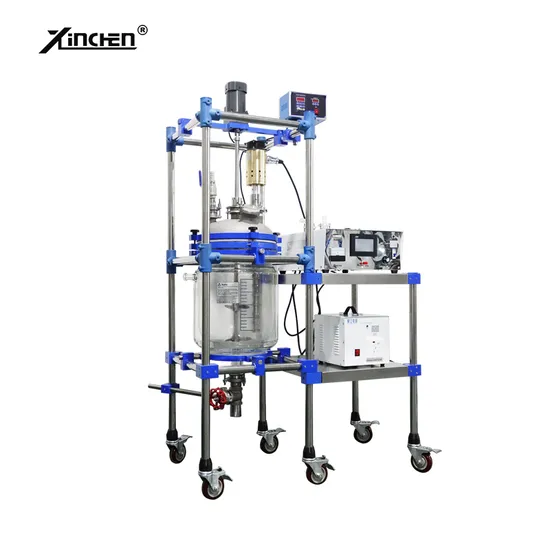

3000 Ultrasonic Sonicator for Graphene Dispersion Homogenizer

Product Description

Product Description Ultrasonic reactor is the use of ultrasonic dispersion, crushing, activation and other multiple effects to destroy the solvent structure, improve the reaction activity, disperse crushed particles, to futher reduce the diameter of the wire.
The test proved that: ultrasonic reactor play a significant role in the superfine grinding, oil emulsification extraction and dispersed in nano scale for the powder material in liquid phase. At the same time, it can accelerate the reaction, emulsifying reaction and homogeneous reaction of powdery substance.
Product Parameters

Model	XC-1L	XC-2L	XC-3L	XC-5L	XC-10L	XC-20L
Volume (L)	1	2	3	5	10	20
Jacket Volume (L)	0.3	0.6	0.9	1.5	3	6
Lid Diameter (mm)	150	150	150	180	265	265
External diameter of the inner vessel (mm)	113	135	150	180	230	290
External diameter of the outer vessel (mm)	150	180	200	230	290	330
Vessel height (mm)	250	280	300	400	450	550
Motor power (W)	90	90	90	120	120	140
Vacuum degree(Mpa)	0.096
Rotation Speed (rpm)	50-800	50-800	50-600	50-600	50-600	50-600
Torque (Ncm)	30	30	30	162	162	210
Dimensions(mm)	330*350*800	320*350*800	320*350*900	450*450*1100	500*500*1200	500*500*1450
Power	220V 50Hz

Model	XC-30L	XC-50L	XC-80L	XC-100L	XC-150L	XC-200L
Volume (L)	30	50	80	100	150	200
Jacket Volume (L)	10	16	24	30	45	60
Lid Diameter (mm)	265	265	340	340	340	340
External diameter of the inner vessel (mm)	330	365	410	460	550	600
External diameter of the outer vessel (mm)	365	410	460	500	600	650
Vessel height (mm)	730	850	950	950	980	1200
Motor power (W)	140	180	250	250	400	750
Vacuum degree(Mpa)	0.096
Rotation Speed (rpm)	50-600
Torque (Ncm)	210	300	350	350	400	400
Dimensions(mm)	500*500*1600	600*600*1800	700*700*2400	700*700*2600	800*800*2800	1200*900*3200
Power	220V 50Hz

Product Features 1. Ultrasound function increase in reaction speed.
2. Greatly increase in reaction output.
3. More efficient energy usage sonochemical methods for switching of reaction pathway.
4. Performance improvement of phase transfer catalysts.
5. Avoidance of phase transfer catalysts.
6. Use of crude or technical reagents.
7. Activation of metals and solids.
8. Increase in the reactivity of reagents or catalysts.

Model	NKG-05KW	NKG-1.0KW	NKG-1.5KW	NKG-2.0KW	NKG-3.0KW
Resonant frequency(KHZ)	20±1
Power(W)	500	1000	1500	2000	3000
Input Voltage(V)	220±10%
The highest withstand temperature	-80ºC~250ºC
Emission head diameter	50	50	50	50	50
The ultrasonic generator	1.Fuzzy program intelligent control
	2.DDS frequency automatic detection and tracking
	3.DSP control circuit
	4.Ultrasonic power putput adjustable
	5.Power device IGBT
	6.Continuous ultrasonic time up to 99hours

Project Photos
We professional manufacture different kinds of glass reactor systems.
We have strong design, manufacture and site installation ability.
As a manufacturer not trading company, we can supply you with high quality , best price and fast delivery service.
1.Packing method: Standard export wooden box or base on your requests.
2. Shipping method: By Express door to door, or by ship, based on your choice.
1) If delivery goods by Express, door to door service , generally about 5-7 working days reach.
2) If by air, deliver goods to your destination airport, about 5 working days reach.
3) If by sea, deliver goods to your local seaport, specific days and cost is based on different shipping line.
3. Warranty
Any broken or damages of glass parts caused by delivery, will be afforded by Nanjing Ningkai company.
