OEM Lead Time 2 Months 5000L Magnetic Coupling Stirring Stainless Steel Hydrogenation Chemical Reactor

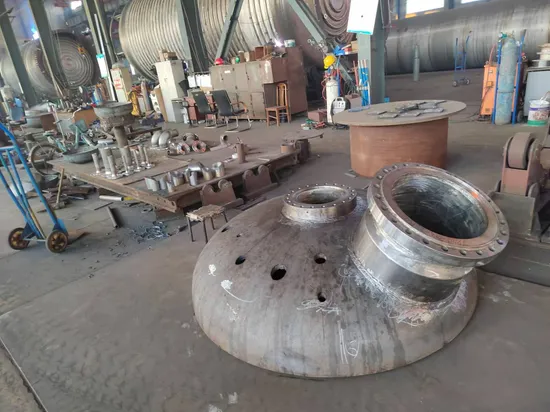

Product Description

Vessel Capacity m³: 5.8 Material: S31603+Q345R Design pressure MPa: 4.5 Design temperature ºC: 200 Work pressure MPa: 3.5 Work temperature ºC: 160 Medium: Hydrogen, catalyst, phenol Working life: 10 years Jacket Capacity m³: 1.0 Material: Q345R Design pressure MPa: 0.6 Design temperature ºC: 200 Work pressure MPa: 0.5 Work temperature ºC: 160 Medium: steam Heat exchange area m2: 13.7 Coil tube Capacity m³: 0.13 Material: S31603 Design pressure MPa: 0.6 Design temperature ºC: 150 Work pressure MPa: 0.5 Work temperature ºC: 50 Medium: cycling water Heat exchange area m2: 12.2 Total weight Kg: 9338
With the demand for environmental protection in the new era, hydrogenation is the most environmentally friendly chemical process, gradually replacing the process of severe pollution that is not conducive to environmental protection. It is applied in the three-phase catalytic hydrogenation of gas, liquid, and solid, which is a reaction process between hydrogen and other compounds. It is divided into single-sided hydrogenation and double-sided hydrogenation. The process of high-pressure hydrogen gas consumption to low-pressure is accompanied by hydrogenation heat, also known as exothermic reaction. Hydrogen is a flammable and explosive substance, and there must be safety measures for the hydrogenation process.
Magnetic coupling drive with static sealing, zero leakage, long service life, simple installation, safe and environmentally friendly.

MODEL	FCHA200-600L	FCHA800-2000L	FCHA2500-5000L	FCHA6000-10000L	FCHA12000-20000L
CAPACITY	200-600L	800-2000L	2500-5000L	6000-10000L	12000-20000L
WORK PRESSURE MPa	-0.1-10.0	-0.1-10.0	-0.1-10.0	-0.1-10.0	-0.1-8.0
WORK TEMPERATURE C°	-15-320	-15-320	-15-320	-15-320	-15-320
rpm	0-320	0-320	0-320	0-320	0-320
Motor power KW	3.0-11.0	11.0-22.0	15-37.0	22.0-55.0	37.0-75.0
Main materials	09MnNiDR/16MnDR (low-temperature steel), 15CrMoR (high-temperature steel), stainless steel S30408/S32168/S31603, S39042, titanium material, duplex steel, shackle material, Hastelloy alloy, zirconium material, Monel, and other materials used for explosive composite plates.
Heating form	Jacketed thermal oil, jacketed steam, outer half pipe, inner coil pipe.
Mixing form	Turbine self suction, disc turbine, asymmetric turbine, four wide blade, axial flow combination self suction.
Shaft sealing form	Magnetic coupling drive with static sealing, zero leakage, long service life, simple installation, safe and environmentally friendly.
Remarks	Other special requirements, touch screen intelligent control, program control, and connection to DCS systems shall be designed, manufactured, and configured according to user needs.

LUHAO Chemical Machinery Co. Ltd

Pressure Vessel Design Information Collection Table

Vessel

Jacket (Coil)

Work Medium

Name

Components

Density (Kg/m³)

Characteristics

Viscosity (cP)

Flow Velocity(m³/h)

Design pressure (Mpa)

Work pressure (Mpa)

Design temperature(ºC)

Work temperature (ºC)

Wall temperature (ºC)

Diamter (mm)

Length (mm)

Capacity(m³)

Effective capacity (m³)

Corrosion allowance (mm)

Corrosion speed (mm/year)

Recommended Materials

Lowest value of average monthly temperature(ºC)

Site location

Installation condition

Indoor or Outdoor

Catalyst Volume(m³)

Catalyst Density(Kg/m³)

Heat Transfer Area()

Coil Specification

Basic Wind Pressure(Mpa)

Seismic Basic Intensity

Ambient Temperature(ºC)

Site Type

Operating Mode

Insulation Materials

Name

Thickness

Density (Kg/m³)

Seal Requirements

Liquid Level Gauge

Emergency Cut-off

Static Electricity Removal

Anti Eddy Current Requirement for Liquid Outlet

Installation and Mantainance Requirements

Expected Useful Life (years)

Safety accessories

Vessel

Jacket (Coil)

Location

Type

Specification

Quantity

Set pressure(Mpa)

Burst disc

Burst pressure(Mpa)

Safety discharge(kg/h)

Agitator

Type

Impeller Diameter(mm)

Speed(r/min)

Motor

Model

Power(kw)

Explosion Proof Grade

Speed reducer

Piping Table

No.

Dimension

Pressure

Connection Size Standard

Connection Surface Type

Function

a

b

c

d

e

f

g

h

j

k

Other Requirements if any
