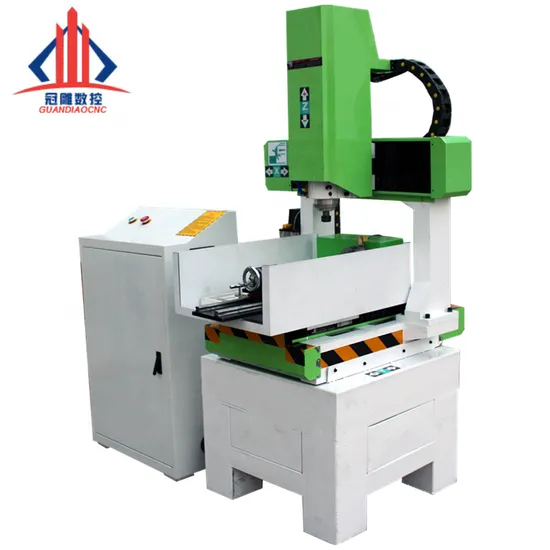

Gd4040 4 Axis Rotary Mini CNC Router Machine/CNC Routing Machine/CNC Engraving Machine

Product Description

Product Description
Jade CNC Router
Brief introduction 1. The machine body is strong, rigid, high precision, reliable and durable.
2. Adopt high-precision Taiwan Hiwin/PMI guide rail, smooth movement, faster speed, higher power.
3. Good three-axis to ensure that the machines longer service life
4. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred.5. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing .6. Compatility, compatible Type3/ Artcam/ Castmate/Wentai, and so on a variety of CAD/CAM design software.
Jade CNC Router technical parameters

Model	GD-4040	GD-6090	GD-6060
X,Y,Z-axis working area	400*400*150mm	600*900*150mm	600*600*150mm
Max. Feeding height	<150mm
Guideway	XY-axis use square guide rails
Driving mode	XYZ-axis use ball screw
Max speed	8000mm/min
Working speed	0-3000mm/min
Compatible Software	TYPE3 software, Artcut software, Artcam software
Max. Power consumption	1.5KW
Mechanical precision	0.04mm/300mm
Driver type	stepper motor and driver
Power source	AC220/50HZ
Spindle	2.2kw water-cooling
Spindle speed	0-24000rpm
Blade diameter	3.175mm, 4mm, 6mm, 8mm,12.7mm
Control system	DSP or NSTUDIO control systerm
Command	G code
3d working dimension	Diameter:0-100mm,length:0-300mm

Jade CNC Router technical application
Applicable materials
Marble, granite, Chaina black, bluestone, jade, ceramics, crystal, glass, plastics, chemical synthesis in organic glass, PVC board, bamboo, aluminum composite panel, metal, plastic and other meterials for line carve, 2D carving, 3D sharp bottom sulpture, 3D relief, cutting, chamfering of edge, cutting and drilling process.
Application
Suitable for stone, tombstone processing, advertising, decoration, arts and crafts industry etc..
Jade CNC Router details
Advertising CNC Router samples
Our Services
1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time. 4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service 5.We accept the ODM,OEM
If you have other needs, please let me know
Packaging & Shipping
Company Information
Jinan Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router , Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
At present, the company's products are sold to major and small cities and regions in China.
The company has independent import and export right, products are exported to southeast Asia, the Middle East, Africa, Europe and the United States and other places, and with its excellent quality, excellent performance and perfect after -sales serves won the customer the consistent approval.
