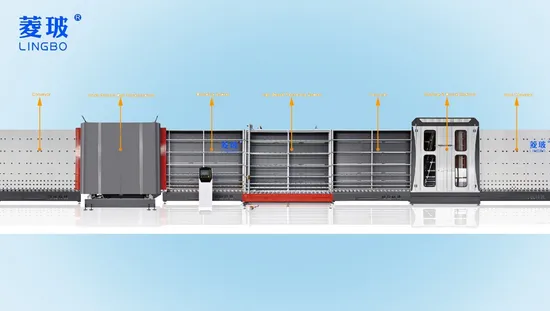

Argon Gas Filling Insulating Glass Line Vertical Glass Machine

Product Description

Product Description
1.Product Introduction of Argon Gas Filling Insulating Glass Line Vertical Glass Machine
Argon gas Insulating Glass Filling Line Machine with Sealing system has the function of Double Glazing Glass automatic transport, washing and drying, high speed positioning, aluminum spacer mounting, high-precision detecting, plate pressing, argon gas automatic filling, and automatic sealing functions etc.
It is the necessary machine for producing high quality insulation glasses and gas filled insulated glass, it has the automatic identifying the Low E glasses or coated glasses.
This complete Argon gas Insulating Glass Filling Line Machine with Sealing system adopts our patent of the device hollow design of the lights, which is conducive to observe the cleanliness of the glass, and can protect the worker's eyes when working for a long time.
According to the automatic detection results, the argon gas filling machine line will choose the suitable filling ways. For big size of more than 2 meters, two filling machine is working, and for smaller size of glass, then only one filling machine is working.
The sealing robot section adopts Japanese YASKAWA controlling system and humanized communication touch screen, which makes it is easy to be controlled, and working stable. So the sealed glasses will be fully saturated and smooth.
It can be working with stepped glass, or three-sided glass, or the three glass with two chambers according to different client requirements.
Product Parameters

2.Technical Parameter for Argon Gas Filling Insulating Glass Line Vertical Glass Machine

Model	Max glass	Min glass	Glass Thickness	Washing speed	Transport glass speed	Insulated glass thickness	Spacing Dimension L*W*H	Gas Filling way	Gas Filling Amount-Average
YH-CQX 2000*2500	2000*2500 mm	300*500 mm	3-12 mm	0-12 m/min	45 m/min	10-48 mm	18.5*2.5*3.05	Inside filling	90%
YH-CQX 2000*3000	2000*3000 mm	300*500 mm	3-12 mm	0-12 m/min	45 m/min	10-48 mm	23.5*2.5*3.05	Inside filling	90%
YH-CQX 2500*3100	2450*3150 mm	300*500 mm	3-12 mm	0-12 m/min	45 m/min	10-48 mm	23.5*2.5*3.55	Inside filling	90%
YH-CQX 2500*4000	2450*3950 mm	300*500 mm	3-12 mm	0-12 m/min	45 m/min	10-48 mm	30.5*2.5*3.55	Inside filling	90%
YH-CQX 2700*4000	2650*3950 mm	300*500 mm	3-12 mm	0-12 m/min	45 m/min	10-48 mm	32*2.5*3.80	Inside filling	90%
Notes: a. if you have special glass size, please note us, we can design the line for you; b. If you have special power supply, please note us earlier as well, we can specially make the line for you.

Our Advantages

3. Why Choose US for Argon Gas Filling Insulating Glass Line Vertical Glass Machine
A.Argon Gas Window Machine is our Patent products, and the reasonable filling way makes the filling result of insulated window glasses high gas utilization rate and high gas filling rate.
B.Strong technical support gives us a strong ability to serve customers. Our company is the Unique high-tech enterprise in Shandong Province in the glass processing industry.
C.Own independent R&D team, especially employing two top field Korean experts, improving the products better and better, fit for the market better.
D.We are having more than twenty patent certificates;
E.Everyday, we will install one complete line in home market, so large customer group give us full communication and feedback, making us get a wealth of industry knowledge and equipment installation experience, which is much better to serve next customers;
F.Having complete after-sales tracking and service team, able to serve our global customers well;
G.Complete protection system for regional distributors to well serve local end customers;
H.7X24 online supports

Detailed Photos

4.Product Configuration Sheet For Argon Gas Filling Insulating Glass Line Vertical Glass Machine

PROJECT NAME	BRAND	COUNTRY of ORIGIN
Programmable PLC	SIEMENS	GERMANY
Frequency converter	SIEMENS	GERMANY
AC contactor	LS	KOREA
Low-E Glass Recognizer	OPTEX	JAPAN
Intermediate relay	HONEYWELL	USA
Breaker	LS	KOREA
Photoelectric Sensor	OMRON	JAPAN
Proximity Sensor	AUTONICS	KOREA
Pneumatic Solenoid valve	AIRTAC	TAIWAN
Pneumatic Cylinder	AIRTAC	TAIWAN
Servo Motor & Servo Driver	SIEMENS	GERMANY
Low-E Glass Recognizer	OPTEX	JAPAN
Argon inflatable switch solenoid valve	AirTAC	TAIWAN
Pressure Switch	SMC	JAPAN
Press machine Ball screw	HIWIN	TAIWAN
linear guide	HIWIN	TAIWAN

Company Profile
5. What is the service can you supply?
1. Machine function introduction and quotation reply within 24 hours.
2.Industrial design or workshop layout design reply within 48 hours.
3.Customization feasibility reply within 72 hours.
4.Engineer onsite installation and operation guide if necessary.
5.Machine operation and maintenance guide service after sells.
6.Supply all the parts of the machine in whole lifetime.
7.PLC control system can be update and repaired in machine's whole lifetime!
8.Spare parts supplied in cost prices for all the clients.
Packaging & Shipping
6. The Packaging and Shipping
After Sales Service
7. What's the guarantee for the machines?
1. Our guarantee for 12 months.
2.24 hour's technical support by email or calling.
3.English manual and video teaching.
4.We will provide the consumable parts at an agency price.
5.24 hours on line service each day, free technical support.
FAQ
8. FAQ
Q: we are first time to hear your brand, Are you NEW to this glass process filed?
A: We are factory built 2014, we have good name in home market, however we just start to open international market.
Q: What is your advantages compared the other supplier?
A: We supply high quality machines with high technology but with lower prices. Because our company goal is to Provide the most cost-effective products for the world.
Q: How about your warranty?
A: The guarantee period shall be 15 months counting from the date of the goods on board, except wear parts. In the normal course of operation and maintenance if there is breakdown and damage, during the Guarantee period (15 months) the repair parts should be supplied by the Seller for free, except wear parts.
Q: What's the payment term?
A: we can accept T/T, L/C, western union etc.
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
