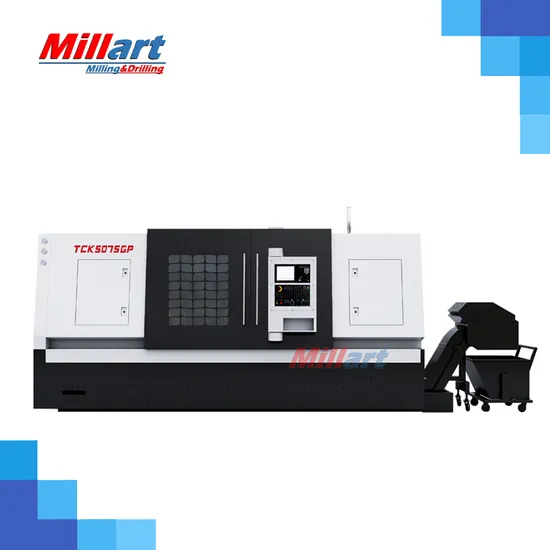

CNC Slant Bed Lathe Machine, Tck600 CNC Lathe Machine, Horizontal Cncn Lathe

Product Description

Product description:
Technical parameter :

Specifications	TCK600
Max.swing over bed (mm)	Φ600
Max.turning diameter (mm)	Φ550
Max.swing over cross slide (mm)	Φ370
Max.turning length (mm)	1000
Spindle nose	A2-8
Chuck size	10"
Spindle motor power (kw)	11-15
Max.spindle speed (rpm)	2500
Spindle bore (mm)	Φ86
Max turning Dia Bar (mm)	Φ74
Bed tilt angle	30°
X/Z axis leadscrew (mm)	40/50
X/Z axis linear guideway (mm)	45/55
X axis limit Travel (mm)	290
Z axis limit Travel (mm)	1180
X/Z axis motor torque (N/m)	22/22
X/Z axis accuracy (mm)	0.008
X/Z axis repeat accuracy (mm)	0.005
Tailstock quill diameter (mm)	100
Tailstock quill travel (mm)	150
Tailstock taper	MT5
Machine dimension (mm)	4400x2000x2450
Weight (kg)	4200/4400

Standard accessories: Fanuc 0i TF Control system
Drive servo motors from Fanuc
Hollow hydraulic 3 jaw chuck from Taiwan
Hydraulic tailstock
12 stations servo hydraulic turret
Chain type chip conveyor
Ball leadscrew from Taiwan
X,Z axis Linear guide way from Taiwan
MPG
Cutting Cooling system
Work lamp
Central auto-lubricating system
Tri-color warning lamp
Heat exchanger in cabinet
Full closed guard
Tools and tool box
Leveling bolts and blocks
Optional accessories: Live center
Air conditioner in cabinet
Schneide eletronic components
12 stations pwer turret from Taiwan
Power head + Radial power head
C axis
Power turret with Y axis from Taiwan
Power turret center water spray
Spindle bearings from NSK
Renishaw tool probe
Renishaw workpiece measurement system
Hydraulic steady rest
Oil skimmer
Part catcher
Bar feeder
Oil mist filter
Hydraulic tailstock programming
Tailstock hydraulic moving (R axis)
Tailstock with leadscrew and linear guideway (R axis)
Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
