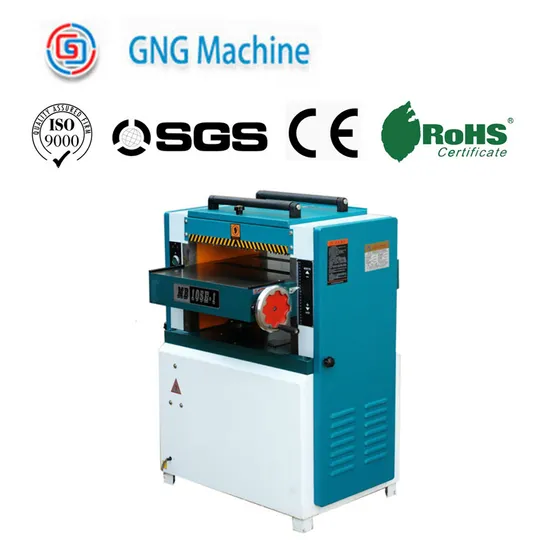

Surface Segmented One Side Woodworking Planer
| US$1,150.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
MB104E
Drivetrain
Feed Drivetrain
Enter Method
Pushing
Motor Power
5-10Kw
Cutter Shaft
4
Spindle Speed
＜5000rpm
Process Type
Light Processing
Certification
CE, ISO
Max. Planning Width
410mm
Planning Thickness
8-180mm
Min. Planning Length
≥ 200mm
Max. Planning Depth
≤ 4mm
Auto Feeding Speed
7, 10m/Min
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China Shandong
HS Code
846592000
Production Capacity
300/Month
Product Description
Min. Order Quantity: 1 Set/SetsSupply Ability: 100 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Bench Planer
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: MB104E-1
Voltage: 380v
Power(W): 4000W
Dimension(L*W*H): 785x780x1190mm
Weight: 330kgs
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in plywood case
Delivery Detail: 30-45days
Specifications
Universal cylindrical grinder. This machine is suitable for grinding external and internal cylinder and cone, and end face
Specifications
Max planing width: 410mm
Max planing amount: 4mm
Spindle speed: 6300-6450rpm
Pressing thicnkess: 8-200mm
Model | MB104E-1 | MB105E-1 | MB106E-1 |
Max. Planning Width | 410mm | 510mm | 610mm |
Planning Thickness | 8-180mm | 8-180mm | 8-180mm |
Min. Planning length | ≥ 200mm | ≥ 200mm | ≥ 200mm |
Max. Planning Depth | ≤ 4mm | ≤ 4mm | ≤ 4mm |
Auto Feeding Speed | 7, 10m/min | 7, 10m/min | 7, 10m/min |
Spindle Speed | 5350-5500r/min | 5350-5500r/min | 4900-5100r/min |
Motor Power | 380v * 4kw | 380v * 4kw | 380v * 5.5kw |
Spindle Cutting Dia | Φ 75mm | Φ 75mm | Φ 75mm |
Overall Dimensions | 785 * 780 * 1110mm | 785 * 880 * 1110mm | 790 * 980 * 1130mm |
Net Weight | 330kg | 370kg | 390kg |
Woodworking single side segment planer is the model can plane the segment timber, it is developed from the traditional wood press planer.
SINGLE SIDE PRESS PLANER FEATURE
1, More detail design to enhance product performance.
2, The body is with heavy-duty steel and with special heat treatment process, better stability and lower noise.
3,The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicato
We provide more models of woodworking thicknesser planers,The workbench can be lifted by manual or electric. The double sides thicknesser planers are best sales, high speed feeding thicknesser planer, heavy duty thciknesser planer.
IF ANY QUESTIONS, PLS FEEL FREE TO CONTACT WITH ME.
