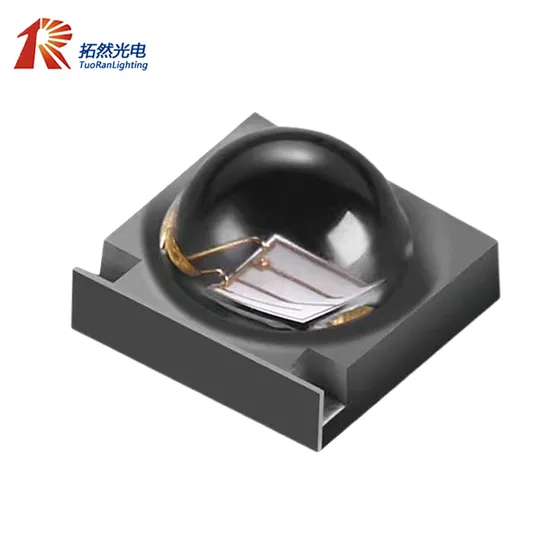

SMD 3838 High Power UVA 3W 60 Degree 90 Degree 380nm 390nm 400nm UV LED Chip

Product Description

SMD 3838 High Power UVA 3W 60 Degree 90 Degree 380nm 390nm 400nm UV LED Chip
Product Description
Product Parameters

Model	Power	Current	Voltage	Size	Lens	Lens angle	Material
TR-UV3838	2.6W	700mA	3.7V	3.8*3.8*1.0mm	Quartz lens	45°, 60°	Ceramic substrate

Product features:
1. Imported chips: Taiwan Optical UV LED chips are used.
2. Ceramic substrate: multi-layer monolithic, high thermal conductivity, high insulation, high-temperature multilayer co fired aluminum helium ceramic substrate
3.Yes Core process: adopt high-temperature bonding nano silver paste crystallization process, with ultra-low thermal resistance [2.890/W]
4. Ultra long service life: The service life of UV LED is generally 25000-30000/h, 10 times that of traditional mercury lamp curing machine
More than 90% energy saving.
The service life is not affected by the opening and closing times.
5. High efficiency and energy saving: UV LED light conversion rate is up to 40%, light output is stable, energy consumption is low, and power consumption is only traditional mercury lamp
10% of the curing machine.
6. Safety and environmental protection: UV LED is driven by DC low voltage, without mercury, ozone, environmental pollution and cold light
Source, no thermal radiation,
Low carbon and environmental protection is a safer and environmentally friendly alternative to traditional light source technology.
7.Yes Instantly lit: UV LED reaches 100% power UV output immediately without preheating
8. The maintenance cost is almost zero, and the use of UVLED curing equipment saves at least 10000 yuan/set of consumables per year.
Application Related Products For more products, please click this link.
Company Profile Our factory introduces the most advanced machinery and equipment in the world at present, including advanced automatic production line and production technology, dust-free and anti-static workshop, superior performance testing equipment, etc., from fixed chip, welding line, potting, spectral color separation, packaging, inspection are automated in one step. Our products mainly include all kinds of light emitting diode (Lamp LED, Chip LED, TOP LED, etc. ), and can be widely used in electronic display screens, indicator lights, indoor and outdoor lighting and mobile phone backlight and other fields.
Certifications

FAQ Q1. Can I have a sample order of led lamp?
A: Yes, we welcome sample orders to test and check the quality. Mixed samples are acceptable.
Q2. How about the delivery cycle?
A: It takes 3-5 days for samples and 1-2 weeks for batch production.
Q3. How do I order LED lights?
A: First let us know your request or application.
Secondly, we will quote according to your requirements or suggestions.
Third, the customer confirms the sample and pays the deposit for the formal order.
Fourth, we arrange production.
Q4: Do you guarantee the products?
A: Yes, we provide 1 year warranty for our products.
