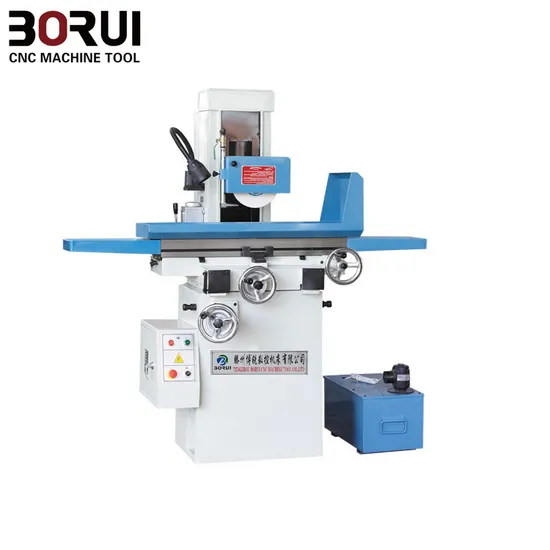

Manual Surface Grinding Machine (M820) with Easy Operation and High Quality

Product Description

Manual Surface Grinding Machine (M820) with Easy Operation and High Quality
Product Application
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
The main specification:

Model				M820
Working table	Table Size (L× W)		mm	480×200
	Max movement of working table(L× W)		mm	530×220
	T -Slot number×width		mm	1×14
Grinding head	Max distance from spindle center to table surface		mm	440
	Wheel Size(Outer diameter×width×Inner diameter)		mm	φ200×20×Φ31.75
	Wheel speed	50HZ	r/min	2850
		60HZ		3440
Feed amount	Vertical feed on handwheel	Per revolution	mm	2.5
		Per graduation	mm	0.02
	Cross feed on handwheel	Per revolution	mm	1.25
		Per graduation	mm	0.01
Motor power	Spindle motor		kw	1.1
	Coolant pump motor		w	40
Working precision	The parallelism of working surface to base level		mm	300:0.005
	Surface roughness		μm	Ra0.32
Weight	Net		kg	750
	Gross		kg	850
Overall dimension(L×W×H)			mm	1680x1140x1760
Package dimension(L×W×H)			mm	1140x1250x1940

The main performance characteristics:
1. the Small Surface Grinding Machine Adopt the exceeding precise class7(P4 level) ball bearing for spindle.
2. theSmall Surface Grinding Machine Bring transmission by synchronous belt, operating simple and convenient
Product Dtails
