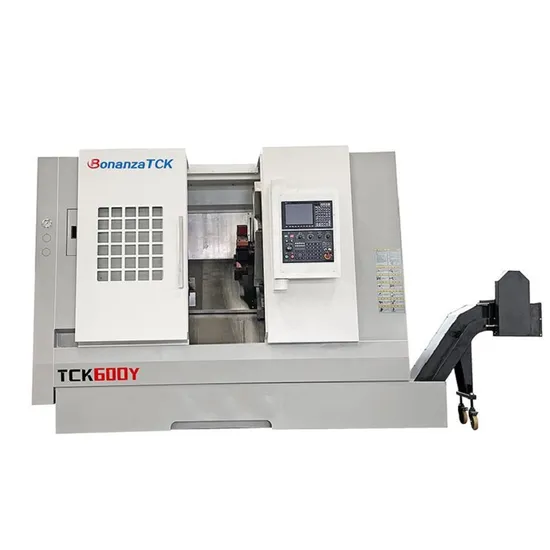

CNC Slant Bed Turning and Milling Compound Machine Tck600y

Product Description

CNC Slant Bed Turning and Milling Tck600y Turning and Milling Compound Machine Tool
Product Description
1. BMT55 high-power turret
2. Hard rail Y-axis, greatly ensuring rigidity
3.30 kW electric spindle, high C-axis indexing positioning, 5.5 kW independent motor

Product Parameters

Project			Units	Specifications		Remarks
Maximum turning diameter on bed			mm	600
Maximum cutting length			mm	500
Maximum cutting diameter			mm	460
Standard cutting diameter			mm	340
Maximum turning diameter on a skateboard			mm	400
Spindle end type and code				A2-6		Motorized spindle
Main shaft hole diameter			mm	65
Pass bar diameter			mm	50
Single spindle Headstock	Spindle speed range / Maximum output torque of spindle		r/min/Nm	50 ~ 4500/144
Spindle driver			Power	30KW
Standard chuck	Chuck diameter		inch	8 "hollow hydraulic chuck
X-axis fast shift speed			m/min	30
Z-axis fast shift speed			m/min	30
X-axis travel			mm	280
Z-axis stroke			mm	550
Y-axis stroke			mm	50 + / - 50
C-axis stroke			mm	360 °
Standard knife holder form			BMT55	Horizontal 12 station power cutter tower
Tailstock travel			mm	450
Tailstock spindle cone hole taper			Mohs	4# (small spindle)
Turning knife	Outer round knife holder		mm	25 x 25

Detailed Photos

Programmable hydraulic tailstock 1. Standard with hydraulic tailstock 2. Can choose Programmable tailstock driven by servo motor

With Y-axis servo powered turret 1. Standard: Horizontal 12''inch servo powered turret 2. With Y axis, maximum stroke 250mm, wider milling range 3.Power head motor 5.5~7.5KW with stronger milling capability

Electric spindle spindle box 1,Has better dynamic accuracy and stability 2,High precision, long life and high efficiency

Programmable hydraulic tailstock 1. Standard with hydraulic tailstock 2. Can choose Programmable tailstock driven by servo motor

Company Profile
Certifications
Packaging & Shipping
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems.
