Fully Automatic Woodworking Heavy Duty Diesel Hydraulic Horizontal Band Sawmill Machine

Product Description

Product Description

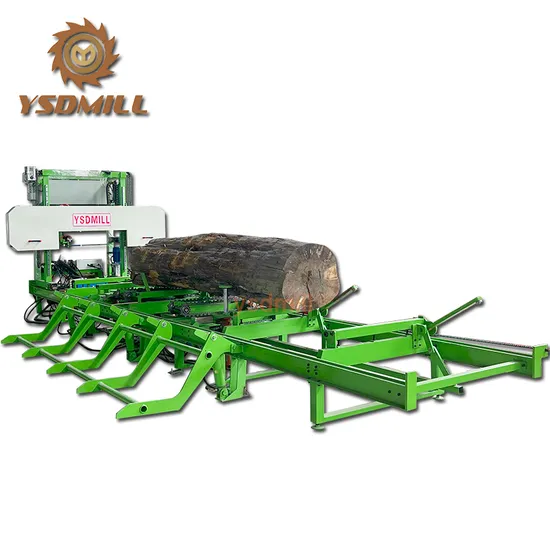

Automatic Hydraulic Horizontal Sawmill is the latest large-scale horizontal band saw machine developed by YSDMILL. This equipment can cut logs with larger diameters. Equipped with an automatic feeding system. Automatic locking, automatic turning, and automatic walking. Hydraulic power device, fast response, strong power.
The company's pre-sales service and after-sales service are serious and responsible, and it can patiently solve all customers' problems about machines, so as to ensure that the machines can be used by customers to complete every job with high quality.

Model	YMJ25-800	YMJ32-1000	YMJ40-1300
Max sawing dia	800mm	1000mm	1300mm
Saw wheel dia	630mm	800mm(32inch)	1000mm(40inch)
Max sawing length	4000mm	4000mm	4000mm
Saw blade width	50mm	80mm	100mm
Saw head power	18.5kw	22kw	37kw
Saw blade tension	Automatic / Manual	Automatic / Manual	Automatic / Manual
Max cutting thickness	200mm	240mm	240mm
Saw head up/down	Electric motor	Electric motor	Electric motor
Saw head walking	Electric motor	Electric motor	Electric motor
Log loading	Automatic / Manual	Automatic / Manual	Automatic / Manual
Log turning	optional	optional	optional
Log locking	optional	optional	optional
Log leveling	optional	optional	optional
Hydraulic power	5.5 kw	5.5 kw	7.5 kw
Voltage	380V/50HZ/3phase	380V/50HZ/3phase	380V/50HZ/3phase
Length of track	6 Meter	6 Meter	6 Meter
Weight	2000kgs	2400kgs	2700kgs

It is suitable for large-scale production in sawmills, and is widely used in large-scale wood processing in virgin forest areas.

Carbide saw blade for smooth and precision cutting.

Customization is supported, and the machine can be customized according to the diameter and length of customer's wood.

Cast-iron headblocks with Hydraulic / pneumatic cylinder for tight log locking.

Moveable headblocks is optional.

Stronger log locking hook.

The products are of high quality and good price, and at the same price, our machines have more advantages in quality.
Automatic Log loading Touch screen with joy stick for saw head control
Automatic log turning Automatic log locking
High quality motor, stronger power, longer service life Hydraulic power
saw blade cooling system Automatic fuel injection device
Packing & Delivery
Company Profile
FAQ

Q: Are you a trading company or a manufacturer?
A: We are manufacturer.

Q: What types of woodworking machinery does YSDMILL offer?
A: YSDMILL offers a comprehensive range of woodworking machinery, including woodworking band-sawing machines, woodworking log carriages, and other auxiliary equipment.

Q: Does YSDMILL offer custom-made solutions for wood processing?
A: Yes, absolutely! We understand that every woodworking project is unique, and we take pride in providing personalized wood processing line solutions tailored to meet your specific requirements.

Q: How to know which model is suit for our request?
A: Send us the length and diameter specification of your wood, then we will recommend you the suitable machine.

Q: How about your delivery time?
A: For our standard vertical/horizontal band saw, we have it in stock. For the customized sawmill equipment we need 10-30days to production.

Q: How does YSDMILL handle after-sales service and support?
A: We are committed to customer satisfaction and offer comprehensive after-sales support. Our team provides installation assistance, maintenance services, and readily available spare parts to ensure the smooth operation of our machinery.
