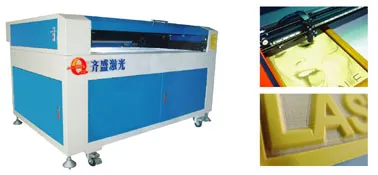

Versatile Laser Cutter for Cloth, Fabric, and Material Projects

Product Description

Laser Cutting BedTechnical Specifications
Item / Model ALK-1121
Cutting area 1100 x 2100mm
Laser power 80W
Laser type CO2 Laser tube
Engraving speed 0 - 1, 000mm/min
Resetting positioning accuracy _+0.01mm
Power supply 220V /50Hz 110V/60Hz
Operating temperature 0 - 45
Operating humidity 5 - 95%
Min. Shaping character English 1 x 1mm
Graphic format supported BMP, PLT, DST, DXF, AI
Software supported Tajima, CorelDraw, PhotoShop, AutoCAD
Driving system Stepper
Cooling mode Water-cooling and protection system
Equipment Dimensions 2680x2300x1120mm
Net Weight: 1250kg
Shipping Dimensions 2780x2400x1300mm
Optional Spare Parts Up-down clump, Rotary System, Honeycomb table
Recommended Spare Parts Laser Tube and Lens
Application Field
Applicable materials: Non-metal materials such as wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic and other
Applicable industries: Ganments sampling, large width tailoring, leather, shoemaking, decoration,
Furniture, advertisement, packing and printing, molding and art craft industries
Features:
1. Integration of photographic, mechanic and electric technologies, giving more stable performance.
2. Great processing precision, maximum tolerance at 0.05mm.
3. Extremely high engraving speed, 1000/s.
4. The leading technology of uninterrupted and fast curve cutting: With standard model at 60/s and advanced model at 300/s.
5. Optimized function of selecting shortest path, greatly improving working efficiency.
6. Customer optional cooling water machine for laser tube, greatly prolonging the working life of the tube and bettering engraving effect.
7. Imported big-diameter galvanized silicon reflection mirror of 10.6um length wave and ZnSe focus lens provide slighter light wane and finer focus.
8. Seamlessly compatible to such image processing softwares as AutoCAD, CorelDRAW, and, Wenti, giving output of original photos.
9. Support hand any drawn curves of AutoCAD.
10. Support files of various formats such as BMP, PLT, DXF, GIF and AI for image processing.
11. Advanced color management, supporting the combination of any colors, engraving in freely defined sequence, partial or total output in one time.
12. Perfect grade and grayness engraving.
