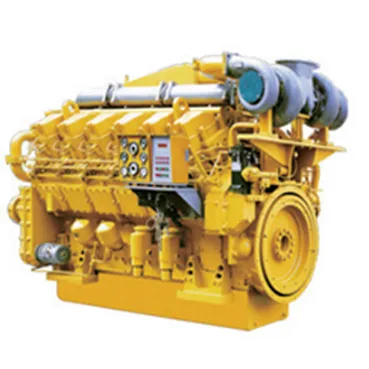

Diesel Engine A12V190pzl-1 1000kw Engine with Jichai Brand for F1600 Pump

Product Description

Product Description
The series 3000 diesel engine is a new generation of diesel developed by Jichai to meet the needs of the growing oil industry and improve the advancee and reliable drilling equipment in China. This type of diesel engine is developed on the basis of the Jichai 6000 series diesel engine and adopts foreign diesel engine advanced structure and technology. The dynamic and economic indicators have been greatly improved, and the main performance indicators have reached or are close to the current international advanced level.
The 3000 series of land diesel engines can meet the power demand of mechanical drilling rigs and electric drilling rigs from 4000 to 7000 meters. It can be assembled with the torque converter and coupling on the same chassis to drive drilling rig or mud pump. It can also be used to match single and double bearing generators to form a power station as well as power for fire pumpps and flood pumps.
The B3000 series diesel engine formed is based on the original 30000 series, and has been greatly improved and refined around improving the reliability, economy and automation control level of the diesel engine, resolving the three leaks, improving the appearance quality and facilitating maintenance.
The model can be widely used in small and medium-sized self-contained electric stations, oil drilling, industrial and mining locomotives package, ship hosts and large ship auxiliary engines etc.
Typical product technical specification

Model	Basic type
	A12V190ZL	A12V190ZL1-1	A12V190ZL1-2	A12V190ZL1-3	A12V190ZL2	A12V190ZLD2
Type	Four stroke, water-cooled, turbocharged intercooled, direct injection combustion chamber
No and arrangement of cylinders	12 cylinder, 60°V type
Cylinder bore mm	190
Piston stroke mm	215
Standby power kW	1200	1000	900	1100	1320	1360
Standby speed r/min	1500	1200	1000	1300	1500	1500
Normal power kW	1080	900	810	990	1200	1235
Normal speed r/min	1500	1200	1000	1300	1500	1500
Total piston displacement L	73.15
Fuel consumption g/kW.h	<=205				<=202
Oil consumption kW.h	<=1.0g
Exhaust remperature (turbine before ºC)	<=650
Outlet water temperature ºC	<=90
Oil temperature ºC	<=95
Stabilized speed droop (%)	<=5
Cooling mode	Forced water cooling
Combustion air flow rate kg/s	2.45	1.96	1.84	2.23	2.7	2.8
Exhaust flow rate m3/h	21516	16793	15113	18313	21839	22956
Oil sump capacity L	200				270
High temperature water capacity L	130				130
Low temperature water capacity L	40				40
Starting mode	Air or electic motor starting
Lubricating mode	Pressure and splash lubrication
Crankshaft rotation	Counterclockwise (facing flywheel)
Overall dimension mm	2950*1980*2206				2950*2280*2069
Net weight kg	9300				9300

FAQ1.What is your warranty period?
Our warranty period is 1 year or 1200 working hours , whichever comes first(excluding damage to generator set spare parts due to incorrect manual operation)
2.Is your products the lowest price?
The price is based on the quality level and the order quantity.
We have different quality level products for buyers option.
3.What's your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery time will be shortened as needed. If you have special requirements , the delivery time will be longer.
4.Can machines be customized?
Yes. Our machines can be customized according to the specific requirements of customers.
5.What are your terms of payment?
T/T 30% as deposit , 70% before delivery. Before you pay, we will show you pictures of the products and packaging.
