Good Technical Support Metal Plate Drill CNC Gantry Drilling Machine

Product Description

Good Technical Support Metal Plate Drill CNC Drilling Machine
Product Description

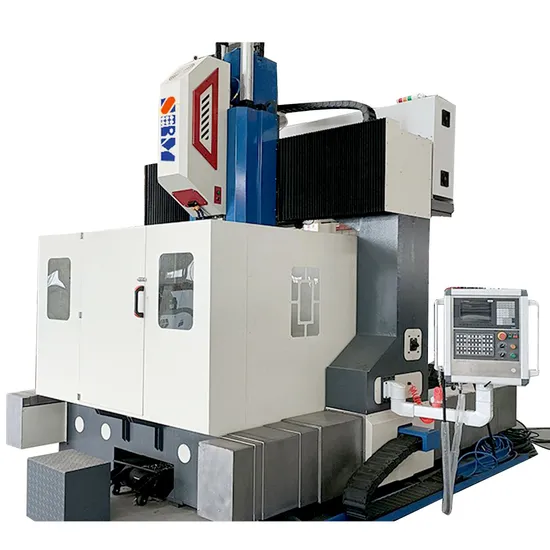

The PHD series is a gantry moving CNC high-speed drilling and milling machine, mainly used for drilling, shaving, chamfering, grooves inside holes and milling of flanges, heat exchangers, tubeplates, rotary supports and other workpieces. It can be used for internal cold high-speed drilling with hard alloy drill bit or external cold drilling with high speed steel twist drill bit. Drilling depth of 10D (10x diameter) can be achieved with special crown drill bit. The machining process is NC and easy to operate. It can realize automatic, high precision and many kinds of mass production.
CONSISTS OF THE BELOW ITEMS
Machine Body
Working table
Moving Gantry
Vertical sliding pillow type power head
Hydraulic system
Pneumatic system
Cooling system
Centralized lubrication system
Electrical control system
Automatic chip removal system
THE PRODUCT STRUCTURE FEATURES
This machine is mainly composed of bed,gantry,drilling and milling power head,electric control system,centralized lubrication system,cooling system and chips removal system etc.
1.Double side lead screw synchronous driving system,stable performance,flexible movement,accurate positioning.
2. Adopting slide head drilling and milling power head,it can realize the automatic conversion of fast forward,drillng and quick return,and has the function of automatic chip breaking.
3.Adopt Taiwan BT40 high speed internal cooling precision spindle,can adopt hard alloy internal cold drill bit,processing efficiency is very high.
4.Equipped with pneumatic knife cylinder automatic knife replacement,optional tool magazine.5.SIEMENS 808D CNC + servo motor control,can directly transfer Auto CAD drawings to general processing program. 6.Automatic chip removal,cooling liquid recycling.
Product Parameters

Model		PHD1010	PHD1616	PHD2016	PHD2020	PHD3016
Processing Range	L×W (mm)	1000x1000	1600×1600	2000×1600	2000×2000	3000X1600
	Thicknes(mm)	15-100
Sliding Feeding Spindle	Number of spindle	1
	Spindle model	BT40/BT50
	Spindlespeed(r/min)	30-4500
	Feed stroke(mm)	260
	Tapping diameter(mm)	M20
Motor power (KW)	Spindle servo motor	7.5 /11
	X	2×2.3
	Y	2.3
	Z	2.3
positioning accuracy(mm)		0.1
Repeatable positioning accuracy(mm)		0.08
Control mode		SIEMENS 808D CNC system /PLC+ upper computer

Detailed Photos
WORKSHOP
WORKPIECE
HOT SELLING DRILLING MACHINE
Packaging & Shipping

Our Advantages
Professional Technical Team: We own a professional technical team who devote to the advanced design on the machines and better performance with plenty experience more than 15 years.
Various Patents: we have been got many patents on various models of our products these years and keep on developing new products.
High Products Quality:We have been gained a lot of good reputation among our customers and never got any quality complaint until now
Professional Experienced Sales Team:
Our sales team have average 10 years ' experience in export process, they are qualified to provide the most reasonable proposal for you and resolve your problems on machines selection and usage immediately once you ask.
