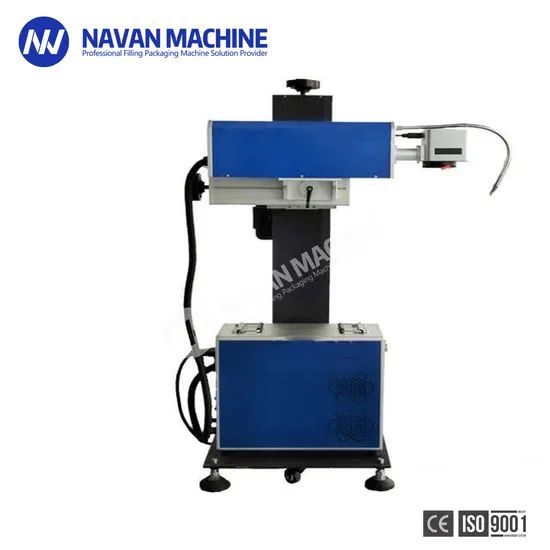

Professional CO2 Code Printer Laser Marking Machine Laser Printer for Beverage Industrial

Product Description

NAVAN Professional CO2 Code Printer Laser Marking Machine Laser Printer For Beverage Industrial

Suitable for all kinds of non-metallic materials, such as paper, PVC, rubber, wood, glass, ceramic, plastic, PET, HDPE, leather,PCB board, etc.Widely used in medicine, personal care products, tobacco, food and beverage packaging, wine, dairy products,clothing accessories, leather, electronic components, chemical and building materials products and other fields of production and expiration date, batch number, shift, factory name and logo and other graphics and text marking.
Product Description
NAVAN CO2 Code Printer Laser Marking Machine Laser Printer 1. Adopt high quality CO2 laser, stable energy output, clear and beautiful jet coding effect.
2. Powerful software, multi-language support, simple operation, stable performance.
3. pipeline structure design, compact size, flexible installation, automatic work, save labor costs.
4.The whole machine is air-cooled, no consumables, no pollution, no maintenance, long service life, the machine is safe, stable and efficient.
High speed vibroscope system. Rotate the rocker arm column. High precision scale. 1.High scanning accuracy 1. Stainless steel screw 1.High performance scale 2.Sensitive response 2. Rugged engineered plastic handle 2.Marking effect is more exquisite 3.Shockproof design 3. Aluminum alloy column 3.Making calibration position accurate 4.Sccurate focusing 4. Accurate and firm positioning Computer control system. The computer control system includes a computer and a digital vibrator card, which drives the optical system components to act
according to the parameters set by the marking control software and sends out pulse laser, so as to etch the content to be marked
on the surface of the processed objects accurately. The optical system. The optical system includes a laser, a vibrator scanning system and a focusing lens.Laser output of the laser beam in the galvanometer scanning system reflect a group of lens, lens, respectively, the two pieces can deflection clamping precision inspection flow in two motor (high-speed galvanometer), when the galvanometer is driven by voltage signal action occurs, driven in two reflective lenses, realize the laser beam deflection, deflection after laser irradiation on the processed objects of different position. The machine features. Compact appearance and small volume, no need of huge water cooling system, just general air cooling can be. Function: prolong the life of laser, protect the safety of laser. Product Parameters

Laser Power	20W/30W/50W/100W NAVAN CO2 Code Printer Laser Marking Machine Laser Printer
Wavelength	10.6μm/9.3μm
Rated Power	≤800W
Marking Area	70mm*70mm Optional
Cooling Way	Air cooling
Min. Character	≤0.2mm
Min. Line Width	≥0.1
Marking Speed	≤7000mm/s
Machine size	800mm*520mm*1410mm
Net Weight	75KG
Power Demand	220V±10/50HZ/60HZ

Company Profile
Navan machines Navan Industrial has invested its best resources in technical research, to design and realize innovative in bottle blowing, filling, capping , labeling and packing systems which enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years .
At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development.
Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response. Navan machines are utilized in large and small companies all around the world since 1990s.
Massive experience gained through the years of water, juice , soft drink , beer, honeys, sauces etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.
Customers
Navan Service
The sample service
1.We can send you the video of the running machine for your reference .
2.You are always welcome to come to visit our factory, and watch the operation of the machines here . We will make the arrangement to pick you up when you reach airport or railway station .
3.If we get the permission of the customer who has brought the machines from us ,we will arrange your visiting to their factory.

Customized service
1.we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2.At the same time we will give you our professional suggestion on factory design , bottle design , label design .... etc

After-sales service
1.We will provide the B/L and concerning Invoice , Packing List , Certificate .... on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions , we will send our engineer to your factory for the installation, testing and also training .
3.We provide one year warranty with spare parts free since machine installation done .
NAVAN supply and manufacture the followings machines
1) Water treatment equipment--- Electrolytic water equipment, RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner, Sea Water treatment.
2) Filling Machine --- 2 in 1 Filling Capping Machine / 3 in 1 Washing filling capping machine / 4 in 1 Washing filling capping machine / 5 in 1 Washing filling capping machine ---for your water, beer , kombucha , Kvass , cabonated drink,juice,wine,vinegar, milk,tea and so on.
--- 100 to 2500ml bottle, 3-10L,11- 20L bottle (3-6gallon bottle)
--- PET bottle, Glass bottle, PP bottle and Can
--- Pressure Cap , Screw cap, Aluminum cap, Grown Cap , T-cork , Wooden Cork and three (four) twist caps etc.
3) Labeling Machine --- Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label
4) Printer --- Manual code printer , Inkjet printer , Laser printer
5) Packing Machine ---- Shrink wrapper , Carton Packer , Palletizer , Conveyor system , Robot Packing System
6) Bottle Blowing Machine --- Linear and Rotary Blowing Machine for making plastic bottle
7)Injection Molding Machine --- for your cap and proform.
8) Subsidiary products for drink production --- Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.
NAVAN will supply you bottle design, label design, workshop design free and make Turnkey Project for you.
Don't hesitate to contact us if you show interesting on our beverage production machine and our NAVAN company Certifications
FAQ
Q1 : What is the warranty period?
We provide 12 months warranty for all spare parts. (exclude fragile parts).
Q2 : How do you control the quality?
1) All NAVAN machines are in strict accordance with the ISO quality and CE system requirements.
2) Each procedure is crafted by professional Skilled labour, followed by particular QC
3) All information of our products can be checked in efficient management system.
Q3 : What certifications do you have?
All our products are CE and ISO9001 certified. Numerous design and innovation patent for all our current models and spare parts. Such as the innovation patent squeegee design.
Q4 : What kind of service do you provide?
Before sales: Provide product information, market research forecasting, product customization, product processing, consultation and other services for your convenience.
After sales: 1. Technical training on according to customer requirements; 2. We promise replacement under warranty; 3. We promise to supply the maintenance spare parts; 4. Regular call back or visit customers; 5. On time response to mail and phone calls of your complaints or consultation.
Q5 : Are you a factory or a trading company, where are you located?
We are factory , just 150km(1.5hour by car) away from Shanghai Airport. We offer pickup service at Shanghai for your visit.

We Warmly Welcome Customers All Over The World To Our Company. ANY DEMANDS OR REQUEST ,Please Contract With Us FREELY!

ZHANGJIAGANG NAVAN INDUSTRIAL CO.,LTD
