Mini Excavator with Hammer Breaker

Product Description

MAIN PARAMETERS
Emission Standard	Euro 5,EPA4
Make /Model	KUBOTA/D1703
Power /Rotation speed	18.5kw(25HP)@2200rpm
Number of cyinder	3
Type	In-line,water cooled,4-stroke,mechanical pump,normally aspirated
Max.torque
Displacement	97.4N.m/1500rpm1.642L
TRACK DRINING SYSTEM
Maximum Travel speed(High/low)	4.4/2.4km/h
Width ofsteel track shoe	300mm
Carrier roller(Each side)	1
Supporting roller(Each side)	4
PERFORMANCE PARAMETER
Standard Budketcapacity	0.12m3
Swing speed	12rpm
Maximum Gradeability	58%(30°)
Ground pressure	32Kpa
Maximum Bucket digging force	30.4KN
Maximum Arm digging force	18.2KN
Hydraulic system pressure	22.5Mpe
Machineweight	3810kg
Boom length	2535mm
Arm length	1400mm
Fuel tank capacity	40L
Hydraulic oil tankcapacity	44L
Engine oil capacity	7L
Radiator capacity	3.8L
Final drive	2*0.7L
MIA CHINE SIZE
Overall dimension (L*W*H)	4915mm*1720mm*2525mm
Axle base(Track length on ground)	1670mm
Length of rubber track	2154mm
Track gauge	142.0mm
Minimum Ground clearance	295mm
Swing radius at tail	860mm
Swing radius at front	2538mm
Height of blade	350mm
WORKING RANGE
Maximum Digging height	4800mm
Maximum Dumping height	3406mm
Maximum Digging depth	3208mm
Maximum Vertical digging depth	2957mm
Maximum Digging distance	5480mm
Maximum digging distance (on ground)	5359mm
Minimum swing radius	2530mm
Max.height when min.swing radius	3655mm
Maximum Lifting height of blade	365mm
Maximum Cutting depth of blade	385mm
Boom swing angle(Left/Right)	55°/65°

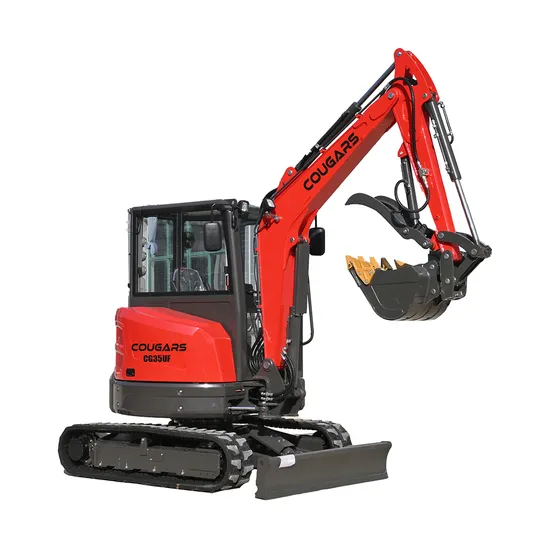

COUGARS 3800KGS Mini Crawler Excavator Experience the unparalleled power and outstanding efficiency of the remarkable COUGARS 3800KGS Mini Crawler Excavator. This engineering marvel is meticulously crafted to conquer the most demanding tasks with utmost ease. With its robust quality components and intelligent design, it promises exceptional performance on every job.
Boasting a steadfast Kubota diesel engine, the COUGARS excavator ensures seamless operation paired with powerful hydraulics. Its versatile 3.5T size makes it the quintessential all-rounder, delivering superior breakout force and impressive digging power, while remaining effortlessly portable for easy transport across various job sites.
Renowned for delivering exceptional performance and superb value, the COUGARS range of excavators stands out. Featuring an impressive 10kN excavating force and a standard 400mm bucket, this machine is primed and ready to tackle any challenge you throw its way.
Operating the COUGARS 3800KGS Mini Crawler Excavator is remarkably straightforward, courtesy of its intuitive joystick and lever controls. Constructed from heavy-duty steel with precision CNC laser-cut accuracy, this excavator ensures long-lasting durability and reliability.
This versatile excavator offers full functionality, including traverse, swing, boom swing, and dig operations. It is compatible with a broad array of attachments such as augers, rock breakers, and grapples, enhancing its adaptability for various tasks.
Enjoy peace of mind with the simple key start ignition system and a reassuring 1-year warranty. COUGARS Machinery dedicates itself to providing exceptional quality at an affordable price point, making their excavators an ideal choice for both commercial tradespeople and small property owners alike.
Powered by a Kubota water-cooled diesel engine, the COUGARS 3800KGS Mini Crawler Excavator guarantees outstanding performance and remarkable fuel efficiency. This makes it a smart investment for small to medium-sized businesses aiming to optimize their return on investment.
The COUGARS 3800KGS Mini Crawler Excavator distinguishes itself with its high specifications and premium quality components. An upgraded heavy-duty hydraulic oil pump extends operational life, while genuine USA Eaton drive and swing motors offer smooth and precise control.
Equipped with hydraulic control valves for smooth operation and featuring joystick controls alongside a full weather cabin, the COUGARS excavator provides a comfortable and enjoyable operating experience.
Built to stringent specifications, the COUGARS 3800KGS Mini Crawler Excavator boasts CNC laser-cut steel sections for unmatched accuracy and strength. Its proven design ensures reliability and performance, making it the perfect solution for any job.

Expand your excavator's functionality with a selection of premium attachments and accessories. COUGARS® excavators feature a quick coupling system, allowing easy interchange of attachments based on job requirements. With options to purchase or rent additional attachments, you can continuously enhance your machine's capabilities.
Every machine is equipped with a standard 400mm bucket, providing a strong foundation for all your excavating needs. For specialized applications, a variety of optional attachments are available to enhance functionality.
Buckets for Trenching and Bulk Materials Movement
The Series 35 machines support a versatile range of bucket sizes, ensuring efficient trenching and bulk materials movement for diverse project needs.
Ripper Attachment
Effortlessly loosen hard ground and penetrate tough tree roots with the ripper attachment. Constructed with a hardened steel ripper tip and reinforced with robust steel plates, it assures durability and reliability for even the most challenging tasks. Augers for Digging Holes Equip your excavator with an auger drive to quickly and effectively dig holes for various applications, such as tree planting, foundation digging, and post installation.
Rock Breaker Easily break large rocks into manageable pieces with the rock breaker attachment. This versatile tool is also designed to demolish old concrete driveways and footpaths, making them easier to lift and remove. The rock breaker connects effortlessly through the quick coupling at the hitch, utilizing the auxiliary hydraulic connections. Actuating Grapple
Discover the unmatched versatility of the actuating grapple attachment, an ingenious 4-in-1 solution for your excavator needs. Masterfully designed, it empowers you to grip, lift, roll, and meticulously position objects with precision. Especially suited for the demanding tasks of forestry work, this attachment is your go-to for effortlessly clearing brush, lifting hefty logs, and adeptly managing branches. While attaching the grapple requires a conscientious effort due to its operational reliance on the excavator's ram, the satisfaction of its exceptional performance is worth the investment in time. It necessitates the manual adjustment of pins rather than utilizing the convenience of a quick hitch connection, ensuring a secure and reliable attachment every time. Excavator Rake
Transform your excavator into an efficient green waste management tool with the robust rake attachment. This indispensable accessory excels at gathering and arranging green waste, whether your goal is to create orderly piles for decomposition or prepare for burning. Its prowess doesn't end there; it is exceptionally effective at eradicating problematic vegetation like lantana, making it an essential piece of equipment for maintaining pristine landscapes and gardens. In the world of machinery, settling for anything less than excellence is never an option. At COUGARS, we embody this philosophy by crafting excavators that are synonymous with durability and resilience. Built to withstand the test of time, each machine is engineered from the finest materials, ensuring an investment that lasts a lifetime. Choose COUGARS and experience a legacy of unwavering quality and performance.
Unlock the full potential of your excavation projects with the COUGARS 3800KGS Mini Crawler Excavator, tailored specifically for the demanding landscapes of the USA. This powerhouse combines compact efficiency with the reliability of a Kubota engine, offering an expansive array of attachments to meet diverse excavation requirements. It's the quintessential choice for those who seek extraordinary power packaged in a compact form, delivering unparalleled performance and adaptability to any challenge you face.
