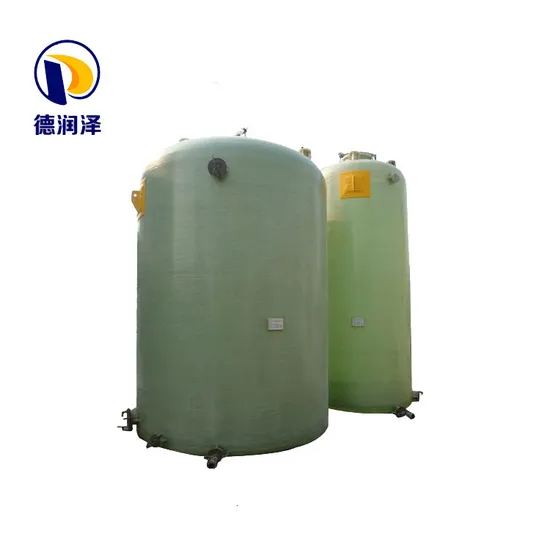

High Quality Corrosion Resistant Vertical FRP Chemical Storage Tank

Product Description

frp pipe production line,grp pipe diameter 1200mm machine

Product Description
QFW-2500VI main specifications:
1. Installed capacity: 193.6KW 2. The largest diameter of the production pipe: Φ2500mm 3. effective length of the production pipeline: 12000mm 4. production capacity: 1000kg / h 5. curing station heating device temperature: 105 ºC -160 ºC 6. maximum speed: 90m / min 7. The maximum width of yarn sheet: 200mm 8. Yarn feeding speed: 100kg / min 9. Nominal release force: 83t 10. Winch rated pulling force: 5t 11. Trolley Rated Torque Weight: 40t 12. Hydraulic Pump Station Rated working pressure: 16MPa 13. Stripping machine center height: 2000mm 14. Other stand-alone center height: 1500mm
FW-4000III main specifications:
1. Winding diameter range: Φ600-Φ4000mm 2. The maximum winding length: 12m
3. Winding angle: 45 ° -90 °
4. Installed capacity: 9.2KW
5. Positioning error: <1mm
6. The maximum width of yarn: 150mm
7. Production capacity: 500kg / h
FRP tank winding machine
Computer-controlled vertical winding machine is the most advanced ultra-large diameter winding machine developed by our company on the basis of absorbing foreign advanced technology. The machine is controlled by microcomputer and is especially suitable for on-site winding of large-diameter glass fiber reinforced plastic storage tank. Using the appropriate mandrel, the machine can be wound 4 meters to 25 meters of FRP storage tank. The control center of this machine adopts the PC industrial computer which is produced in Taiwan of China and inputs the parameters of the winding product. The microcomputer can automatically design the winding pattern of the product and then control the composite movement of the mandrel rotation and the up-down movement of the car, Resin fibers evenly distributed regularly in the product liners. The winding machine is a combination of technology and science, such as the rotation of the mandrel, the car moves up and down, winding tape laying, etc. are controlled by the software through the computer. The machine winding glass steel products, widely used in chemical, petroleum, brewing and other fields. The aircraft is reasonable in structure, innovative design, easy operation, reasonable man-machine interface, by the FRP colleagues of all ages.
FW-10000 main specifications
1. Maximum winding diameter : 10m 2. The maximum winding length : 12m 3. Product diameter range : 4m-10m 4. Installed capacity : 14.6KW 5. The maximum width of yarn : 168mm 6. Production capacity : 550kg / h
FW-15000 main specifications
1. Maximum winding diameter : 15m 2. The maximum winding length : 12m 3. Product diameter range : 4m-15m 4. Installed capacity : 18.6KW 5. The maximum width of yarn : 168mm 6. Production capacity : 550kg / h
>> Packing: According to customer's demand. >> Delivery: Within 60 days after the payment was received.
Company Information
HEBEI DONGDING CHEMICAL TRADE CO.,LTD is made up of several manufacturing enterprises, is a high tech enterprises that collection of sale for project consulting, designed and developed, engineering design, materials purchasing, transport of goods, equipment installation and training debugging, and has passed ISO 9001:2015 international quality management system certification, our company is the national foreign trade, the general administration of customs approved the company has import and export right. We mainly produce potassium sulfate production equipment,FRP tank production equipment,FRP pultruded products(include FRP Square tube/Rectangular tube /Round tube /Rod / U channel / I beam / Flat / Angle /Decking panel /Plum blossom tube /Ladder carling/Ladder crossgirder ),FRP pipe, FRP tank,FRP septic tank,FRP water tank,FRP grating,Cooling tower,FRP scrubber,Cable tray,FRP cover,FRP flange,FRP rock bolt,FRP handrail and so on,Looking forward to your visit and communication!
FAQ
1. Q: Are you Trading Company or Manufacturing Factory? A: We are both manufacturer and trading company. We have our own factory for almost seven years, and we have better service of overseas customers. Welcome to send your inquiry! 2. Q: How about the Delivery time? A: 60days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft container. Welcome to ask for the detailed delivery time according to your order quantity! 3. Q: How can you guarantee the product quality? A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction beforepacking. 4. Q: What is about the payment terms. A: Basically, the payment terms are T/T, L/C at sight. Western Union, Alipay. 5. Q: Can you do OEM for me? A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
