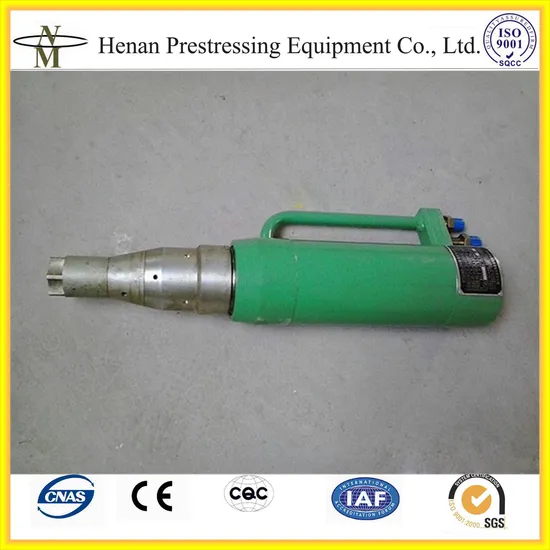

Qyc270 Series Light Weight Hydraulic Mono Prestress Jack

Product Description

1. Model: QYC270(27 tons), QYC240(24 tons).
2. Capacity: 24 tons and 27 tons, Tension Journey: 200mm, Tension Cylinnder Area: 4418mm², Weight: 24kg, Size: 108x510mm.
3. Usage: For stressing single strand, such as unbonded monostrand anchor system and flat anchor system.
4. For PC Strand Diameter: 9.53mm, 12.7mm, 15.24mm, for PC Steel Wire Diameter: 5mm, 7mm, 9mm.
5. Accessories: Removing Anchor Device, Limited Board, Seal Kits, Spare Wedges.

1). For Buildings: Housing, Commercial Buldings, High Rise Buildings.
2). For Municipal Engineering: Railway, Highway, Over Head Fast Speed Way, Metro Way, High-speed Railway, etc.
3). For Projects: Mining, Piling, Foundation, Slope and Rock Reinforcement, Hydropower Station, Anchoring Engineers, Water Conservancy Project, Oil or Gas Tank, etc.

Features: It can tension different diameter of pc strand, steel wire and steel rebar(see followings) by replacing different grip wedges inside it.
A: It can tension 12.7mm, 15.24mm, 15.7mm, 16mm pc strand.
B: It can tension 5mm, 7mm, 8.0mm, 9.52mmn steel wires.
C: The customized jack can tension 16mm, 22mm, 24mm, 26mm, 28mm, 32mm, steel rebar.
6. Professional Services: 1x7 days 24 hours service online, and engineer can service oversea
7. Warranty Time: One Year, we will send you Repair Kits if you need any time.

Model	Nominal Tension Force(KN)	Central Hole Diameter(mm)	Tensioning Area(mm²)	Stroke(mm)	Rated oil pressure(Mpa)	PC Strand Reserved Length(mm)
QYC70	74	10	1437	150	50	120
YDC240	240	18	4771	200	60	200
QYC270	270	18	4415	200	61	200
QYC1100	1100		22619	200	49
QYC2000	2000		42332	200	48

1. Anchor System: unbonded monostrand anchor system, multistrands anchor system, flat anchor system, arch type flat anchor, anchor barrel and wedges, ground anchor, rock and soil anchor, anchor wedges, anchor bearing plate, spiral reinforcing rings.
2. PC Strand System: unbonded pc strand, bonded pc strand, 12.7mm prestressed cable, 15.24mm prestressed strand, epoxy coated pc strand,galvanized pc strand, 6mm, 7mm, 9mm pc steel wire.
3. Duct System: galvanized metal duct, HDPE plastic duct, curved type galvanized metal duct, flat duct, corrugated pipe.
4. Heavy equipment: bridge girder launching machine, drilling rig, bridge girder transporter.

Prestressed Anchor System
Prestressed Strand Cable
Prestressing Equimpent

1) Q: Do you provide OEM Service or Customized-made Jack and Pump?
A :Yes, we do. Kindly please inform us your required Maximum Capacity(tons) And Stroke(tension journey) for Jack.
2) Q: How to guarantee we get Good Quality Hydraulic Jack And Pump?
A: We have built Testing Center with full ranges of Testing Equipment to test Anchorage, Wedges, PC Strand, Ducts, Hydraulic Jack and Pump. All goods must be tested here to make sure it is qualified before delivery.
3) Q: How is the delivery lead time:
A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days).
4) What is your Minimum Order?
A: MOQ: 1 SET.
