China Factory Blender Crusher Coffee Machines Shredder Waste Refrigerator Recycling Machine

Product Description

China Factory Blender Crusher Coffee Machines Shredder Waste Refrigerator Recycling Machine
Product Description

Household Appliance Recycling Line
We design different types of home appliance recycling system solutions for different capacities, different types of home appliances and other requirements. Kowloon Machinery waste home appliance processing system consists of a double-shaft shredder, metal crusher, eddy current separator, drum magnetic separator, vibrating feeder, chain conveyor, belt conveyor, self-unloading iron remover, Shakron separator, dust collector and electronic control system. It is mainly used to process large waste such as waste TVs, air conditioners, washing machines, dishwashers, refrigerators, etc. Through a full set of process flows such as conveying, crushing, iron removal, and dust removal, large waste is crushed and non-ferrous metals, plastics, etc. are sorted out.

Kowloon Machinery Home Appliance Shredder
Model	JLSS1500	JLSS2000
Motor	55kw+55kw	90kw+90kw
Gearbox	2units,planetary type, gear transmission
Shaft	solid shaft, made of 40Cr, hardened and tempered
Shredder chamber (inner)	1450x1100mm	1920x1250mm
Rotor rotary speed	8-18rpm	8-18rpm
Blade	diameter 530mm	diameter 560mm
Lubrication system	With automatic oil lubricator
Dimension	4.9x2.8x2.8m	6x3.8x4.8m
Weight	18000kg	29000kg

Metal Crusher
Model	JLMC-200	JLMC-315--420HP	JLMC-450--600HP
Thickness of case plate	30mm	40mm	50mm
Thickness of screen	60mm, material: cast steel, mesh 65*85mm	100mm, material: cast steel, mesh 65*85mm	100mm, material: cast steel, mesh 65*85mm
Thickness of edge lining plate	40mm	50mm	60mm
Main shaft Diameter	200mm,material:40Cr	250mm,material:40cr	280mm,material:40cr
Rotor disc	φ800mm, thickness 50mm, welding wear layer	φ900mm, thickness 60mm, welding wear layer	φ1200mm, thickness 80mm, welding wear layer
Hammer	10pcs, material: 13Cr2Mn, unit weight: 35KG	10pcs, material: 13Cr2Mn, unit weight: 45KG	14pcs, material: 13Cr2Mn, unit weight: 75KG
Thickness of Forced feed plate	16mm, hydraulic system	20mm, hydraulic system	20mm, hydraulic system
Motor/control cabinet	8P-200kw (1pcs), brand: WNM Soft starting cabinet, electrical components: Chint/Delixi	8P-315kw (1pcs), brand: Simo - Slip Ring motorcyclo motor Water-resistant starting cabinet, electrical components: Chint/Delixi	8P-450kw (1pcs), brand: Simo - Slip Ring motorcyclo motor Water-resistant starting cabinet, electrical components: Chint/Delixi
Feed chain conveyor	9000*1200mm,1pcs, power:7.5KW	12000*1400mm,1pcs, power:11KW	12000*1600mm,1pcs, power:11KW
Vibrating discharge machine	2500*1000mm,1pcs, power:3KW	2500*1000mm,1pcs, power:3KW	3000*1200mm,1pcs, power:4KW
Discharge conveyor	1000*6000mm,1pcs, power:4KW	1000*6000mm,1pcs, power:4KW	1000*6000mm,1pcs, power: 4KW
Magnetic separation vibration feeder	2000*1000mm,1pcs, power: 3KW	2000*1200mm,1pcs, power: 4KW	2000*1200mm,1pcs, power: 4KW
Drum magnetic separator	1000*650mm1pcs, power: 5.5KW	800*1000mm 1pcs, power: 7.5KW	1000*1000mm1pcs, power: 7.5KW
output conveyor	800*8000mm1pcs, power: 4kw	800*8000mm1pcs, power: 4KW	1000*8000mm1pcs, power: 5.5KW
Slag removal conveyor	500*8000mm1pcs, power: 3kw	600*8000mm1pcs, power: 3KW	650*8000mm1pcs, power: 4KW
DMC-120 Filter bag type dust collector/ Cyclone/pipe/fan	1set power: 7.5KW	1set power: 11KW	1set power: 22KW
Capacity	4-6t/h	8-10t/h	10-15t/h

Details Show

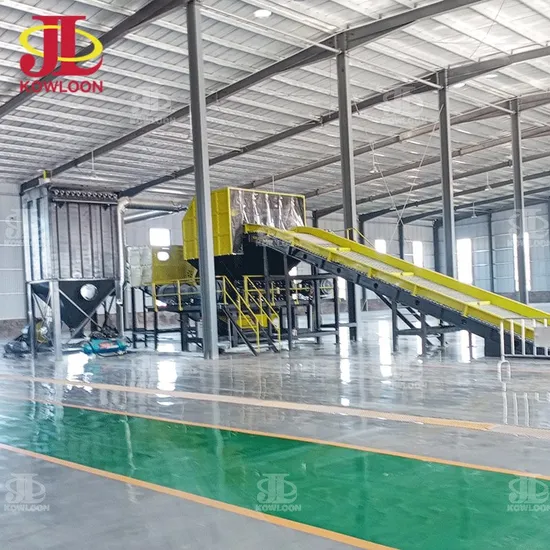

Home Appliance Recycling Plant
The entire line adopts a modular design. It is first disassembled manually, the harmful gases are collected and the compressors are removed. The disassembled large appliances are separated into iron by crushers and magnetic separators, with a purity of more than 98%. The remaining materials are separated into non-ferrous metals and plastics by eddy current separators. The entire production line has foam plastic collection and dust collection systems, which can reach a purity of more than 97%.
The waste appliance shredder produced by Kowloon Machinery can easily shred various electrical appliances. Common large waste appliances include televisions, air conditioners, washing machines, dishwashers, refrigerators, water heaters, disinfection cabinets, range hoods, kitchen stoves, electric fans, etc. The specific categories of waste appliances are as follows:

1. Household appliances: such as TVs, air conditioners, washing machines, refrigerators, water heaters, etc. 2. Electronic products: such as computers, mobile phones, tablet computers, MP3s, etc. 3. Communication equipment: such as telephones, fax machines, printers, etc. 4. Office equipment: such as copiers, scanners, projectors, etc. 5. Industrial equipment: such as motors, sensors, transformers, etc.
Work Flow of Refrigerator Recycling Line

1. When the waste refrigerator (or freezer) is on the unpowered drum, disassemble it manually and remove the plastic and glass from the box;
2. According to different types of refrigerants, refrigerant recovery devices are used to classify and recover refrigerants. Remove the compressor and condenser, etc.
3.The whole machine enters a double-shaft shredder for shredding and preliminary crushing.
4.The materials enter the hammer crusher, and are crushed for the second time through crushing and kneading by the crusher.
5. At the same time of secondary crushing, part of polyurethane foam will be separated into foam separator by air separation.
Heavy materials such as plastic and metal enter the belt conveyor.
6. Materials crushed by plastic and metal are separated by magnetic separation on the belt, and then enter eddy current separation.
7.Non-ferrous metals, such as copper and aluminum, are separated by eddy current, and plastic and foam materials are transported to the airflow separation system through belts to separate pure plastic and foam. Polyurethane foam is compressed into blocks by a foam crusher.
Product Details
Application of Other Raw Materials
1. Scrap metal: scrap iron, aluminum, copper, steel bars, lead plates, scrap cars, bicycles, three-wheeled electric vehicles, bumpers, car bodies, scrap tires, aluminum cans, compressors, steel plates, etc.
2. Waste household appliances: TV, washing machine, refrigerator shell etc.
3. Wood: wood mattress, wood furniture, wood pallet, scrap timber, sawdust chipboard, composite board, wooden door, forklift pallet, wood board, wood template, wooden case, wooden box, wood sofa, wood bed, etc.
4. Textile: scrap clothes, shoes, fishing net, woven bag, ton bag, jumbo bag, fishing net bundles, dust collector bag, industrial textile waste, etc.
5. Plastic: plastic pallet, plastic drum, plastic bucket, plastic film, waste appliances shell, garbage plastic drum, IBC drum, IBC barrel,garbage bag, rubbish bag, plastic pipe, washing machine, forklift pallet, lead acid battery shell, etc.
6. All kinds of Kitchen waste, domestic waste, rdf derivatives,garden waste etc.
If you are interested in our production line, please do not hesitate to contact us and we will provide you with a tailor-made solution.
Installed Projects
Packaging and Shipping
Company Profile
Company Introduction
Kowloon Machinery located in industrial hub of Zhengzhou city, China, design and manufacture industrial shredder, wood processing machinery, waste tire recycle equipment and scrap metal recycling machines. Kowloon products approved by CE and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, and now are still growing continuously.
We effort on improving and researching, in past years, various of new products were developed and becomes popular in domestic and abroad market, won good reputation and corporate image, we always effort on best quality and service, welcome to inquiry!
Certificate
Customer Cooperation
Zhengzhou Kowloon Machinery has always won the trust and recognition of many users with its excellent quality and excellent after-sales service. The company has CE, ISO, SGS, CMIC and multiple certification certificates and invention patents. New and old friends are welcome to visit our factory and Trial machine test.
