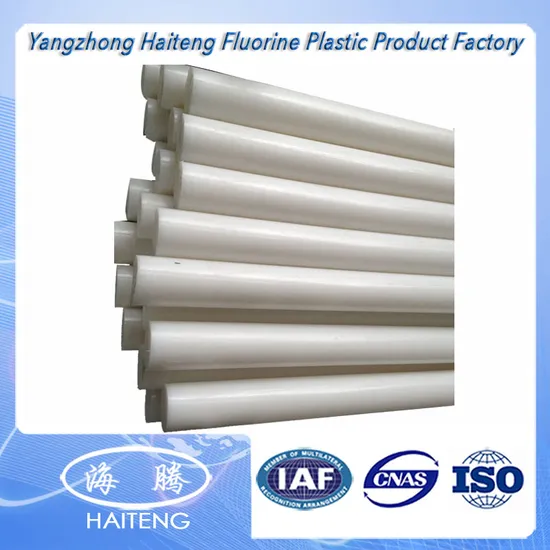

Haiteng Customized White POM Rods Acetal Delrin Round Bars
Basic Info.
Model NO.
POM Rod
Water Absorption
0.1%~0.3%
Contraction Percentage
2.0%~5.0%
Tensile Strength
41~50MPa
Diameter
6mm to 200mm
Style
Extruded
Transport Package
Wooden Box
Specification
SGS
Trademark
Haiteng
Origin
Jiangsu Yangzhong
HS Code
39209910
Production Capacity
300 Tons Per Year
Product Description
Hateng Customized Acetal Delrin RodAcetal resins (polyoxymethylene or POM) are engineering thermoplastics based on formaldehyde polymerization technology. These highly crystalline resins are strong, rigid and have a low coefficient of friction against metals, acetals and other plastics. They are creep resistant so they are good for parts where dimensional stability is important.
Images
Features:
High mechanical strength
Dimensional stability
Excellent machinability
Good creep resistance
Very low stick-slip
Physiologically inert
Low moisture absorption
Continuous use at temperature -50° C to +110° C
Application:
POM material can be used in applications such as; Gears, Bushings, Bearings, Rollers, Timing Screws, manifolds, Valves and Valve Bodies, Washers, Wear Pads, and many industrial machine parts.
| Density | 1.4-1.5g/cm3 |
| Melting point | 175centigrade |
| Tensile strength | 50Mpa |
| Elongation | 60% |
| Impact strength | With notch 7.6 KJ/m2 |
| Without notch 108KJ/m2 | |
| Water absorption | 0.2% |
| Working temperature | -50 to 110centigrade |
| Hardness(N/mm2) | 270-280 |
| Bending modulus | 2.3-3Mpa |
| Organic solvents | Good |
