Medical Central Electric Vacuum Suction Apparatus

Product Description

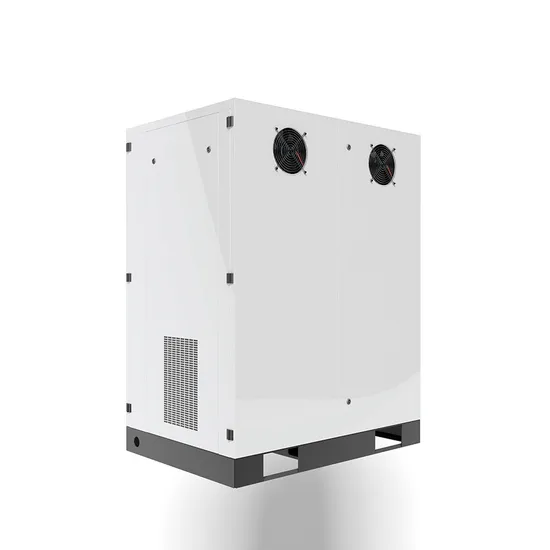

ETR has independently developed an integrated vacuum suction machine composed of oil lubrication vacuum pump, vacuum buffer tank, sterilizing filter, cooling system, negative pressure gas treatment device, pipe fittings and remote mobile monitoring system.
It is a simple, safe and reliable device that continuously serves the wards all day long, without occupying the ward space. The negative pressure is sourced from the vacuum pump unit.
Advantage
Automatic and intelligent electrical control system;
Modular design, small area occupation, flexible to be placed;
Open data communication interface facilitates system's remote management;
Oil lubrication vacuum pump, high efficiency, low noise, stable and reliable operation;
High-efficiency sterilizing filter ensure for the environment friendly sterile discharge
Dynamic process display, operation data storage, fault protection and abnormal alarm;
Intelligent control and operation with touch screen, being operated and switched automatically;
24 hours intelligent monitoring and recording by Mobile phone APP, with messages alarm in case of failure.

Model	Pressure (MPa)	Inlet/Outlet	Power Supply	Power (KW)	Size (mm) L*W*H	Weight (KG)	Noise dB(A)	Vacuum Tank(M3)
ETV-02	0.1	G2"(DN50)	AC380V/50Hz/3P	2.2X2	1200x850x1560	475	≤62	1
ETV-03	0.1	G2"(DN50)	AC380V/50Hz/3P	3.0X2	1200x850x1560	495	≤62	1
ETV-04	0.1	G2"(DN50)	AC380V/50Hz/3P	4.0X2	1200x850x1560	665	≤70	1.5
ETV-05	0.1	G2"(DN50)	AC380V/50Hz/3P	5.5X2	1200x850x1560	665	≤72	1.5
ETV-07	0.1	G2"(DN50)	AC380V/50Hz/3P	7.5X2	1200x850x1560	755	≤74	2
ETV-11	0.1	G2"(DN50)	AC380V/50Hz/3P	5.5X4	1200x850x1560	1330	≤73	3
ETV-15	0.1	G2"(DN50)	AC380V/50Hz/3P	7.5X4	1200x850x1560	1510	≤73	4

FAQ: Q: Are you factory or trading company?
A: We are factory specilized in making medical equipments from year 2003.
Q: Where are you?
A: We are in ChangSha,Hunan province,3 hours from guangzhou by high-speed rail.
Q: Do you accept the small order?
A: Yes, you can contact with us.
Q: Can we put our logo on your products?
A: Yes, we can customized your logo. But the quantity of the items have special requirements.

Q: What certifications do products have for your company?
A: CE, ISO and SGS at present.
Q: Do you provide technical support?
A: Yes, technical support is available after sales,if needed,we will provide our technicist to overseas to service you.
