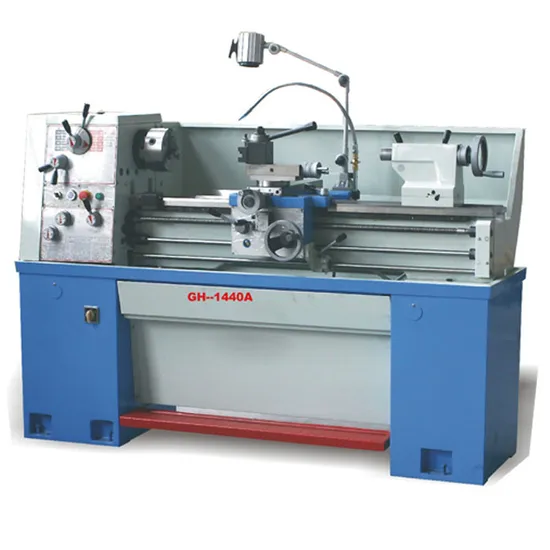

China Horizontal Manual Metal Lathe Machine (GH-1440A)
| US$2,500.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GH-1440A
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Position Toolpost
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Name
China Horizontal Manual Metal Lathe Machine (Gh-14
Model
Gh-1440A
Swing Over Bed
356mm
Spindle Bore
38mm
Distance Between Column
1000mm
Motor Power
1.5/2.4kw(3HP)
Packing Size
2020X900X1560mm
Weight
880
Bed Width
206mm
Spindle Speed
45-1800rpm
Transport Package
Wood Case
Specification
CE, ISO9001
Trademark
unitech
Origin
China
HS Code
84581900
Production Capacity
100sets/Month
Product Description
China Horizontal manual metal Lathe Machine (GH-1440A)Features:
Precision ground and supersonic frequency hardened bed ways.
The lathe machine spindle is supported with precision roller bearing;
Headstock gears are made of high quality steel, ground and hardened;
Removable gap is provided for larger diameter work;
Easy operating gear box has various feeds and thread cutting function
Specifications:
| Model | GH1440A | |||
| Max.Swing.over bed | mm | Φ356(14') | ||
| Max.Swing.over cross slide | mm | Φ220(8-5/8') | ||
| Max.Swing.over gap | mm | Φ506(20') | ||
| Bed width | mm | 206(8') | ||
| Max.Distance between centers | mm | 1000(40') | ||
| Taper of spindle bore | MT#5 | |||
| Diameter of spindle bore | mm | Φ38(1-1/2') | ||
| Steps of spindle speeds | 16steps | |||
| Range of spindle speeds | r/min | 45-1800rpm | ||
| Spindle nose | D-4 | |||
| Metric thread range | mm | 0.45-7.5(22kinds) | ||
| Inch screw thread range | TPI | 4-112(40kinds) | ||
| Range of longitudinal feeds | mm | 0.03-0.688(0.0011-0.0271'in/rev) | ||
| Range of cross feeds | mm | 0.015-0.220(0.0003-0.01'in/rev) | ||
| Diameter of leadscrew | mm | Φ22(7/8') | ||
| Pitch of leadscrew | mm | 4(8T.P.I) | ||
| Travel of tailstock quill | mm | 120(4-3/4') | ||
| Diameter of tailstock quill | mm | Φ45(1-25/32') | ||
| Taper of tailstock quill | MT#3 | |||
| Main motor power | Kw | 1.5/2.4 | ||
| Packing size of lathe(LxWxH) | mm | 1900 x760 x1460 | ||
| Net Weight/Gross Weight | Kg | 960/875 | ||
| Standard accessories: |
| 3-Jaw chuck |
| 4-Jaw chuck |
| Splash guard |
| Work light |
| Coolant system |
| Foot brake |
| Face plate |
| Steady rest |
| Follow rest |
| Operation manual |
| Optional accessories: |
| DRO |
| Qucik change tool post |
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
