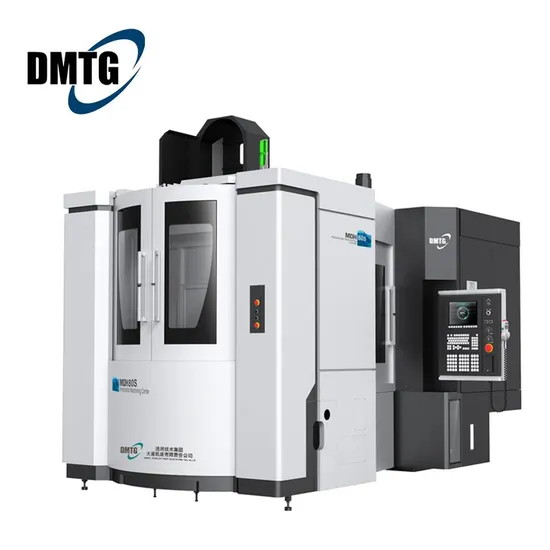

Mdh Orizontal Machining Center China CNC Machine Center
Basic Info.
Model NO.
MDH
Process Usage
Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
/
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Transport Package
Wooden Case Packing
Specification
/
Trademark
DMTG
Origin
Liaoning
Production Capacity
100 Sets/Month
Product Description
| TABLE | Worktable Size | mm | 800*800 |
| Workpiece Size Range | mm | φ1110*1220 | |
| Max Load Of Worktable | kg | 1300 | |
| X/Y/Z Axis Travel | mm | 1050/900/900 | |
| SPINDLE | Spindle speed | r/min | 8000(6000/12000 Optional) |
| Spindle taper | NO.50(7:24) | ||
| Spindle drive mode | Motorized spindle | ||
| Spindle power | kw | 18.5 | |
| Spindle maximum torque | nm | 24 | |
| MOVEMENT | X/Y/Z cutting speed | m/min | 20 |
| X/Y/Z feeding speed | m/min | 54 | |
| ATC SYSTEM | Tool magazine capacity | 40(60/80/120 Optional) | |
| Tool shank type | BT50-45° | ||
| Max. tool weight | kg | 25 | |
| Max. tool diameter (w/o adjacent tools) | mm | φ115 | |
| Max.tool length | mm | 500 | |
| Time of tool change (T-T) | s | 2 | |
| ACCURACY | X/Y/Z axis positioning accuracy | mm | 0.01 |
| X/Y/Z axis repeatability accuracy | mm | 0.006 | |
| CONTROL SYSTEM | Controller | GSK/SIEMENS/FANUC |
