Best Price S12700e Series Lst7g48tx6e0 03034dgy 48-Port 100/1000base-T Interface Card

Product Description

Product Description Product Characteristics
CloudEngine S12700E series agile switches are core switches designed for next-generation campus networks.
Using a fully programmable switching architecture, the S12700E series switches allow for fast, flexible function customization and support a smooth evolution to software-defined networking (SDN). The S12700E series switches provide the native wireless access controller (AC) capability to help build a wired and wireless converged network. Their unified user management capabilities deliver refined user and service management, and Huawei's Packet Conservation Algorithm for Internet (iPCA) supports hop-by-hop monitoring of any service flows, helping you manage services in a more refined way. The S12700E series switches run Huawei Versatile Routing Platform (VRP), which provides high-performance L2/L3 switching services as well as a variety of network services, such as MPLS VPN, desktop cloud, and video conferencing. The S12700E series switches adopt next generation switch fabric (NGSF), and use the cell switching technology to reduce the forwarding latency and improve the load balancing capability of switch fabric units (SFUs). The S12700E series switches support single-link 100G hardware clustering and a variety of reliability technologies such as hardware Ethernet OAM, BFD, and ring network protection. These help you improve productivity and maximize network operation time, and therefore reduce the total cost of ownership (TCO). The S12700E series switches come in three models: S12700E-4, S12700E-8, and S12700E-12. The maximum numbers of line processing units and switch fabric units supported by these models are: S12700E-4: 2 MPUs, 2 SFUs, and 4 LPUs S12700E-8: 2 MPUs, 4 SFUs, and 8 LPUs S12700E-12: 2 MPUs, 4 SFUs and 12 LPUs Make Your Network More Agile and Service-oriented The S12700E series switches provide fully programmable interfaces, and support forwarding process customization. The device's flexible packet processing and traffic control capabilities help to build a highly scalable network that meets current and future service requirements. The S12700E series switches use a fully programmable architecture, on which enterprises can define their own forwarding models, forwarding behaviors, and lookup algorithms. This architecture speeds up service innovation and makes it possible to provision a new service within several months, without replacing hardware. Therefore, the S12700E series switches provide much higher flexibility than traditional with fixed forwarding architecture and fixed forwarding process (1-3 years taken for provisioning a new service). In addition to all the capabilities of common switches, the S12700E series switches provide fully programmable open interfaces and support programmable forwarding behaviors. Enterprises can use the open interfaces to develop new protocols and functions independently or jointly with other vendors to satisfy their needs. Deliver Extensive Services More Efficiently The S12700E series switches provide hardware native T-bit AC and unified user management functions, allowing for more agile service features. The native AC allows enterprises to build a wireless network without additional hardware AC devices. The T-bit AC capability avoids performance bottlenecks on independent AC devices and helps you better cope with challenges in the high-speed wireless access era. Providing the unified user management function that shields the differences of access devices in capacity and access methods. It supports PPPoE, 802.1X, MAC, and Portal authentication, and can manage users based on user groups, domains, and time ranges. These functions facilitate user and service management and enable a transformation from device-centered to user-centered management. The service chain function can orchestrate value-added service capabilities, such as firewall, antivirus expert system (AVE), and application security gateway (ASG). Then these capabilities can be used by campus network entities (such as switches, routers, AC, AP, and terminals), regardless of the physical locations. The service chain function allows for more flexible value-added service deployment, which reduces equipment and maintenance costs. Provide Fine Granular Management More Efficiently The S12700E series switches support Packet Conservation Algorithm for Internet (iPCA) and super virtual fabric (SVF), and can manage access switches, allowing for fine-granular network management. iPCA technology can monitor network quality for any service flow at any network node, anytime, without extra costs. It can detect temporary service interruptions within 1 second and accurately identify faulty ports. This cutting-edge fault detection technology allows for fine granular management. SVF technology can virtualize fixed switches into line cards of S12700E series switches and virtualize APs into their ports. With this technology, a physical network with core/aggregation switches, access switches, and APs can be virtualized into one logical switch, offering the simplest network management solution. The S12700E series switches manage access switches in a similar way an AC manages APs, removing the configuration workload on access switches. They manage access switches and APs uniformly over CAPWAP tunnels, implementing Zero Touch Provisioning (ZTP) of access switches and APs. Industry-Leading Line Cards Industry-leading line cards of the S12700E series switches support large table sizes and provide low-latency forwarding of heavy traffic. The S12700E series switches support several million hardware entries, leaving traditional switches far behind. The S12700E series switches provide large routing tables for metro core layer of television broadcasting or education network and fine granular traffic statistics collection for education campus networks and large-scale enterprise campus networks. The S12700E series switches provide a large buffer size on each line card to prevent packet loss upon traffic bursts, delivering high-quality video services. The S12700E series switches support high-density cards featuring non-blocking forwarding, such as 48*10GE, 6*100GE, and 24*100GE cards. These large port capacities meet the requirements of bandwidth-consuming applications, such as multimedia video conferencing, and provide investment protection for customers. Network-Level Reliability Design: End-to-End Hardware Protection Switching The S12700E series switches use a series of link detection and protection switching technologies, such as hardware Eth-OAM, BFD, G.8032, and Smart Ethernet Protection (SEP). These technologies help build a campus network that responds quickly to topology changes and provides the most reliable services.
Comprehensive Security Measures Supporting MAC security (MACsec) that enables hop-by-hop secure data transmission. Therefore, the S12700E series switches can be applied to scenarios that pose high requirements on data confidentiality, such as government and finance sectors. Providing innovative next-generation environment awareness and access control. It identifies the application-layer attacks and protects network-layer applications based on application type, content, time, user, threat, and location. The dedicated software and hardware platforms provide an Intelligent Aware Engine (IAE) to perceive application information when all security functions are enabled. The built-in hardware accelerator for content detection improves application-layer protection efficiency and ensures the 10G+ performance when all security functions are enabled. Cloud-based Management In Huawei CloudCampus Solution, switches can be managed by the management and control system (CloudCampus@AC-Campus for switches running V200R019C00 and earlier versions; iMaster NCE-Campus for switches running V200R019C10 and later versions).
The switches are plug-and-play. The switches can automatically connect to the management and control system and use bidirectional certificate authentication to ensure management channel security. The switches provide the NETCONF and YANG interfaces, through which the management and control system delivers configurations to them. Remote maintenance and fault diagnosis can be performed on the switches using the management and control system. VXLAN The S12700E series switches are VXLAN-capable and allow centralized and distributed VXLAN gateway deployment modes. These switches also support the BGP EVPN protocol for dynamically establishing VXLAN tunnels and can be configured using NETCONF or YANG. VXLAN is used to construct a Unified Virtual Fabric (UVF). As such, multiple service networks or tenant networks can be deployed on the same physical network, and service and tenant networks are isolated from each other. This capability truly achieves 'one network for multiple purposes'. The resulting benefits include enabling data transmission of different services or customers, reducing the network construction costs, and improving network resource utilization.
OPS Open Programmability System (OPS) is an open programmable system based on the Python language. IT administrators can program the O&M functions of a switch through Python scripts to quickly innovate functions and implement intelligent O&M.
Intelligent Diagnosis Open Intelligent Diagnosis System (OIDS) integrates the device health monitoring and fault diagnosis functions - that are typically deployed on a Network Management System (NMS) - into the switch software to implement intelligent diagnosis on a single switch. After OIDS is deployed on a switch, the switch periodically collects and records the running information and automatically determines whether a fault occurs. If a fault occurs, the switch automatically locates the fault or helps locate the fault. All these merits increase fault locating efficiency of O&M staff while improving device maintainability.
Basic information about the LST7G48TX6E0 Item Details

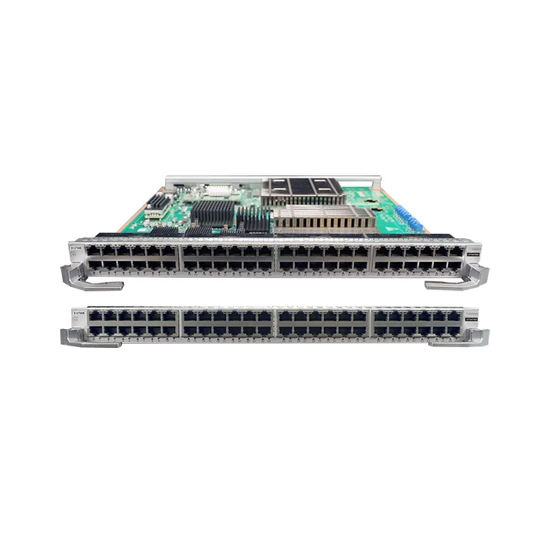

Description	48-port 100/1000BASE-T interface card (X6E,RJ45)
Part Number	03034DGY
Model	LST7G48TX6E0

Technical specifications of the LST7G48TX6E0 Item Specification

Dimensions without packaging (H x W x D) [mm(in.)]	35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight without packaging [kg(lb)]	3.70 kg (8.16 lb)
Weight with packaging [kg(lb)]	5.75 kg (12.68 lb)
Typical power consumption [W]	140 W
Typical heat dissipation [BTU/hour]	477.69 BTU/hour
Maximum power consumption [W]	144 W
Maximum heat dissipation [BTU/hour]	491.34 BTU/hour
Memory	1 GB

Functions and features of the LST7G48TX6E0 Functions and Features Description

Basic function	The card provides forty-eight 100/1000BASE-T ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	Supported

Ports on the LST7G48TX6E0 Port Connector Type Description Available Components

100/1000BASE-T electrical port	RJ45	A 100/1000BASE-T electrical port sends and receives service data at 100/1000 Mbit/s. In V200R022C10 and later versions, the rate of the first 24 100/1000BASE-T electrical ports can be automatically reduced to 10 Mbit/s.	Ethernet cable

Indicators on the LST7G48TX6E0 Silkscreen Name Color Status Description

-	LINK/ACT indicator of an upper electrical port	Green	Steady on	A link has been established on the port.
		Green	Blinking	The port is transmitting and receiving data.
-	LINK/ACT indicator of a lower electrical port	Green	Steady on	A link has been established on the port.
		Green	Blinking	The port is transmitting and receiving data.
RUN/ALM	Running status indicator	Green	Steady on	The card is powered on. If the indicator is steady green for no more than 30 seconds, the CPU is being started. If the indicator is steady green for more than 30 seconds, the software is not running.
		Green	Slow blinking	The card software is running properly.
		Green	Fast blinking	The card software is starting.
		Red	Steady on	The card has failed and the fault requires manual intervention.
		Yellow	Steady on	The card is powered off. (For example, the card has been forcibly powered off using the power off command or is about to start.)
