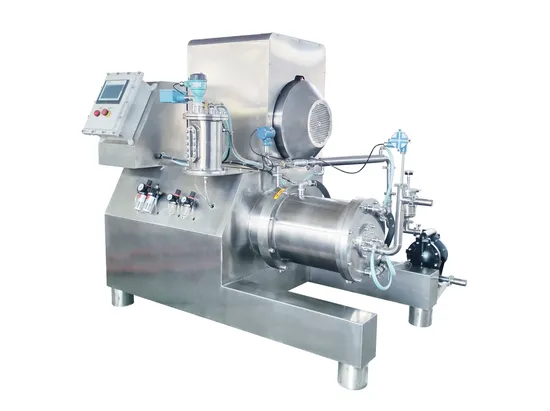

High Efficiency Nano Grinding Mill Inkjet Bead Mill Machine with Cooling System
| US$999.00-9,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
EDW
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Disc
Stirring Type
Forced
Working
High Speed Mixer
Materials
Stainless Steel or Pure Zirconia
Application Industry
Dye, Dyestuff, Dyeware, Offset Printing Ink
Grinding Medium
Pure Zirconia
Layout Type
Horizontal
Operating type
Continuous Operating
Mixer Type
Wet Grinding Machine
Transport Package
Wooden Case
Specification
EZW-5------EZW-100
Trademark
ELE
Origin
Shanghai, China
HS Code
879820090
Production Capacity
200-3000L/H
Product Description
Horizontal Sand Mill (EDW)/High Efficiency Nano Grinding Mill Inkjet Bead Mill Machine With Cooling SystemFeatures:
1, high abrasive resistance materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life span
2, dynamic fence booms discharge solve problems of slow discharge and grinding medium getting stuck
3, Double end-face mechanical seal can bear more than 10bar pressure
4, screw structure inside cooling jacket increase cooling area and improve cooling efficiency
5, grinding beads small to 0.2mm guarantee superfine grinding/milling
5, meet demands of continuous production
6, especially suitable for high viscosity, high solid-content, superfine grinding/milling
7, inner & outer double pins improve high wet grinding/milling efficiency
8, ex-proof (optional)
9, precise control system & fault alarming
10, kinds of feeding pumps to different processing requirements (e. G. Pneumatic diaphragm pump)
11, low power consumption
Specifications
| Model | Chamber Volume (ml) | Power (kw) | Speed (rpm) | Capacity (L/H) | Dimension L*W*H (mm) | Weight (kg) |
| EDW-5 | 5 | 7.5 | 1440 | 200 | 1300*1050*450 | 650 |
| EDW-15 | 15 | 18.5 | 1440 | 500 | 1600*1450*650 | 1200 |
| EDW-20 | 20 | 22 | 1260 | 800 | 1600*1450*650 | 1350 |
| EDW-30 | 30 | 37 | 1260 | 1200 | 1650*1550*750 | 1700 |
| EDW-40 | 40 | 45 | 980 | 1500 | 1750*1650*850 | 2100 |
| EDW-50 | 50 | 55 | 980 | 2000 | 1900*1850*850 | 2300 |
| EDW-100 | 100 | 110 | 860 | 3000 | 2300*2150*950 | 380 |
