Best Selling Paper Cup Producing Machine at Speed 60-100 PCS/Min

Product Description

Ultrasonic Paper Tea Cup Machine CW-DP16 Product Description

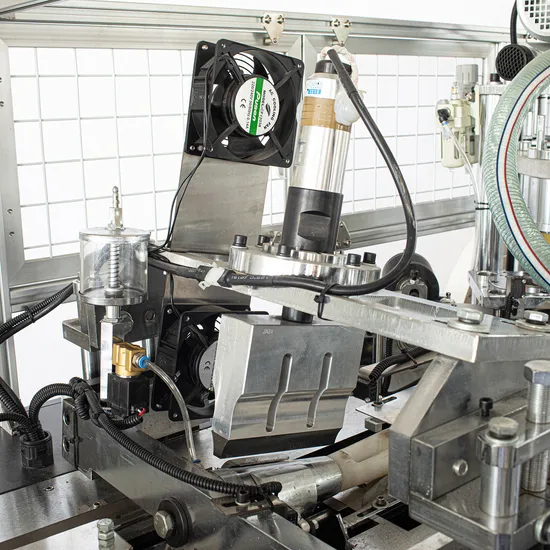

The working principle of our paper cup machine is that a main motor drives the whole machine to work, which realizes the perfect integration of gear and cam structure. Now the machine uses a single aluminum plate to replace the previous three plate machine, which greatly reduces the machine failure rate and reduces the training time for the operator. 3-16oz single and double coated paper cups can be customized according to customer requirements. It is a fully automatic paper cup forming equipment, through multi-row automatic paper feeding, paper anti-return device (to ensure accurate positioning), ultrasonic or copper strip welding, mechanical hand paper tube transfer, oil injection, bottom punching, bottom folding, preheating, and rolling Continuous processes such as flower and cup unloading can stably produce paper cups of various specifications. It is a paper cup equipment independently developed by our company that has undergone comprehensive technical improvements to improve the stability of the whole machine.
Product Parameters

Model	CW-DP16
Production speed	70-90 pcs/min
The cup body Sealing	Ultrasonic
Material requirements	Single/Double PE Coated
Power	7.5kw
Weight	2000Kg
Corresponding to the paper cup size	3-16oz
Speed	70-90pcs/min
Paper thickness requirements	150-350g/M2;±20g/M2
Gas supply requirements	0.6-0.8mpa;0.4m³/min
Voltage	380V/50hz
Automatic Cup Collection Size	900x600x1800mm( L*W*H)
Machine package size	2100x1200x1800mm(L*W*H)
Bottom rolling flowers	Hot Air Blower
