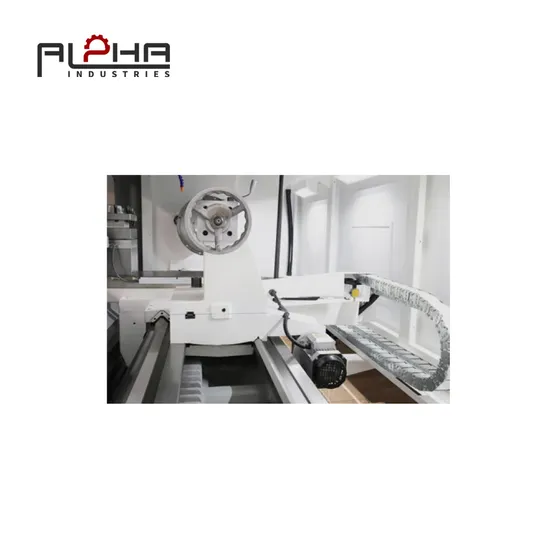

Ck6191L/Ck61100L/Ck61110L CNC Lathe Machine Tool Turning Horizontal Lathe Machine

Product Description

Product Description

Fabricado En China Metal Conventional CK6191L/CK61100L/CK61110L CNC LATHE Machine Tool

Product Parameters

Basic Info.
Model NO.	CK6191L/CK61100L/CK61110L		Guide Rail	/
Tool Holder	/		Power Source	Electric
Controlling Mode	CNC		AutomaticGrade	Automatic
Setting Mode	/		Precision	High Precision
Certification	CE,ISO 9001		Condition	New
Trademark	Alpha industries		Origin	China
Production Capacity	100 Sets/Year

Model		CK6191L	CK61100L	CK61110L
Machining	Max.cutting dia.for disc parts	φ910mm	φ1000mm	Φ1100mm
	Max.cutting dia.for axle parts	φ530mm	φ600mm	Φ720mm
	Width of bed	600mm	600mm	600mm
	Max.workpiece length	1500/2000/3000/4000mm	1500/2000/3000/4000mm	1500/2000/3000/4000mm
	Max.turning length	1350/1850/2850/3850mm	1350/1850/2850/3850mm	1350/1850/2850/3850mm
	Max.weight between centers	2000KG	2000KG	2000KG
	Max.Swing Dia.over gap	Φ1100mm	φ1200mm	φ1300mm
Principal axis	Spindle nose	D11	D11	D11
	Spindle bore	φ104 mm	φ104 mm	φ104 mm
	Taper of spindle hole	Metric φ1201:20	Metric φ1201:20	Metric φ1201:20
	Steps of spindle speed	4 ranges (stepless in each)	4 ranges(stepless in each)	4 ranges(stepless in each)
	Range of spindle speed	10~90,20~180,40~320,80~630rpm
Feed	Rapid feed for AxisZ	10m/min	10m/min	10m/min
	Rapid feed for AxisX	8m/min	8m/min	8m/min
Travel	Max travel of Axis Z	1500/2000/3000/4000mm	1500/2000/3000/4000mm	1500/2000/3000/4000mm
	Max travel of Axis X	520mm	520mm	520mm
Tool post	Tool post stations	4-Stations	4-Stations	4-Stations
	Tool cross section	40×40mm	40×40mm	40×40 mm
Tailstock	External diameter	φ100mm	φ100mm	Φ100mm
	Taper of tailstock sleeve	MT.No.6	MT.No.6	MT.No.6
	Max travel of tailstock sleeve	250mm	250mm	250mm
Other	Min.input	0.001mm	0.001mm	0.001mm
	Power of main motor	15KW	15KW	15KW
	Power ofcooling pump	370W	370W	370W
	Overall dimensions (L×W×H)	4200×2000×1930mm	4200×2000×1980mm	4200×2000×2030mm
	Net weight	6600KG	6770KG	6940KG
Optional	CNC system	FANUC 0i TF(5)Plus controller with Beta motors SINUMERIK 828D-2 axes SIEMENS servo motors
	Tool post	6-station electrical turret
	Chuck	Taiwan 12"closed hydraulicchuck;Taiwan 12"hollow hydraulic chuck; 500mm 3-jaw chuck;380mm 3-jaw chuck
	Tailstock	Hydraulic tailstock
	Steady rest	φ170-φ320mm/φ280- φ430mm/φ380-φ550mm	φ100-φ300mm/φ450-φ660mm/φ530-φ760mm
Other	Overall dimensions (L×W×H)	3700/4200/5200/6200x2000x1980mm
	Net weight	6200/6600/7200/7800kg	6300/6700/7300/7900kg	6400/6800/7400/8000kg

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
