Sdcad Brand Hopper Cone Integral-Type Silo 200 Ton Cement Silo for Bulk Material Logistics Transfer System
Basic Info.
Model NO.
CS50-3000
Type
Cement Storage Silo
Shotcrete Type
Dry
Machining Process
Weld
Structure
Rotor Type
Productivity
30-2000ton
Feeding Height
Accordingly
Vibrating Amplitude
0.09kw
Certification
ISO9001: 2000, CE
Condition
New
Color
Accordingly
Name
Cement Silo
Volume
50-2000 Ton
Usage
Storage Cement Power or Fly Ash
Material
Carbon Steel
Shape
Cylinder
Discharge Height
0-8m
Delivery
Container
Accessory
Dust Collector ,Pressure Relief Valve
Transport Package
Laminated Packaging
Specification
accordingly
Trademark
SDCADI
Origin
China
HS Code
8474390000
Production Capacity
5000 Sets/Month
Product Description

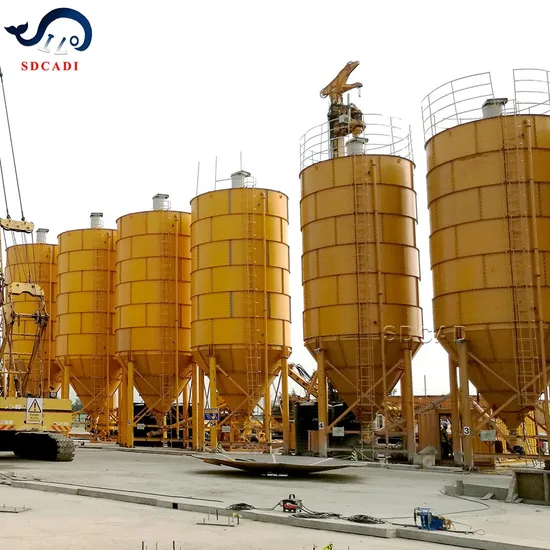

Cement silo is a closed cement silo for bulk material, including grain, cement, fly ash, etc.
The cement silo is equipped with a material level system, which can show the location and amount
of the material. The hole breaking device can remove the firmness caused by log-term material deposition.
Cement silo and screw pump can be used together to transfer materials to all positions. It is the ideal bulk
storage tank for various mixing stations. Product Specification
| Volume | Diameter | Silo body height | Discharge height | Pieces each layer | Weight |
| 50t | 3160mm | 4260mm | Design Customization | 4 | 4.5T |
| 100t | 3160mm | 8700mm | Design Customization | 4 | 6T |
| 150t | 3600mm | 13000mm | Design Customization | 4 | 9T |
| 200t | 4000mm | 11360mm | Design Customization | 5 | 12T |
| 200t | 4500mm | 8700mm | Design Customization | 6 | 12T |
| 300t | 5300mm | 8700mm | Design Customization | 8 | 17T |
| 500t | 6800mm | 7300mm | Design Customization | 8 | 21T |
| 600t | 6800mm | 8700mm | Design Customization | 8 | 28T |
| 800t | 8000mm | 10100mm | Design Customization | 10 | 43T |
| 1000t | 8000mm | 13200mm | Design Customization | 10 | 56T |
| 1500t | 100000mm | 150000mm | Design Customization | 12 | 120T |
| 2000t | 100000mm | 180000mm | Design Customization | 12 | 150T |
| 2500t | 150000mm | 200000mm | Design Customization | 16 | 200T |
| 3000t | 150000mm | 220000mm | Design Customization | 16 | 250T |
| 3500t | 200000mm | 250000mm | Design Customization | 20 | 300T |
| Top leader in cement storage silo |
| 1:Robot welding, no spatter during welding, smooth and even weld seams 2:Professional spray paint production line, uniform spray paint thickness, customizable spray paint thickness 3:Shot blasting production line, capable of serving your project for over 30 years 4:High processing accuracy, precise perforation position, easy on-site installation 5:Materials can be customized: carbon steel, hot-dip galvanized, stainless steel 6:Capacity: 30-3000 tons can be customized |
