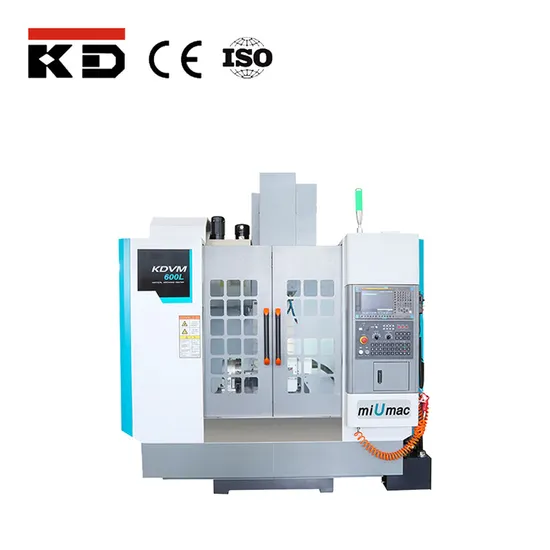

Linear Control Machine Straightening CNC Milling with CE Low Price

Linear Control Machine Straightening CNC Milling with CE Low Price

US$34,566.00-38,860.00 1 Set (MOQ)

Basic Info.

Model NO.
KDVM600L
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
It6
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Size
750*400mm--1130*510mm
Repearability
+-0.003
Transport Package
Export Standard Wooden Pallets
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8457101000
Production Capacity
523

Product Description

Linear Control Machine Straightening CNC Milling with CE Low Price
Product Description
Product Specifications

MODELS
KDVM600L
TRAVEL

X axis
600mm
Y axis
430mm
Z axis
500mm
Spindle center to column
484mm
Spindle end to table
90-570mm
TABLE

Tablesize
720×400mm
T-slot(width×number×space)
18mm×3×110mm
Max.table loading
500kg
SPINDLE

Taper bore of spindle
BT40
Spindle power
9kw
Spindle speed
8000rpm
Driving by belt or gears
Belt
Kind of gearbox
without gearbox
Cutter removal from spindle
Pneumatic
FEED

X/Y/Z fast feed
36/ 36/ 36m/min
Torque axis motors
11/ 11/ 11Nm
ATC

Type (disc/carousel)
Carousel
Tool number
20
Max. tool size (With adjacent tool)
Ф76mm
Max. tool size (Without adjacent tool)
Ф150mm
Max.tool length
300mm
Max.tool weight
8kg
Time (tool-tool)
2s
ACCURACY

Positioning
≤0.008
Repeatability(X/Y/Z)(ISO)
≤0.004mm
OTHERS

Min.Input
0.001mm
Coolant pump power
370w
Overall dimension
3550x2100x2400mm
Net weight
3900kg
