Purchase China-Made Forest Hardwood Pellet Production Line with Capacity of 2.5-3tph

Product Description

Purchase China-Made Forest Hardwood Pellet Production Line With Capacity of 2.5-3TPH
Brife Introduction of wood pellet line
A complete pellet line's capacity is from smaller 500kg/h to bigger 30ton/h.
Until now hundreds of pellet production lines are installed in China and abroad, such as France, Bulgaria, Romania, Hungary, Argentina, Belarus, Japan, Korea, India, Indonesia, Vietnam, Malaysia, Thailand, Laos, ect . Greatly welcome to visit our factory.
Raw material: wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material
Size:2-4mm (All the raw materials must be crushed into sawdust before going
to wood pellet machine.If not, you may need a wood chipper, wood crusher.)
Moisture: Generally, 10-15% is best for producing good quality wood pellet.

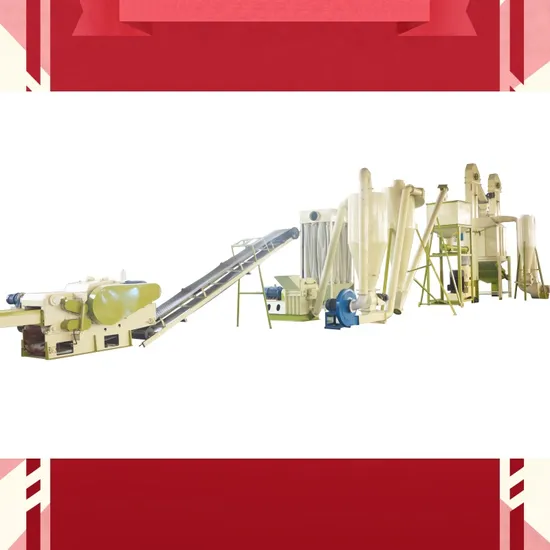

How to design Wood log pellet line?---Diagram picture explanation for wood pellet line
wood log is the most common raw material for making wood pellets.
So, how to design a suitable wood pellet production line with wood log as raw material?
First, a drum wood chipper is used to chip wood log into small size wood chips with 2.5-3.5cm.
After that, hammer mill/wood crusher is used to grind wood chips into sawdust (6-12mm).
Sometimes, a dryer is need ,as usually the MC of wood log is always about 30-50%,Under this condition, a dryer is need.
Then, a vertical ring die wood pellet mill machine is used to press dried, wood sawdust into good quality wood pellets.
Detailed explanation--Crushing Process

Step	Product name	Technical Parameter	Main machines for choosing
1	Raw material	*If you need to bare a tree of its bark, from 2 step; *If logs or other large size materials, from 3 step, be splited into wood chips *If small pieces, directly from 5 to reduce the size suitable for pelleting	/
2	Barking process	For making high quality pellets(optional)	Debarker machine
3	Crushing process	Raw materials (size: thickness >10mm and L * W >50 * 50mm), are crushed or shreddered into chips or small size.	1.Log splitter 2.Sawdust Chipper 3. Drum Chipper 4.Mobile Branches Grinder 5.Chaffer Cutter 6.Palm Fiber Making Machine
4	Dryer (with hot stove)	Rotary Dryer includes Stove and Main Rotary Dryer, which can reduce the moisture from 50% to 10%. Our stove is fueled by coal and biomass fuel, saving electrical energy largely. (client can build the hot stove by self, and we provide its drawing) The moisture content of raw materials must be controlled :10%-15%.	1.Rotary Drum Dryer 2. Air Flow Dryer
5	Grinding process	The chips or small size raw material are ground by hammer mill to particle size less than 5mm suitable for pelleting.	1.High efficiency Hammer mills 2.Multifunctional hammer mills 3.Wood Crusher 4.Straw Hammer Mill 5.Straw Rotary Chopper
6	Pelleting process	Pellet mill machine is the most important equipment : Press raw material into pellet.	1.TYJ series Ring Die pellet mills 2.Skj series Flat Die pellet Milll
7	Cooler Separator	Complete closed structure, stainless sieve, low noise and stable operating	Cooler Separator
8	Transport modules between the components	Elevating Conveyor, belt conveyor, screw conveyer
9	Pulsed dust collector	collecting dust, clean the pellet.	Pulsed dust collector
10	Packing Machine	In this process, we suggest our Semi-Auto Packing Machine to you. The weighting scope of this machine is 15kg-50kg per bag.	1.Ton Packing Machine 2.Automatic Packing Machine 3.wood Shavings Bales

Detailed explanation--Crushing Process
Detailed explanation--Grinding Process
Detailed explanation--Drying Process
Detailed explanation--Pelleting ProcessDetailed explanation--Cooling ProcessDetailed explanation--Packing Process After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary. In this process, we assemble our domestic Semi-Auto Packing Machine to you.
The Certifications of Biomass Energy Wood Pellet Line
Company Profile
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
Customer Visit and Exhibition
Tony Clients on site
Working Environment
After Sales Service
Questions asked Frequently
Q: What is a pellet mill/pellet machine?
A: A pellet mill/pellet machine is a machine that takes raw materials and shapes it into pellet form for multiple uses.
Q: What kind of materials can be pelletized?
A: Materials such as wood wastes, saw dust, corn cobs/stover/stalks, straw, switch grass, other grasses, distillers grain, paper, etc. Basically, most Biomass materials that can be ground down to sawdust form can be pelletized.
Q: What are pellets used for?
A: Pellets are used mainly for heating, animal feed, and animal bedding. Many other applications may apply.
Q: What size does my material need to be, to run through the pellet mill?
A: All materials must be 5mm or less.
Q: What size pellets can I make?
A: We have dies sizes from 4mm-12mm, depending on the machine or your raw materials.
Q: Do you ship worldwide?
A: Yes. We have sent machines to Canada, Europe, Asia, Southeast Asia, Africa, South America, Ireland and Australia.
Q: If I purchase a pellet mill, will you show me how to make pellets?
A: Yes, we do. We will instruct you how to use it via video or phone or engineer avaliable abroad if you need.
