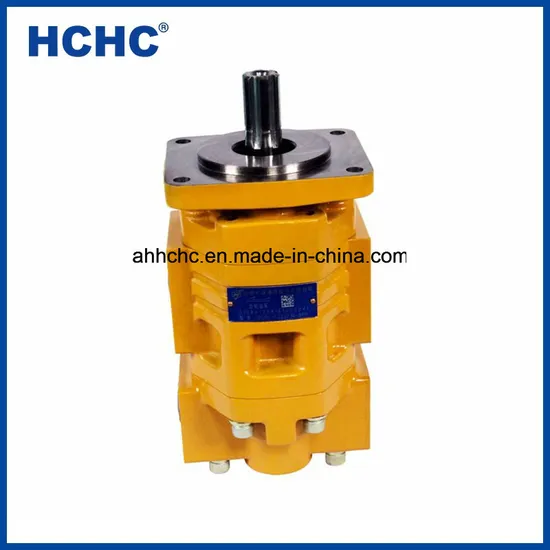

High Pressure China Hydraulic Double Gear Pump Cbgnl for Sale
| US$200.00-350.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CBGNL
Tooth Curve
Involute
Power
Hydraulic
Type
Gear Pump
Applications
Machinery Manufacturing
Certification
ISO9001:2008
Product Name
Hydraulic Double Gear Pump
Structure
Gear Pump
Rated Pressure
250 Bar
Maximum Pressure
280 Bar
Minimum Speed
800 Rpm
Rated Speed
1500 Rpm
Maximum Speed
2000 Rpm
Volume Efficiency
90 %
Warranty
1 Year
Certificate
ISO9001:2008
Transport Package
1 Piece / Carton
Trademark
HCHC
Origin
Anhui, China
HS Code
8413602220
Production Capacity
8000 Sets Per Month
Packaging & Delivery
Package Size
80.00cm * 60.00cm * 50.00cm
Package Gross Weight
24.000kg
Product Description
Performance Characteristics: ★ High strength cast iron material housing makes stronger bearing capacity.
★ The technology of radial asymmetric design makes long service-life and high reliability.
★ The joining type of inlet/outlet position: flange (F) and thread (L).
★ The type of shaft end: plain key (P), rectangular spline (H), SAE spline, involute spline.
★ The auto-compensation unit of axial clearance ensures the high volume efficiency.
| Model | Nominal Displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Volume Efficiency (≥%) | |||
| Rated | Max. | Min. | Rated | Max. | |||
| CBGNL-F63/F20-BF** | 63/20 | 25 | 28 | 800 | 1500 | 2000 | 90/90 |
| CBGNL-F63/F10-BF** | 63/10 | ||||||
| CBGNL-F50/F25-BF** | 50/25 | ||||||
| CBGNL-F50/F20-BF** | 50/20 | ||||||
| CBGNL-F50/F16-BF** | 50/16 | ||||||
| CBGNL-F50/F10-BF** | 50/10 | ||||||
| CBGNL-F46/F10-BF** | 46/10 | ||||||
| CBGNL-F40/F25-BF** | 40/25 | ||||||
| CBGNL-F40/F20-BF** | 40/20 | ||||||
| CBGNL-F40/F16-BF** | 40/16 | ||||||
| CBGNL-F32/F20-BF** | 32/20 | ||||||
| CBGNL-F32/F16-BF** | 32/16 | ||||||
| CBGNL-F32/F10-BF** | 32/10 | ||||||
