Automatic powerful axial fan flap slide valve type turnover plate type counterflow cooler soybean meal pellet cooling machine with vibration screen

Product Description

Automatic powerful axial fan flap slide valve type turnover plate type counterflow cooler soybean meal pellet cooling machine with vibration screen
Product Description
Introduction:
After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 15%, so we need use Cooler to reduce about 3-4% moisture, so the wood pellet is easy to store.
The wood and feed pellet cooling machine is mainly composed of closed air feeder, bulk device, cooling box and discharge mechanism.
The closed air feeder can be made of stainless steel impeller, and the closed air cooler top cover can be made of stainless steel, which has strong corrosion resistance and long service life.
Advantage:
1). Applied in material cooling for all degrees of granularities
2). Counter flow cooling theory; full cooling and even granularity
3). Special design of gliding valve device
4). Granularity temperature after cooling no higher than +3-5°C.
5). Steady operation and smooth discharging
Main data about the pellet cooling machine:

Model SKLN		1.1×1.1	1.4×1.4	1.6×1.6	1.9×1.9
Capacity (t/h)		2.5	5.0	7.5	10
Vibrational Frequency (times/min)		42	42	34	34
Amplitude (mm)		30	30	30	30
Cooling Time (min)		≤10	≤10	≤10	≤10
After Cooling Material Temperature (°C)		Indoor temperature +3~5	Indoor temperature +3~5	Indoor temperature +3~5	Indoor temperature +3~5
Power (kw)		0.75	0.75	0.75	1.1
Aspirating Capacity (m³/h)		4500	9000	13500	18000
Wind Pressure (mmH2O)		200	200	200	200
Dimension (mm)	Length	1925	2245	2560	2795
	Width	1340	1660	1846	2146
	Height	2220	3070	3290	3600
Weight (kg)		1250	1380	1650

More picture and details abotut the pellet cooling machine:
Counterflow Coolers with Two Different Replicas

Pellet cooling machine with multifunctional discharging hopper

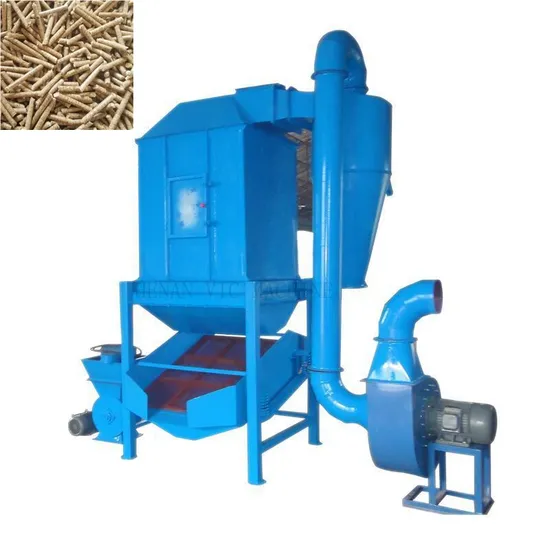

Pellet cooling machine with vibrating screen
Stainless steel top cover with stainless steel air-lock valve and 4 evenly spaced observation windows
Position selectable level gauge mounting hole and maintenance window
Lower support frame with turnover plate device
Powerful axial fans and silencer
Lower hopper
Vibration screening machine for removing dust, impurities and powder
Package:in wooden box and 20 or 40 foot containers
