Fully Automatic Glue Lamination Color Printing Napkin Tissue Paper Making Machine

Product Description

XY-OQ-7000A Fully Automatic Glue Lamination
Color Printing Napkin Tissue Paper Making Machine Product Description The Automatic Paper Napkin Machines are of high efficiency, reliable and easy to operate. The high speed paper folder is quite useful for those who deal in supplying big quantities,it's automatic folding, embossing, glue lamination(option), color printing(option) and automatic transferring.
Video Link: https://youtu.be/QiwcLlnq5DQ
Feature And Functions

Model	XY-OQ-7000A
Speed	1000 sheet/min(300m/min)
Layers of the paper	1-2 layers 15 - 21 g/ m², 1 layer paper need ≥19g
Material Diameter	1200 mm
Inner diameter of raw paper	76.2 mm
Embossing	steel to wool rollers
Color printing device	1-2colors, ceramic anilox roll, sealed ink box
Folding type	1/2,1/4,1/6,1/8
The host structure	wallboard structure.
The host drive	synchronous toothed belt drive, a flat belt conveying.
The control mode	frequency control of motor speed
Broken paper features	embossed cut paper stop position
Whet knife way	position manual adjustment, the pneumatic
Rear frame feeding	automatic feeding, type wide belf feeding, 1.2 meters in diameter can be put on the raw material
Counting	electronic counter, pneumatic hop
Power	380V 50/60Hz three phase
Automatic transfer function	Siemens PLC program control
Principle of automatic transfer	directional distribution, collection and counting position location points fold pattern
Automatic transfer setting	automatic transfer number adjustable, height between 35mm-120mm

Detailed Photos Jumbo roll stand & Web guiding device Color printing system Glue lamination system Embossing device Finished napkin tissue
Related Products XY-BT-298 Fully Automatic Napkin Tissue Packing Machine
Speed: 60-80 bags/min
Video Link:
https://youtu.be/KV7U9UJuhxg (1 stack/bag)
https://youtu.be/r-PfpmVJ11E (2 stacks/bag)
https://youtu.be/cwaepcMOegA (3 stacks/bag)
Packaging & Shipping
After Sales Service Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.

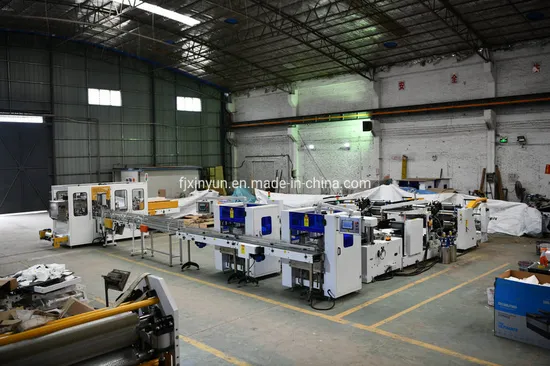

Company Profile Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to send us An Inquiry,we will reply you everything as soon as possible,
thank you.
