High Speed Occ Baler Machine Semi Automatic Baler

Product Description

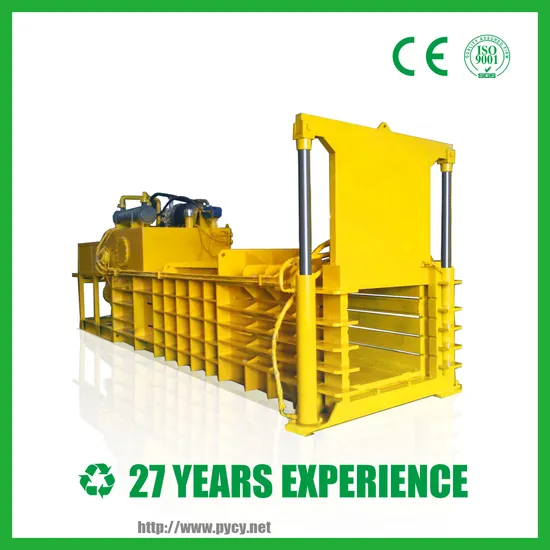

SEMI AUTOMATIC HORIZONTAL PRESS BALER
High Compaction Force With a Huge Filling Chamber to Produce High Density Bales.
PRODUCT DESCRIPTION
Semi Automatic Balers are Ideal for Businesses Processing Large Volumes of Waste Materials Including Cardboard, Paper, Shredded Plastic, Hard Plastic, Plastic Film, and PET. They are Typically Used In Factories, Waste Recyclers and Distribution Centers. They are Ideally Suited in Situations Where Vertical Presses are Much too Labor Intensive to Handle the Volumes of Material.
The Fully Automatic Balers are Usually Continuously Fed on a Variety of Systems eg Conveyor Belt, Forklifts or Suction Units. They are Suitable for Baling a Wide Range of Materials Including Paper, Cardboard, PET and Composite Materials.
QIANGYE Manufactures the Most Extensive Range of Semi-Automatic Balers in the Worldwide Market. With 7 Different Models across the Semi-Automatic Range, All Materials are Catered for.
As Semi-Automatic Horizontal Machines Process Waste against a Fixed Surface, Bale Density in these Machines often Exceed that of Automatic Balers. The Machines are Capable of Processing up to 6 Tons of Material per Hour.
STANDARD FEATURES INCLUDE
*USA Vickers Oil Pump.
*Bale chamber penetration
*With Eject Cylinder
*Left-hand or Right-hand Eject For Option.
*Hydraulic Reservoir with Regenerative Circuit.
*Japan Mitsubishi PLC and Chinese Famous Brand LCD Display.
*Sandblasted, Primed, and Painted Blue for Long Lasting Durability.
*Chamber with SWEDEN HARDOX 500 Replaceable Wear Liners (Track-Way Plates).
*Available with Integrated Conveyors with Rubber or Steel Belts for a Turn-key System.
*Strong and Aggressive Shear-blade Will Cut Most Materials.
*Bale Length Adjustable to Clients Needs and Optimise Transport Loads
*Hydraulic Portcullis Door for Quick Operation.
*Long Feed-opening For Bulky Materials
*High Compaction Force for High Bale Density
*Full Eject System for Easy Operation and to Avoid Cross-contamination.

Model	Capacity	Bale Weight	Bale Qty	Bale Size(L*W*H)
BYB-50T	0.5 to 1.2 Tons/hr	100 to 150 KGS	5 to 8 Bales/hr	(800-1500)*900*600
BYB-60T	1.2 to 1.6 Tons/hr	150 to 200 KGS	5 to 8 Bales/hr	(800-1500)*700*900
BYB-80T	1.2 to 1.6 Tons/hr	150 to 200 KGS	5 to 8 Bales/hr	(800-1500)*914*660
BYB-100T	1.0 to 2.0 Tons/hr	200 to 250 KGS	5 to 8 Bales/hr	(800-1500)*914*830
BYB-120T	2.0 to 4.8 Tons/hr	450 to 600 KGS	5 to 8 Bales/hr	(800-1500)*1100*830
BYB-150T	2.5 to 5.6 Tons/hr	550 to 700 KGS	5 to 8 Bales/hr	(800-1500)*1100*830
BYB-200T	3.0 to 6.0 Tons/hr	600 to 750 KGS	5 to 8 Bales/hr	(800-1500)*1100*830

Note: capacity is based on plastic materials. Bale size can be changed as per buyer's request.
INSTALLATION
If the buyer requires the seller to install the baler on site, the seller will send their engineers with salesman to install.
The buyer shall provide and bear round air ticket, Visa fee, accommodation, transportation and food at buyer's country etc. costs and expenses.
Once goods delivered, the seller will focus on the engineers' visa and once the buyer receives the machines, they will leave for installation.
Our engineers' installation is free of charge, which is USD0/per day;
The buyer is in charge of unloading the baler machine, putting baler machine in place, adding oil, and providing electricity; if the above mentioned points are well prepared, normally it will need one week for us to finish the installation and commissioning work.
Our engineer will provide free training to make sure safe operation on the whole set system.
WARRANTY & AFTER-SALE SERVICE
All above machines are guaranteed for 1 year after installation and commissioning. Within this warranty period, we will provide free major and minor spare replacement components for any malfunction due to manufacturer's defect. Every machine has been commissioned, debugged and passed our in-house inspection before leaving our factory. Technical support is available for the entire lifespan of the machine, if you need any assistance, we will provide solutions via various means like email, phone call, video conference etc. within 24 hours.
SHIPMENT
We can provide Door to Door delivery service.
CERTIFICATIONS
