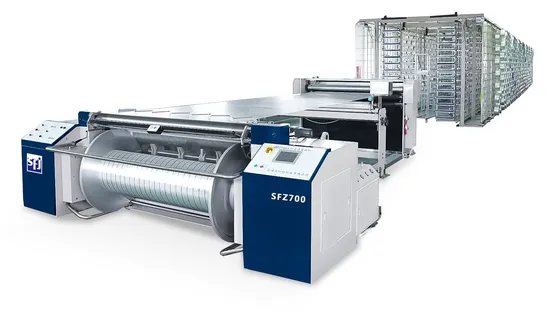

High-Speed Warping Machine for Fliament

Product Description

Product Description
This series of machines is suitable for various raw materials such as chemical fiber flaments, elastic filaments, composite flaments.etc.After multiple creels are evenly aranged by the reed, they are wound into warp shafts; The densiy of the warp shaft is uniformand fat, with the advantages of constant tension and high warping speed. it is a preparation equipment for the sizing machine orthe beaming machine.
Important parts
Creel Part
*According to customer needs, it can be made into fixed, flipped, or wheeled types.
*According to customer's site space, it can be made into two rows, three rows, four rows, sxrows and other threading fomms.
*Equipped with contact wire breaking stop device.
*Equipped with the six-ring tensioner (other forms of tensioner can be selected).
*Equipped with electrostatic elimination device.
Tension Frame Part
The clamping tension control method does not cause damage to the thread by sliding betweenthe thread and the rollers during operation, and high quality warp beams can be obtained for awide variety of thread types. In the event of a stoppage, the clamping rollers are disengagedquickly, so no damage to the yam is caused. Positive tension control of the winding tension bytension feedback from the tension frame keeps the tension constant.

Product Parameters
Warping machine

Top speed		700m/s
The Width of Take-up Working		1800mm	2000mm	2200mm	2400mm	2800mm
The Most Root Number of Warping		2000	2200	2400	2800	3600
Motor drive		7.5kw		11kw		15kw
Tension frame	Power	2.2kw		3.7kw		5.5kw
	Tension Control Rang	-150~+250N
	Tension Control Method	Clamping Tension Control
Control Scope of Winding Tension		40N~750n

Loading and Unloading System of Warp Shaft		Pneumatic device loading and unloading
Diameter of Coiling Plasma Shaft		ø800mm~ø1000mm
Display System		Touch-operated Displays
Oiling System		The Roller-sticker Oiling (Waxing) Method
Auxiliary equipment prepared by the user	Minimum air pressure	0.65Mpa		0.7Mpa		0.75Mpa
	Electrical equipment capacity	15KVA		20KVA		30kva

Creel part

Style	Fliped Type			Wheeled Type
Spindle Distance(mm)	270	400	420~470	400	420~470
Max. Bobbin Weight (Max)	6	14	20	14	20
Number of Columns per Frame	5	5	3	4
