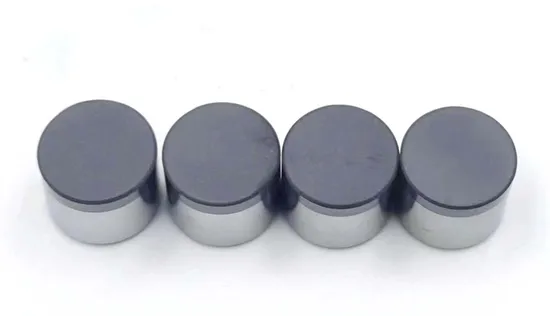

Durable 15.88/16.05mm Polycrystalline Diamond Compact for Mine Mining

Product Description

Planar composite sheet
NO.L/LT/LTA	Size(mm)
	diameter±0.3	Height±0.1	Thickness±0.2
0808	8.2	8	1.5
1008	10	8	1.5
1303	13.44	3.53	1.5
1308	13.44	8	L:2.0 LT:2.2 LTA:2.4 L: diameter protection; inner cone LT: main cutting; used in medium or soft formations LTA: main cutting; used in hard rock formations
1313	13.44	13.2
1608	15.88/16.05	8
1610	15.88/16.05	10
1613	15.88/16.05	13.2
1616	15.88/16.05	13.2
1908	19.05	8
1913	19.05	13.2
1916	19.05	16
1919	19.05	19.05

Profiled composite sheet
NO.		Size(mm)			Applicable fields
		diameter	Height	Thickness
Arc surface cutters	1304	13.44	4.5	3.0-3.5	Soft-hard homogeneous rock geology/- coal mine drill bits
	1308		8
Ridge cutters	1304		4.5
	1308		8
Triangular shape cutters	13		/
	16
	19
Composite cutters		9.4*9.4*8		2	Chain saw cutting
		12.7*12.7*8

Our advantages01,0ptimization of interface structure and improvement ofinterface stress
02,Reasonable material selection and unique manufacturing process to create high-quality products
03,The diamond layer is combined with the cemented carbide layer, which is sharp and has high penetration rate
4,Optimize the process or remove Co to increase high impact toughness and thermal stability
5,Implement customized products according to customer needs
6,High cost performanceTechnical parameterThe planar cutters mainly adopts a D-D key/12 petal type joint surface, whichhas high wear resistance and impact resistance, and is used in coal mines,shale qas, or conventional geological drilling, or oil and unconventional energydrilling in soft to hard complex formations with certain abrasiveness.
In addition to being used for drilling tools, special-shaped cutterscan also be used as cutting tools.
The specific structure can be customized and designedaccording to customer needs.
