Cargo Lift Goods Elevator Freight Elevator Heavy Loading

Product Description

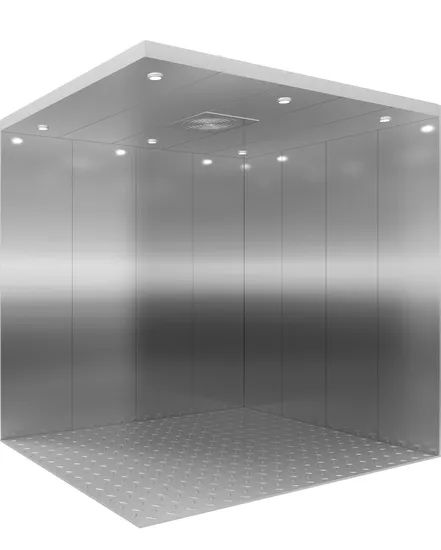

Freight Elevator Cargo Lift Heavy Loading
ATLAS-WT3/WT5 is a machine-roomless cargo elevator developed by our company, which adopts permanent magnet synchronous gearless host, variable frequency speed control drive, variable frequency door system, with environmental protection, energy saving, safety, reliability, stability and other characteristics, the overall layout is simple. Widely used in factories, production lines, warehouses, shopping malls, shopping centers, exhibition halls and other freight logistics places.
Solution of IFE Freight Elevator

Specification

ATLAS-WT3

ATLAS-WT5

Capacity (kg)

2000

2500

3000

3200

4000

5000

Speed (m/s)

0.5

1

0.5

1

0.5

1

0.5

1

0.5

1

0.5

1

Operation System

full collective selection operation

full collective selection operation

Driving System

VVVF

VVVF

Door Operator System

VVVF

VVVF

Traction Machine

Permanent Magnet Synchronous Gearless type

Permanent Magnet Synchronous Gearless type

Control System

CTRL71

CTRL71

Car Dimension mm width*depth

1800×2300

2000×2500

2300×2500

2300×2600

2300×3200

2500×3500

Shaft Size mm W*H

3000×2700

3300×2900

3600×2900

3500×3000

3600×3600

3800×3900

How to solve the problem of large logistics volume, Labor-intensive handling of freight?
1. Unmanned transportation
The interconnection communication between AGV smart car and elevator can be customized to exchange data, improve the efficiency of cargo transportation and realize intelligent factory.
2. Infrared light curtain safety barrier
The non-contact protection device forms a dense infrared cross light curtain, which effectively prevents the elevator from being damaged by another car when loading and unloading goods.
Customized function of electronic technology industry
1. Clean technology of car environment
According to customer's requirements, FFU unit and air shower unit with corresponding cleanliness levels can be selected to meet customer's cleanliness requirements.
2. Space ultraviolet sterilization
According to the comprehensive disinfection of the car space, the effective sterilization can reach 99%, effectively preventing the cross-spread of viruses and making the elevator space safer.
3. Negative ion fan purifies air.
The negative ion generator produces a large number of negative ions and a small amount of ozone at the same time, and it is easier to absorb various viruses and bacteria when they are combined.
