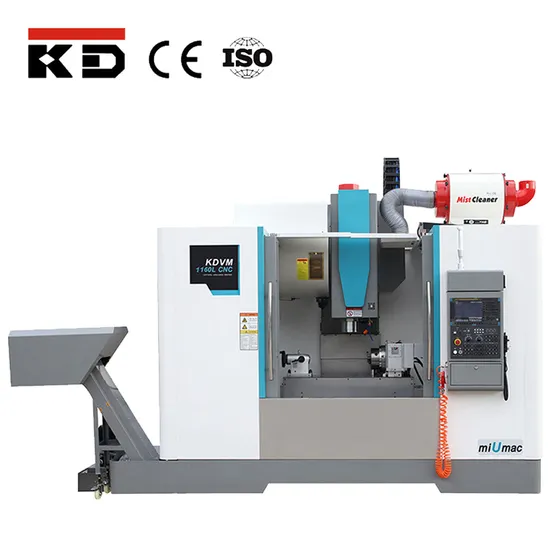

Vertical Machining Center Kdvm1160L with 600mm Y and Z Travel and Bt40 Spindle CNC Milling
| US$41,985.00-43,516.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KDVM1160L
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
X Travel
1100mm
Y Travel
600mm
Z Travel
600mm
Spindle
Bt40
Spindle Speed
50~8000rpm
Main Motor
11/15kw
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001,
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
523
Product Description
Product FeaturesProduct Specifications
| MODELS | KDVM1160L |
| TRAVEL | |
| X axis | 1100mm |
| Y axis | 600mm |
| Z axis | 600mm |
| Spindle center to column | 650mm |
| Spindle end to table | 120-720mm |
| TABLE | |
| Tablesize | 1200×600mm |
| T-slot (width×number×space) | 18mm×5×100mm |
| Max.table loading | 800kg |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 11/15kw |
| Spindle speed | 8000rpm |
| FEED | |
| X/Y/Z fast travel speed | 36/ 36/ 30m/min |
| Torque axis motors | 20/ 20/ 20Nm |
| ATC | |
| Tool number | 24 |
| Max. tool size (With adjacent tool) | Ф78mm |
| Max. tool size (Without adjacent tool) | Ф150mm |
| Max.tool length | 300mm |
| Max.tool weight | 8kg |
| Time (tool-tool) | 2s |
| ACCURACY | |
| Positioning accuracy for X/Y/Z | ≤0.008/0.006/0.006 mm |
| Repeatability | ≤0.005/0.004/0.004mm |
| Min.Input | 0.001mm |
| OTHERS | |
| Coolant pump motor | 0.55kw |
| Overall dimension (LxWxH) with auto conveyor | 3200x2300x2700 mm |
| Net weight | 6500kg |
