2.0 Cbm Prize Winning Multi Purpose Concrete Mixer Machine

2.0 Cbm Prize Winning Multi Purpose Concrete Mixer Machine

US$18,500.00
1-4 Pieces
US$18,399.00
5+ Pieces

Basic Info.

Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
15-18m3/H
Feeding Height
1400mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Customizeable
Wheelbase
2300mm
Total Weight
7500
Machine Size (Lxwxh)
5900X2350X3900 mm
Engine
Yuchai 4102
Power
78
Gearbox
280 Integral
Drive Axle
2.0t Wheel Side Deceleration Bridge
Tires
16/70 R22.5 Double Tire
Bucket Capacity
0.5 M3
Mixing Capacity
1.8 M3
Reduction Ratio
1:28
Rotating Speed
15 Laps/Minute
Travel Speed
25 Km/H
Axle Number Traction Type
4X4
Brand
High Rich
Transport Package
Container
Specification
1/40HQ
Trademark
High-Rich
Origin
Peoples Republic of China
HS Code
8705400000
Production Capacity
2000 Sets/ Per Year

Product Description

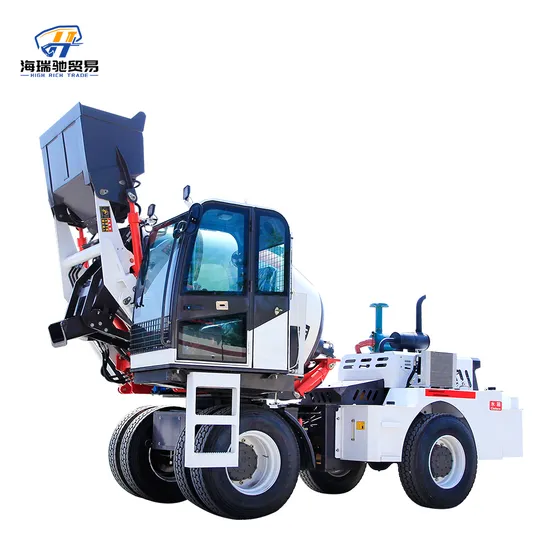

The self-loading concrete mixer is a device that combines the functions of an existing concrete transport truck and a mixing station. It can automatically feeds, measures, mixes and unloads concrete mixtures. It can mix while feeding, shortening the mixing time. Accelerate efficiency. The self-loading concrete mixer is equipped with a powerful engine and four-wheel steering, which provides high traction and helps the machine work in very soft clay site conditions. It is very convenient to load materials such as cement, aggregate, stone, etc. Raw materials are scattered on the construction site, with a self-loading mixer, you will never have to worry about transporting ingredients.
Efficient self-loading concrete mixers require only one operator to drive, load and mix raw materials on the move. With higher work efficiency and higher mixing effect.
At the same time, labor costs and working hours are greatly reduced. A self-loading concrete mixer can bring you huge benefits. Compared with traditional mobile concrete mixer trucks, self-loading mobile cement mixer trucks are more flexible.
Due to its shape, it is often called a snail car.
These trucks are equipped with cylindrical mixers to transport concrete mixtures. During transportation, the mixing tank will always keep rotating to ensure that the transported concrete does not solidify. After the concrete is transported, the inside of the mixing drum is usually flushed with water to prevent the hardened concrete from taking up space and making the mixing drum smaller and smaller.
The self-loading concrete mixer is a device that combines the functions of an existing concrete truck and a mixing station. The self-mixing concrete truck can automatically load, measure, mix, and unload materials.
The vehicle is four-wheel drive, which enables the mixer to produce concrete under harsh working conditions and ensures work efficiency.
The aggregates are weighed during the loading process to ensure that the required concrete is produced, improve production efficiency, and theOnly one operator is required to drive, load and mix the raw materials during the movement. The self-loading mixer is easy to operate, has high work efficiency and good mixing effect Product Description
Model HR3200L
Dimension (L×W×H) 5900*2350*3900mm
Weight 7500 kg
Performance
Mixing Drum Capacity Drum Capacity 3200L,Concrete Output: 2.0m³ Per Batch
Production Speed Production speed: 7tanks/h
Traveling Speed Low Speed: 0-25km/hour / High Speed: 0-40km/hour
Drum Rotation Horizontal rotation 270°
Transmission Type 4*4
Drive axle 2.0T wheel reduction axle
Tires 16/70-R22.5
Bucket capacity(m3) 0.5
Mixing capacity(m3) ≥1.8
Reduction ratio 0.06
Rotating speed(laps/minute) ≥ 15 laps/minute
Reducer Made in China
Gradeabiliy 30°
Engine
Model Yuchai 4102 supercharged
Manufacturer YUCHAI
Rated Power 78kw
Emission standards
