Plastic Pet Bottle Washing Recycling Machine

Product Description

Plastic Pet Bottle Washing Recycling Machine
Product Description
We can manufacturing the production line according to the customer requirement and final flakes quality requirements;
This production line is high automatic operating and save labor cost and low after maintenance. Our machinery is widely used in domestic and abroad in many countries;
Working flow:
Belt conveyor → Crusher→ Spiral pole →Heat cleaning machien→ Spiral pole → Soda delinking → Vertical dewatering machine → dry system → Cyclones Silo→control system
Features and application
1.We have the Bale opening and feeding system which and equally feeding the material save labor;
2.You can use the manually sorting system to selecting out different color bottles and non-PET material;
3.Metal detector is optional for you which used to take out any kind of metal from the PET bottles;
4.Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet griding can extension the blades use life, reduce the dust generation;
5.High speed Dewatering machine and the drying system can guarantee the final PET flakes moisture <1%;
6.The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content.
Technical parameters
Machine list:

Raw Material	PET Bottles
Capacity Model	500kg/hr, 1000kg/hr, 1500kg/hr, 2000kg/hr
Control	PLC touch screen
Machine List Components:
PVC Label Remover machine---Sorting system---PET Crusher machine---Flakes Floating washing tank---Hot Washing system,---Frication washing system---dewatering machinery and fin dust label separator machine---hot air drying system and the Packing system

Remarks: all information above is only for reference; please gather the exact data by contacting us. Picture For Reference

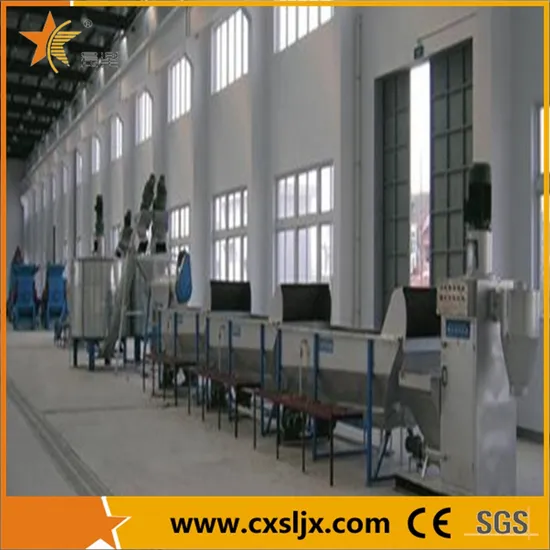

1.Machine Display:
2.Product Display:
3.Factory Display:
Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company. Chenxing is willing to work with you to create a future together.


FAQ
Our service:
1.Ability to provide the customized plastic extrusion solutions
2.Complete sales system covering the pre-sales, sales and after service jobs
3.Commissioning & installation service in customer plant
4.We can send you the video of the running machine. You are welcome to come to visit our factory,and see the machine running
5.We can design the machines according your requirements(materil,power,color),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years
FAQ:
Q:Where are the strengths of our company?
A: Our company regards "Integrity based, and customer oriented" as its business philosophy, and regards "set an example for the industry, and create excellent plastic machinery" as its business targets.
Also we have accumulated high-quality and stable suppliers, experienced technical team and first-class manufacturing team in the past over ten years.
Q: Why choose us?
A: we are the professional manufacture focus on Pipe Production Line/ PVC Machine For The Pipe Extrusion Line/ UPVC Pipe Production Line / CPVC Machine For The Pipe Production Line and etc...
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q:What is the voltage?
A: 380V 50hz 3 phase or any other voltage according to client's requirement.
Q:what services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
Questions for Buyers
Pls think about the following questions and then send your messeage. And we will offer you our quotation ASAP.
1. Could you tell me the size of the bottle you want to crush?(Or could you send me some photos about the bottle?)
2. Could you tell me the size of the flake you want?
3. Do you have the requirement to the capacity?(How many kgs you want per hour?)

CONTACT US:If you need to know more information about our company or our product,welcome to contact us and visit our factory! Our company hope to cooperate with you to create a better future! ! !
