Product Description

Product Description
"YIBU" considers that Fluidized Granulating machine is an organic combination of mechanical design and manufacture technology. Therefore hundreds of Granulating machines either for China or exported to USA, Japan, Indonesia, Iran and many other countries are designed in accordance with the process of raw materials.
We have manufactured decades specifications and 150 different machines to meet different needs. These practical experiences will be very beneficial to customers.
The operation is safe because the anti-static filter cloth adopted.
It's safe for operator if explosion take place, because explosion device is adopted.
No need corner. Therefore the loading and unloading are quick, light and clean, meet the requirements of GMP.
The powder granule in vessel (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Pharmaceutical industry	Tablet capsule, low sugar or no sugar granule of Chinese traditional medicine
Foodstuff	Cocoa, coffee, milk powder, juice of granulate, flavoring and so on
Other industries	Pesticide, feed, chemical fertilizer, pigment, dyestuff and so on
Drying	Powder or granule state of wet material
Coating	Protection layer, color, controlled release, film, or bowels solved coating of granules and pills

Product Parameters

item		unit	spec
			3	5	15	30	60	120	200	300	500	1000
vessel	volume	L	12	22	45	100	220	420	670	1000	1500	3000
	diameter	mm	300	400	550	700	1000	1200	1400	1600	1800	2200
capability	min	kg	1.5	4	10	15	30	80	100	150	250	800
	max	kg	4.5	6	20	45	90	160	300	450	750	1200
fan	velocity	m 3 /h	1000	1200	1400	1800	3000	4500	6000	7000	8000	13670
	pressure	mmH2O	375	375	480	480	950	950	950	950	950	1400
	power	kw	3	4	5.5	7.5	11	18.5	30	37	45	90
steam consumption		kg/h	15	23	42	70	141	211	282	366	451	750
compressed air expenditure		m 3 /min	0.9	0.9	0.9	0.9	1.0	1.0	1.1	1.5	3.0	4.0
weight of the main body		kg	500	700	900	1000	1100	1300	1500	1800	2500	3500
steam pressure		MPA	0.1-0.4
temperature			adjustable at the range from room temperature to 120
working time		min	45-90 decided in accordance with the properties of raw materials
collect rate		%	≥ 99
noise		dB(A)	≤ 75dB(A) when do installation, main machine is separated from fan.
size (L× W× H)		m	1.0× 0.6 × 2.1	1.2× 0.7 × 2.3	1.25× 0.9 × 2.5	1.6× 1.1 × 2.5	1.85× 1.4 × 3	2.2× 1.65 × 3.3	2.34× 1.7 × 3.8	2.8× 2.0 × 4.5	3× 2.25 × 5.0	4× 2.8× 7.2

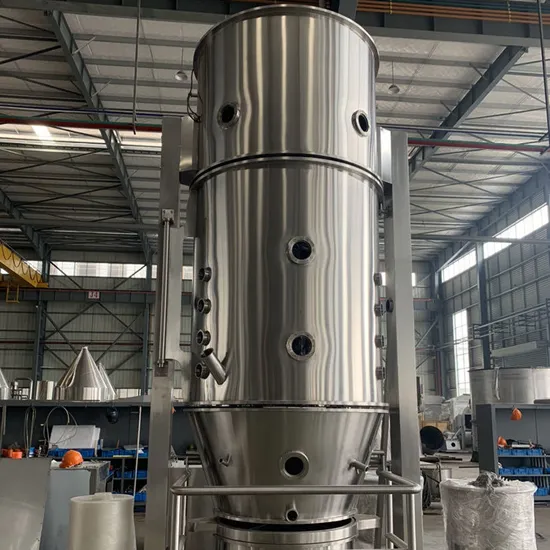

Detailed Photos
Company Profile
Changzhou Yibu Drying Equipment Co., Ltd is a leading manufacture of drying, mixing, granulating equipemnt in the main land of China, a specially- designated enterprise of China Association of Pharmaceutical Equipment and China General Chemical Equipment Corporation, covers more than 50, 000sq. M, holds RMB 38 million of fixed assets and has more 180 sets of special processing equipment and powerful technical force, own the provincial famous trademark "YIBU". It can produce more 1, 500 stes of different. At present, there are 28 kinds and over 160 of specifications and varieties. The credit level is AAA for the passing days. ISO9001 & ISO1400 are approved.
The founder, Mr Zha Guocai devotes research, manufacture, production and business of drying equipment for over thirty years, holds the post of Deputy Director-General of China Drying Equipment Association for a long time.
The company pays much attention to science and technology renovation. First or later, it has cooperated with the institutes that are Shanghai, Wuhan, Chongqing and so on, and cooperated with Shenyang Chenmical Institute, Ministry of Chemical Industry, Qinghua University, Shanghai transportation University, Dalian Science and Technology University. Therefore the company can put 3-5 new varieties into the market every year. In 1998, through approval of state relevant departments, the company set up China Research Center of Drying and Granulating, that can research new process and develop new technology and provide new products for pharmaceutical, chemical and foodstuff industries. We have many testing machine in our lab for to make trials for clients.
We've sold equipment to USA, Mexico, Columbia, Guatemala, Brazil, Peru, Australia, New Zealand, Ghana, Russia, Cyprus, Greece, Iran, Indonesia, Philippines, Korea, Japan, Taiwan, Hongkong and so on totally nearly 50 countries and districts around the planet.
