5m3 10m3 20m3 Liquid Oxygen Nitrogen Argon Carbon Dioxide CO2 Gas Pressure Storage Cryogenic Tank Container

Product Description

https://qd-ruiming.en.made-in-china.com/product-list-1.html

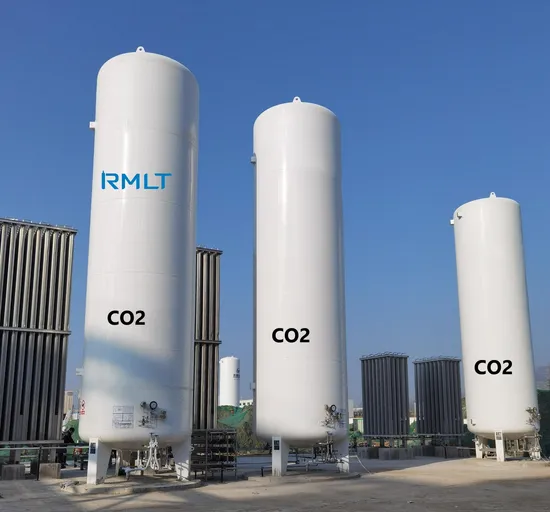

Cryogenic Liquid tank
Product Description
Liquefied gases are used in a wide range of applications, including metal processing, medical technology, electronics, water treatment, energy generation and the food industry. Today, more and more of these industrial gases are being delivered to customers in liquid form at cryogenic temperatures, enabling them to be stored on site for later use. We offer cryogenic tanks for the following liquefied gases:
Liquid nitrogen (LIN)
Liquid argon (LAR)
Liquid oxygen (LOX)
Liquid carbon dioxide (LCO2)
Liquid natural gas (LNG)
Liquid nitrous oxide (LN2O)
Our tanks can be used for a wide range of applications. They are standardised to ensure smooth distribution logistics and cost-efficient series production.
Each tank is vacuum-insulated and can be delivered as a vertical or horizontal installation. The inner vessels and piping are made of stainless steel to ensure high-grade cleanliness - particularly important for the food and electronics industry. The outside shell is specially coated and a vacuum-perlite system with a molecular sieve adsorbent is applied to ensure outstanding insulation.
Our tanks can be used for a wide range of applications. They are standardised to ensure smooth distribution logistics and cost-efficient series production.
Each tank is vacuum-insulated and can be delivered as a vertical or horizontal installation. The inner vessels and piping are made of stainless steel to ensure high-grade cleanliness - particularly important for the food and electronics industry. The outside shell is specially coated and a vacuum-perlite system with a molecular sieve adsorbent is applied to ensure outstanding insulation. Product Parameters

Size	Full capacity	Effective capacity	MAWP	Diameter	Height	Weight	Vaporization Rate of LN2	Gas Supply amount
	:m³	:m³	:MPa	:mm	:mm	:kg	:%/d	:m³/H
VT6/0.8-GB	5.41	5.14	0.8	1816	5200	4740	0.65	200
VT6/1.6-GB	5.41	5.14	1.6	1816	5200	5300	0.65	200
VT11/0.8-GB	11.14	10.58	0.8	2216	6400	7250	0.5	450
VT11/1.6-GB	11.14	10.58	1.6	2216	6400	8150	0.5	450
VT16/0.8-GB	15.96	15.16	0.8	2216	8400	9280	0.53	450
VT16/1.6-GB	15.96	15.16	1.6	2216	8400	10530	0.53	450
VT21/0.8-GB	20.77	19.73	0.8	2216	10400	11400	0.5	450
VT21/1.6-GB	20.77	19.73	1.6	2216	10400	13000	0.5	450
VT31/0.8-GB	31.12	29.56	0.8	2920	8820	17470	0.4	1000
VT31/1.6-GB	31.12	29.56	1.6	2920	8820	20460	0.4	1000
VT50/0.8-GB	49.22	46.76	0.8	2924	12820	24310	0.35	1000
VT50/1.6-GB	49.22	46.76	1.6	2924	12820	29230	0.35	1000
VT59/0.8-GB	58.27	55.36	0.8	2924	14820	28430	0.32	1000
VT59/1.6-GB	58.27	55.36	1.6	2924	14820	34720	0.32	1000

Production
Installation Instructions
Packaging & Shipping


Related products
Our Advantages
Our Advantageses:
1. Fast delivery : 30-40 days since order confirmed
2. Professional and perfect upstream and downstream supporting services
3. We Supply Systems Solutions - Perfect for many applications: LAR, LIN, LCO2, LN2O, LC2H4 ,LC2H6,ECT.
4. Onsite Filling- No exchanges & tanks are filled onsite
5. Cost Savings- No cylinder handling or need for inventory management
6. Under the epidemic, remote rescue can be realized
Any questions or demand , pls feel free to contact with us.
