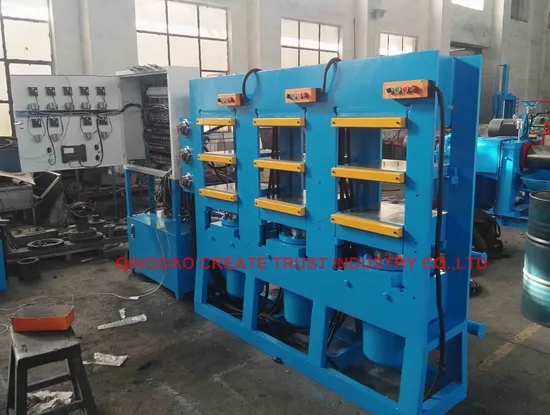

Multi Link Rubber Vulcanizing Machine with Siemens PLC Control System (CE/ISO9001)

Product Description

1- Model No.: CX100
2- Name : Plate vulcanizing press, Rubber moulding press, Rubber press machine, Rubber vulcanizing machine, Rubber vulcanizing pres,Rubber curing press,Plate vulcanizing press,Plate vulcanizing machine,Rubber hydraulic press.
3- Usage :The machine applies to vulcanizing various kinds of model rubber and plastic products as well as non-model products.
4- FEATURES
Material of steel plate:
We use hight quality carbon steel Q-235C ,thickness is 90 mm, other supplier is only 80 mm,,after mirror polishing,and chrome plated. This make plate very strong.

Material of plunger :
Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.

Hydraulic system:
the professional hydraulic components, stable and reliable and quality . We use famous brand "Tainwan KLC" .Pressure sensor control system pressure and never off pressure.

Electronic control system (PLC):
Electrical components use "Mitsubishi or SIMENS "brand,automatic switching mode,with auto rising,auto-fill pressure,curing time alarm functions.

Emergency stop button:
When emergency happens,just press the emergency stop button,the machine will stop immediately.
Our vulcanizing press is equiped with automatic controling temperature and pressure, automatic alarm ,digital readout and son on.
Other electric parts are from SIMENS.
5- Parameters below :

Model	XLB-D400x400	XLB-D500x500	XLB-D600x600	XLB-D800x800
Total Pressure	0.63MN	0.63/1.0MN	1.0MN	1.6MN
Max Hydraulic Pressure	16Mpa	16Mpa	16Mpa	16Mpa
Heating Platen Size	400x400mm	500x500mm	600x600mm	800x800mm
Space of Heating Platen	125mm	125mm	125mm	125mm
Working layers	2	2	2	2
Plunger Stroke	250mm	250mm	300mm	300mm
Total Heating Power	9Kw	10.8Kw	18.9Kw	27 Kw
Pump Power	1.5+1.1kw	1.5+1.1kw	3+3kw	3+3kw
Dimension	1680x430x1500mm	1780x530x1600mm	2260x630x1800mm	2300x1020x2000mm
Weight	1500kgs	2000kgs	3500kgs	4500kgs

PLC SIMENS CONTROL:
Back view :
6- Service of us :
We can design whole line machine for EVA sheet production. We also provide techncial for EVA sheet production, our engineer have rich experiences in this area. we go to your facotry to help intallation and guide the worker .
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
