Metal Press Brake Punches Mold Bending Machine Tool
| US$500.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Warranty
1-year
Condition
New
Certification
ISO 9001:2000
Automation
Manual
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Model No.
Press Brake Tooling
Driving Motor Type
Permanent Magnet
Processing Method
Forming Tool
Surface Treatment
Heat Treatment
Processing Equipment
Mills, Planers, and Grinders
Coating
Titanium Black Coating
Parts Detection Method
Geometric Detection
Applicable Model
Amada Machine Tool
Milling Speed
High Speed
Manufacturing Technology
Automation Technology
CNC Machining Center
CNC Grinding Machine
Center Accuracy
+-0.02mm
Vertical Accuracy
+-0.02mm
Optional Laser Hardening
HRC60
Optional
Black Coating
Transport Package
Express Delivery and Air Freight
Specification
835mm
Trademark
SHMT
Origin
Jiangsu China
HS Code
8207300090
Production Capacity
100000
Product Description
Product Description| 1).Available Press Brake Machines Brand | Amada, Atlantic, Adira, Baykal, Beyler, Darley, EHT, Ermaksann, Durmazlar, Bystronic, Gasparini, Guifil, Haco,Imal, LVD Ivan, LVD, Mecos, Megobal, Promecam,Trumpfwila,Salvagnini, Safan, Weinbrenner,Yawei, Yangli,JFY,ACL,YSD,ZYMT,ADH,etc... | |
| 2).BHT Tooling Advantages | Taking into consideration our clients wishes, every day we work to satisfy our clients' needs, to increase our product list and tools quality. | |
| √ SHMT produce bending tools from high speed steel high quality steel(42CrMo=SCM440=42CrMo4=4140), working surfaces are preciously grounded, standard will be whole body Total Hardening, the hardness can reach HRC47; | ||
| √ We can do surface hardening on bending tools by Laser, the the hardness can reach HRC60. | ||
| √ SHMT have we have more than 20 years experience in bending tooling manufacturing. | ||
| √ SHMT bending tooling factory total have 116 people, total have around 150 sets processing machines for bending tools. most processing machines are CNC and from China local top manufacturer, but also we have 12 sets of processing machines from Japan and Europen; | ||
| √ SHMT bending tool accuracy: Center Accuracy:±0.02mm, Parallel Accuracy:±0.02mm, Vertical Accuracy:±0.02mm | ||
| √ Every special bending tooling will be tested by our press brake machines and have the testing samples before sending to our clients. | ||
| 3). TYPES OF PRESS BRAKE TOOLS | Tools for press brake are considered "safety first", and dies with fall prevention grooves are now standard. | |
| Typical punch clamp types | ONE TOUCH TYPE / WITH SAFETY GROOVE | |
| Bending edge shapes | STANDARD PUNCH,GOOSENECK PUNCH,STRAIGHT PUNCH,SASH PUNCH,HEMMING PUNCH,THICK PLATE PUNCH | |
| V width selection and basic setting of ir (inner R) | ||||
| V-WIDTH | ||||
| Bending Method | V-Width | Features | ||
| Bottoming | Material thickness | ecause of the bending process that is used most often, the patterns for V-grooves are also finely divided. | ||
| 0.5 - 2.6 | 3.0 - 8.0 | 9.0 - 10 | ||
| 6×t | 8×t | 10×t | ||
| Partial Bending | 12 - 15×t | Since an arbitrary angle bending is taken into consideration, the V-width is set so that bending accuracy is easily stabilized. Approximately twice as much as bottoming. | ||
| Coining | 5 - 6×t | The purpose is to reduce inner radius and reduce the amount of bite at the tip of the punch. | ||
| iR (inner radius) | ||||
| Bending Method | iR (inner radius) | Features | ||
| Bottoming | ≒V/6 | Base values for maintaining safe and stable accuracy, such as punch tip radius and spring-back amount. | ||
| Partial Bending | When high accuracy is required, use a bottoming type tool. | |||
| Coining | Care must be taken when using a bottoming die because iR increases and extra pressurization is required. | |||
| Material | 42CrMo |
| Hardness | 45-50HRC |
| Option | Black-antirust |
| Standard | Segmented, Arc, International Standard, Three Point, Non-Streaking, Adjustable Groove, Special, etc |
| Available Bending Machines Model | AMADA RG100, TRUMP-TruBend 5000, LVD-HD, FINN-POWER, KOMATS, STRIPPIT, GASPARINI, TOKYO, ACCURPRESS, YANGLI MB8-100X, YAWEI PBR-100, JFY PR6C |
| Press brake Forming tooling | Closed Louver tool, Opened Louver tool, Emboss tool, Bridge tool, LOGO tool, Knockout tool, No indentation tool, RIB tool, Hinge forming tool, Joggle tool, To flatten tool, R Bending, Z-Bent tool, Multi-V Die, Thick plate bending |
| Option | Coating with TICN or Tin |
| Delivery time | 5 - 10 Days |

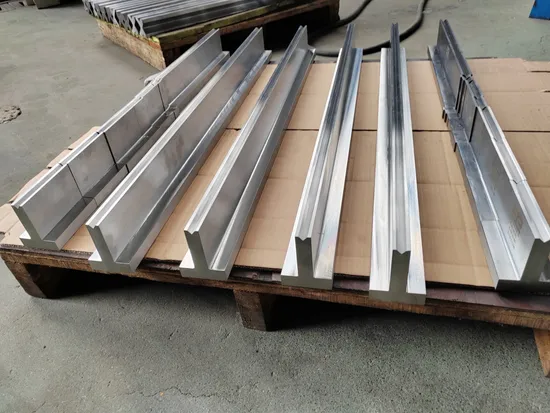

PRODUCTION SHOW
FAQ Q: Are you trading company or manufacturer ?
A: We have 11 year experience in the production of the factory, we are Dongguan mold production base. For the customer we offer the price of competitive, professional production, adequate supply, high production efficiency, greatly expanding the interests of customers.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the tools are standard. Or it is 15-20 days if the tools is special forming shape.
Q: Do you provide samples ? is it free or extra ?
A: We do not provide samples.
Q: Do not receive the goods after payment or product delivery error how to do?
A: The customer is paid to ****** One Touch's account at the time of payment, and ****** will guarantee a full refund when you encounter both cases
Q: How is your after-sales service?
A: After the delivery of mold quality problems, replacement(except man-made damage)
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
