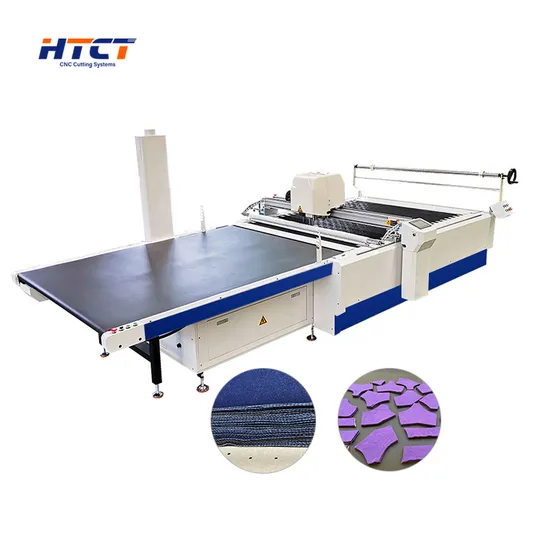

CNC Industrial Cutting Table Cloth Fabric Cutting Machine with Spreader and Table

Product Description

Automatic CNC Multi Layer Cut Textile Garment Apparel Cutter Fabric Cutting Machine For Cloth Product Parameters

Product Series	HT-MLC
Model	MLC-1725	MLC-2030	MLC-2330	MLC-2630	Customizable Model
Cutting area (W*L)	1.7m*2.5m	2m*3.0m	2.30m*3.0m	2.6m*3.0m	Size can be customized
Production Capacity	650 pairs of pants per hour, 500 pieces of clothing per hour, 6000 pieces of medical gowns per hour
Cutting length	No limitation with automatic fabric feeding system
Cutting Thickness	0.1mm--110mm (compressed fabric, after vauum adsorption)
Spreading length	Maximum 50m with spreading table
Cutting precision	± 0.1mm

Maximum Speed	0-70m/min
Total Power	18KW
Power Supply	220V/380V , 50/60HZ
Cutting style	Straight Knife Continous Up-down Cutting
Knife granding	Automatic spin double-sided sharpening device
Blade cooling	Automatic temperature control air-cooled system
Adsorption method	Frequency conversion vacuum constant pressure control mode
Compressed air	550KPa , 160L/min

Operating panel	Touch control panel
Operating System	Windows OS
System Features	Supports the overall rotation of the nesting chart, knife-edge conversion, single-piece recutting, one-key deletion of overlapping areas (supports removal of repeated lines), residual cloth cutting
File Format	cut , dxf , plt , iso ,pdf , ggt , gbr,hpgl
Applied Materials	Fabric,Textiles,Lace,Car interior,Fur,Leather,Denim,Calico,PVC,Foam,Cardboard,Acrylic,Curtain,Carpet,,Gesket,etc.
Standard Fitting Features	1.Automatic adjustment of cutting speed 2.Secondary compensation for cuttingvacuum 3.Inductive safety protection device
	4.Automatic feeding platform 5.Air flotation workbench * 14 sheets
	6.Automatic spreading machine * 1 (single pull, double pull, cutting, automatic edge alignment, etc.)

Other functions	Mobile cutting device, automatic feeding device, pattern scanning, adsorption bed
Main components	1. Automatic multi-layer cutting bed 2. automatic cloth spreading machine 3. air floatation table

Main Accessories	Motor	Guide Rail	Switch	Knife Drive	Conveyor Belt
	Panasonic	HIWIN	DELIXI	maxon	German

Product Description
HTCT Automatic Multi Layer Fabric Cutting Machine
--This machine is a cutting flatbed specifically designed for fabrics,fully automatic computer control, one click design and fabric layout, cutting thickness 0.1cm-11cm,suitable for multi-layer cutting.
-- Maximum cutting speed 80m/min,cutting accuracy within 0.1mm,greatly exceeding the efficiency of manual labor.
--With intelligent algorithm fabric layout software, it can achieve a material utilization rate of over 98%. --With automatic material receiving and feeding, saving manpower,the cutting process is smokeless and odorless
Automatic multi layer fabric cutting machine The MLC Pro is engineered and manufactured in the China to automatically pull stacked material plies from the spreading table to a modular, bristle-block conveyor bed for reciprocating knife cutting of patterns.
The MLC Pro can cut up to 7 / 9 / 11cm of compressed material goods.
The MLC Pro has been engineered to meet the demands of clients in growing market segments like industrial fabrics and composites industries; customers cutting traditional -as well as-modern technical materials like Kevlar, fiberglass, nonwoven polyesters, foam-backed vinyl and other industrial fabrics.
HTCT is committed to manufacturing customized industrial solutions proven to be simpler to operate and less expensive to maintain.

MLC Pro enables you to : 1.Drive down cutting cost per product
2.Maximize productivity at high capability
3.Increase material savings
4.Achieve a high OEE rating
5.Optimize plant productivity per m2
Intelligent Cutting Head
1.Quick change knife and sharpening disc
2.Reciprocating knife provides precise vertical stroke cutting
3.Intellicut knife control software ensures high-quality, precise cuts from top to bottom ply
4.Cutting up to 11cm of compressed material
5.Single coated diamond disc provides the perfect cutting edge. Sharpener can 6.be adjusted to user defined angle.
7.High-speed-single or dual pneumatic drills
8.Internal crank cooling system reduces heat and wear/tear
9.Easy access to knife system & assembly parts simplifies daily maintenance procedures
10.Direct drive knife system for fewer moving parts and less wear and tear
Blade wear monitor
11.Control of corners to minimize fusing
Improve production speed and reduce costs
-- Compliant with Industry 4.0, our best-selling cutting equipment can be used for all manufacturing models and fabric types(lace, denim, woven, knit or footwear textiles), to help you produce at optimal speed and efficiency. No matter the production volume, you can still achieve operational excellence and minimal cost per cut part. We offer is a pioneering combination of marker-making, patternmaking, spreading and cutting solutions. --We welcome you to send us your samples(the postage can be borne by us), and we will live stream the cutting process of the samples and the operation of the machine for you on site,for free. Contact us and have a try ! Efficient Cutting Workflow
Simple&Efficient Operation Process
--The HT2024-cutting software system we developed can design a complex set of clothing templates within 3 seconds with just one click. --Based on thousands of fabric cutting databases, our super algorithm can achieve one click automatic material layout, provide the optimal cutting path, and achieve a fabric utilization rate of up to 98%. --One click transfer of layout graphics files to the cutting machine for automatic cutting. After cutting, the material is automatically transported to the receiving table.
--The entire process operation only requires no more than 2 workers.

We provide three types of operation service tutorials:
1. Local on-site installation and training for engineers;
2. 7 * 24-hour remote live streaming guidance for installation and operation;
3. 40 GB video operation tutorial.
Our Advantages
Reform is the key to embracing the future,HTCT has been striving for this for 5 years,dedicated to improving the production efficiency of the flexible material cutting industry and serving global practitioners.We are almost the industry leader.
CNC fabric cutting machine is a trend to replace traditional cutting methods under the current wave of Industry 4.0 reform.Compared to traditional manual cutting and laser cutting, CNC fabric cutting has a completely disruptive advantage.
Laser cutting
Laser cutting will cause yellowing and scorching of the fabric & leather edges, requiring secondary processing, and will cause damage to the fabric & leather .also laser cutting will generate a large amount of smoke.
HTCT cutting
· Fully automatic operation, saving labor. · Intelligent layout with high material utilization
· No heat source blade cutting, precise and environmentally friendly
Manual cutting
The cutting accuracy of manual cutting is poor and the material layout efficiency is low, resulting in a large amount of material waste.Most important, manual cutting requires a lot of labor and time.
Details and Sevice
All parts are from top tier brands such as Omron, Delixi, Panasonic, etc., enjoy a warranty of more than 3 years.


High strength integrated frame body, with load-bearing capacity of over 3 tons, does not require splicing or secondary adjustment during installation and use, can be used immediately upon power on.
Replaceable bristle bricks with low cost, and the vacuum pump below tightly adsorbs the fabric.
High efficiency max 18.5 KW vacuum pump, capable of continuously variable speed, adjustable adsorption force, and negative pressure in the cutting area up to -22Kpa.
Panasonic servo motor, powerful, cutting machine equipped with 4-5 motors working simultaneously, cutting speed ultra fast, precise control.
China Taiwan's HIWIN stainless steel guide rail is non slip and can achieve μm level positioning accuracy; Load capacity can reach over 1 ton, durable and long-lasting.
All components come from top international brands such as Delixi, Omron, Siemens, Panasonic, etc,stable and durable, and all enjoy quality assurance.
1. HTCT after-sales service team has more than 25 engineers.
2. There are 3 engineers at least to serve one agent/client, all of them can speak English.
3. We support full user manual, using video and photos.
4. We support remote assistance for helping you to install and use the software.
5. We support 7*24 hours online guide and service.
6.Our machine is with 3 years warranty, except the felt, cutting tool and knife blades, during this time, if there are any problem, we will change the new one for free by DHL, and for the cutting tool, we will repair for free within one year.
7. We promise to send out the replacing parts within 24 hours.
8. We will make service group for you, including HTCT sales personnel, engineers, sales manager, sales director and you (or your staffs), If you have any problems, we will response within 1 min.
9. HTCT software free upgrade for life.
Factory Profile
Shandong HTCT CNC Equipment Co., Ltd.
HTCT founded in 2019, is a 5-year experienced factory specializing in the production and research and development of fabric cutting machines. --The factory is located in Jinan High tech Zone, covering an area of 20,000 m2. Our product services include clothing fabric cutting, leather cutting, multi-layer fabric cutting, home textile fabric cutting, automotive interior cutting, advertising material cutting, composite material cutting, etc. We are a comprehensive flexible material cutting solution service provider and manufacturer.
--At present, we have 25 R&D engineers, 149 production technicians, 50 market service experts, and 31 overseas after-sales engineers. Our product services cover more than 80 countries and 1750 customers worldwide, with an annual output value of over 50 million US dollars.
--We specialize in providing customized product services based on customer production situations to help you solve production problems.
