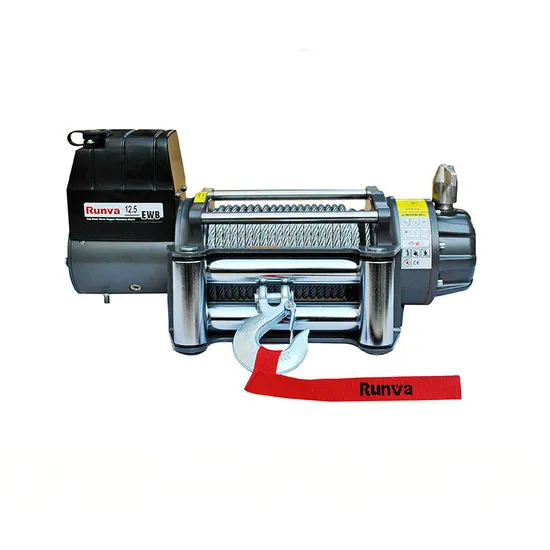

Ewb12500u/S/F/a 5.6ton Electric Winch Special for off-Road Rescue

Product Description

12500 Lbs Offroad Electric Winch With Super PerformanceEWB series winch are reliable performance electric winches with innovative brake. High-efficient transmission delivers high pull-in speed and low noise. All-stainless out-installed components ensure these winches work more durable.
12500 lbs Offroad Electric Winch Item No. EWB12500
Features:
All-new patented waterproof design meets IP67 standards.Innovative brake inside the gearbox, offers excellent safe, reliable performance.Stainless steel rotary clutch for smooth and convenient operations.Stainless steel out-installed screws.Exclusive brake design inside gearbox prevents rope damage with the drum over-hot after long-time operation.Copper connection sealed control pack with elegant appearance.High -efficient transmission delivers 9m/min pull-in speed and power saving.Over-current protection available for safe winching.Compression-resisted rubber hand remote control.EWB 12500

Specification:
	Rated line pull		12500 lbs (5670 kg)
	Motor: Series wound		12V:Input: 5.9kW / 7.9hp
			Output: 2.4kW / 3.2hp
			24V:Input: 4.8kW / 6.4hp
			Output: 3.1kW /4.2hp
	Gear reduction ratio		228:1
	Cable (Dia.× L)		Ø13/32″×83.7 ' (Ø10.2mm×25.5m)
	Drum size (Dia.× L)		Ø2.48 "×8.5 " (Ø63mm×217 mm)
	Mounting bolt pattern		10 "×4.5 " (254mm×114.3 mm) 4-M10

Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull Lbs. (kg)	Line Speed Ft/min (m/min)		Current A			Layer of cable	Rated line pull Lbs. (kg)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC		1	12500(5670)	16.1(4.9)
0	32.8 (10.0)	34.8 (10.6)	75	60		2	9776(4434)	36.4(11.1)
3000(1361)	15.7 (4.8)	17.4 (5.3)	190	85		3	8026(3641)	60.0(18.3)
9000(4082)	8.2 (2.5)	10.2 (3.1)	360	150		4	6808(3088)	83.7(25.5)
12500(5670)	5.2 (1.6)	6.9 (1.9)	490	200

ITEM	EWB 12500U	EWB 12500F
Overall dimensions	23.7″×6.3″×10.0″	23.7″×6.3″×9.8″
(L×W×H)	601mm×160mm×254mm	601mm×160mm×248mm
Net weight (Ibs/kg)	94.6lbs / 42.9kg	97.2lbs / 44.1kg

5.6t electric winch for off-road rescue
EWB12500U/S/F/A
Rated tension 12500LBS (5.6T)
Working speed 10m/min(12V)
10.6m/min(24V)
Rope capacity 25.5m
Specification of steel wire rope Φ 10.2*25.5m
Number of steel wire rope layers four
Rated voltage 12V/24V
Full load current 490A (12V)
200A (24V)
Motor power Input 5.9kw output 2.4kw (12V)
Input 4.8KW output 3.1kw (24V)
Reduction ratio 228:1
Installation hole spacing 254MM * 114.3mm 4-m10 bolt
Overall dimension
(length * width * height) 601mm*160mm*270mm
Net weight 42.9Kg
20000LBS 3MT - 9Ton Electric Winch EWB20000U for Tow Truck Off-Road RescueModel: ewx8000u
Tow Tension: 3.6 tons
Wire rope: φ 8.3X29m
Voltage: 12 / 24V
Overall dimension (mm): 540x160x254
Installation dimension (mm): 254x114.3
Model: ewn15000
PullTension: 6.8 tons
wire rope: φ 11X25.5m
Voltage: 12 / 24V
Overall dimension (mm): 593x226x262
Installation dimension (mm): 254x114.3
Runva Runhua brand 9t winch electric winch special for off-road rescue EWB20000Features:Robust steel forged bracket and full alloy gear reducer for engineering applicationThe fastest no-load speed of 8.5m/minPatented ratchet-paw brake prevents the drum heatingIP 67 waterproof designHall overload protection optional to prevent damage

Rated line pull	20000 lbs (9072 kgs)
Motor: series wound	12V:Input: 5.5kW / 7.4hp; Output: 2.9kW / 3.9hp 24V:Input: 6.1kW / 8.2hp; Output: 3.1kW / 4.2hp
Gear reduction ratio	370:1
Cable (Dia.× L)	Ø15/32″×87 ' (Ø12mm×26.5m)
Drum size (Dia.× L)	Ø3.46 "×8.5 " (Ø88mm×217mm)
Mounting bolt pattern	10 "×4.5 " (254mm×114.3 mm) 10 "×6.5 " (254mm×165.1mm)

Pull, Speed, Amperes, Volts(First Layer)					Line Pull and Rope Capacity in Layer Line Pull
Line Pull Ibs.(kg)	Line Speed ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs. (kg)	Total rope on the drum ft (m)
	12DC	24DC	12DC	24DC	/	/	/
0	26.2(8.0)	27.5 (8.4)	60	35	/	/	/
6000(2722)	10.5(3.2)	10.8(3.3)	200	115	/	/	/
10000(4536)	7.87(2.4)	8.5(2.6)	280	160	/	/	/
14000(6350)	6.56(2.0)	6.89(2.1)	340	198	/	/	/
17000(7711)	5.25(1.6)	5.58(1.7)	390	220	/	/	/
20000(9072)	3.9(1.2)	4.26(1.3)	430	253	/	/	/

Item	EWB20000U	EWB20000S	EWB20000A
Overall dimensions	24.66″×8.4″×11.7″	24.66″×8.4″×11.7″	24.66″×8.4″×9.9″
(L×W×H)	626.5 mm ×214mm × 297mm	626.5 mm ×214mm × 297mm	626.5 mm ×214mm × 252mm
Net weight (Ibs/kg)	154.3lbs / 70kg	154.3lbs / 70kg	154.3lbs / 70kg

Tow Truck Hydraulic Winch 8T HWH080 For Road Recovery Wrecker Vehicle
HWH080(HWH080II)
Rated tension 8000Kgs (8T)
Working speed 4m/min
Rope capacity 32m
Specification of steel wire rope Φ 14*32m
Number of steel wire rope layers three
Rated pressure 15Mpa
Rated flow 50L/min
Motor displacement 65ml/L
Reduction ratio 38:1
Installation hole spacing 300mm * 380mm * 386mm 8-m14 bolt
Overall dimension
(length * width * height) 665mm*486mm*370mm
Net weight 130KgОсновные характеристики гидравлической лебедки Runva HWH080:

Тяговое усилие	17600 lbs / 8000 кг
Рабочий объем мотора	125 мл/об
Давление	15 МПа
Редуктор	двухступенчатый планетарный
Передаточное отношение	38 : 1
Расход масла	15~50 л/мин
Тип, размер троса	сталь, 14 мм x 32 метра
Размер барабана	диаметр 63 мм, ширина 223 мм
Уровень защиты	герметичное исполнение
Посадочный размер	300 x 380 x 386 мм, 8 болтов М14
Габаритные размеры (Д x Ш x В)	665 x 486 x 370 мм
Вес лебедки	130 кг

Brand model Runva Runhua brand 20t winch obstacle removal vehicleRUNVA HWE200 WITH STEEL CABLE Rated Line Pull: 44,000LB (20,000KG)
(HWE200S) HWE200
Rated tension 20000Kgs (20T)
Working speed 6m/min
Rope capacity 50m
Specification of steel wire rope Φ 26*40m
Number of steel wire rope layers 5
Rated pressure 17Mpa
Rated flow 120L/min
Motor displacement 315ml/r
Reduction ratio 36:1
Installation hole spacing 532mm * 160mm * 280mm 8-m20 bolt
Overall dimension
(length * width * height) 1158mm*512mm*420mm
Net weight 380Kg
FOB$4500~$5800USD
RUNVA HWE150 WITH STEEL CABLE
HWE150
Rated tension 15000Kgs (15T)
Working speed 6m/min
Rope capacity 55m
Specification of steel wire rope Φ 22*40m
Number of steel wire rope layers 5
Rated pressure 17Mpa
Rated flow 120L/min
Motor displacement 250ml/r
Reduction ratio 40.6:1
Installation hole spacing 522mm * 180mm * 280mm 8-m20 bolt
Overall dimension
(length * width * height) 1030mm*500mm*415mm
Net weight 300Kg
FOB$3800~$4500USD
10t Winch Obstacle Removal Vehicle Mounted
10t Winch Obstacle Removal Vehicle Mounted
HWE100
Rated tension 9800Kgs (10T)
Working speed 7m/min
Rope capacity 60m
Specification of steel wire rope Φ 18*40m
Number of steel wire rope layers 4
Rated pressure 17Mpa
Rated flow 60L/min
Motor displacement 200ml/r
Reduction ratio 37.8:1
Installation hole spacing 522mm * 180mm * 280mm 8-m20 bolt
Overall dimension
(length * width * height) 665mm*486mm*370mm
Net weight 130Kg
FOB$2500~$3200USD
