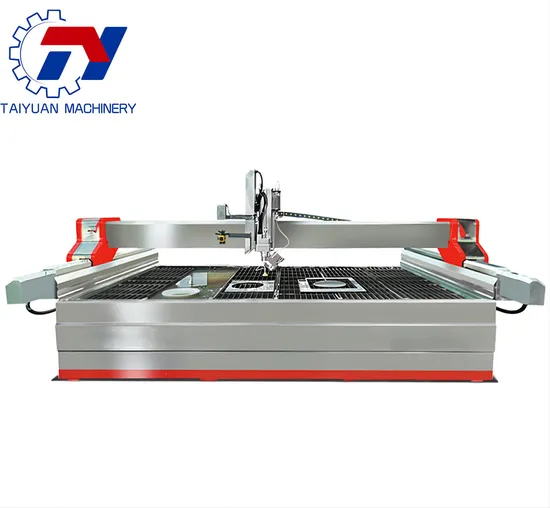

TY-3020 High-Performance CNC Waterjet Cutting Machine for Precision Fabrication
Product Introduction
Based on the actual production needs of users and the technical requirements of the equipment, we provide users with a CNC ultra-high pressure water cutting machine model TY-3020 five axis AC. The equipment mainly consists of an ultra-high pressure booster, a cutting platform, a CNC operation cabinet, an automatic sand supply bucket, etc.
1. AC axis design, achieving CNC five axis (X, Y, Z, A, C) linkage.
2. The structure is simple and practical, with tighter waterproofing and sand prevention, and more ingenious electrical wiring.
3. All parts are processed using high-precision machining centers imported from Japan to ensure machining accuracy.
4. Adopting high-end imported brand servo motors and servo drives for higher control accuracy.
5. Reasonable design, uniform force distribution, effectively improving the operating life and reliability of the five axis water jet
Adopting a gantry dual drive structure, ensuring ultra-high cutting accuracy for the long stroke X-axis The stainless steel hood is equipped with high-quality dustproof folding cloth for double sealing, further preventing the erosion of sand and water on the guide screw, which is currently the most advanced sealing method. The bed is sprayed with professional waterproof epoxy paint to prevent long-term splashing of water from causing corrosion to the bed Adopting American TBI high-quality wide seat ball screws to ensure cutting accuracy and durability Dual protection function of over travel automatic limit and soft limit Adopting high-quality support chains and specialized cables, it is durable and has a bending frequency of over 1 million times. Main technical parameters:

project	name	parameter
model		TY-3020
Effective cutting size		1850mm *2850mm
Z-direction travel		100mm
position accuracy		±0.1mm
Rotation accuracy		±0.1°
Maximum rotational speed		360°/S
Maximum movement speed		10m/min
Eccentric axis range		0-70°
CNC	form	Gantry
	Z Z-axis lifting stroke	>100mm
	repeatability	+0.05mm
	Cutting precision	+0.15mm
	Quick positioning speed	6000mm/min
	Screw rod	TBI
	rail	STAF
	server
	Cutting function	, 45°	Any planar curve, oblique cut at an angle of 45
	other		Over travel limit protection function
