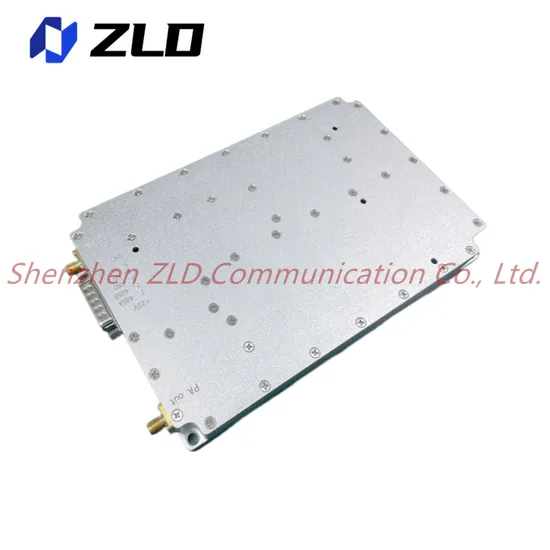

300~1000MHz 100W Broadband Power Amplifier Module
| US$685.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BRPA650M-700-K100W
Support Network
GSM
Information content
Data
Certification
ISO
Condition
New
Product Name
RF Amplifier Module
Keywords
Jammer Module
Gain
55dB
Power
100W
Supplier Type
OEM/ODM
Warranty
1 Year
Application
Mobile Phone, Repeater
Transport Package
Carton Packaging with Foam
Specification
180*120*24mm
Trademark
ZLD
Origin
China
Production Capacity
5000/Year
Product Description
300~1000MHz 100W Broadband Power Amplifier ModuleProduct Features
• 100W Broadband Power Amplifier Module.
• 300~1000MHz Operation Bandwidth.
• Power Amplifier with output short circuit or open circuit protection
Product Description
• The power amplifier module Applied to signal shielding.
• High efficiency power amplifier module, attached to an aluminum sub carrier.Electrical Specifications
| Parameter | Specification | Remark |
| Frequency Range | 300~1000MHz | |
| Saturated Output Power | 50±1dBm | |
| Gain | 55±1dB | |
| Gain Flatness | ≤4.5dB | |
| Gain Stability | ±1.5dBm | at -25ºC~+55ºC |
| Power stability | ±1.5dBm | at -25ºC~+55ºC |
| Input VSWR | ≤1.5 | |
| DC Input Voltage | DC28±1.0V | |
| Current Consumption | 11.5 A typ;13.5 A max. | @ Pout=50W CW, 50 ohms load |
| Power supply port | Through-hole capacitor | |
| Working Temperature | -25~+55ºC | |
| Monitoring interface | 7W2 | |
| RF input connector | SMA-KFD | |
| RF output connector | N-K | |
| Dimension | 180×120×24mm | |
| Installation Dimension | 174×144×24mm | |
| Screw Size | 4-Ø4.2mm | |
| weight | 1.0kg | |
Product Dimensions
