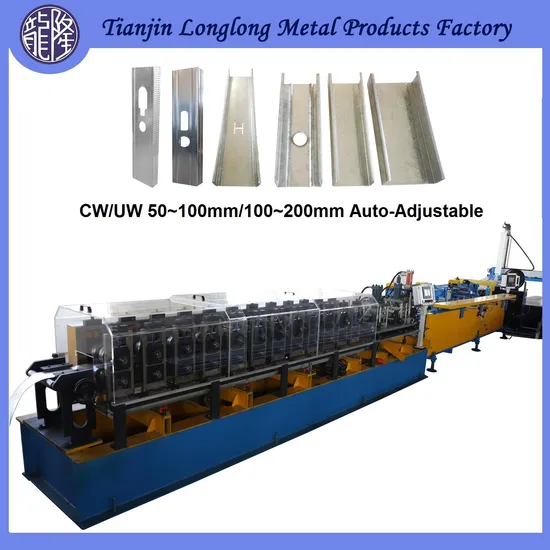

C+U 50~150 Auto-Changed Roll Former Stud and Track Roll Forming Machine for Ceiling and Drywall Steel Profiles

Product Description

C+U 50~150 Auto-Changed Roll Former Stud and Track Roll Forming Machine for Ceiling and Drywall Steel Profiles
Our factory has more 30 person technical team, Give us your drawings/pictures, we can customized design machines for you.
Buyer pre-purchase notices:
1. What do you mean Width & Height double automatic-adjustable?
Here are two sets of automatic-adjustable system in this kind of machines.One set auto-adjustable system control Web width, the other set auto-adjustable system controls Flange height.
2.How to operate machine to achieve Width & Height double automatic-adjustable?
It just reset the size (what size of new product that you want the machine produce) on PLC touch screen, the size of machine is changed automaticlly.it only need you to adjusting the feeding inlet and cutting molds,etc by manual.
It greatly improves the traditional artificial replacement time, reduces the technical requirements of the technicians, and improves the production efficiency.
Main parameters:
Regular Specification
C 50* 50~150mm + U 40*50~150mm Automatic Adjutable

Main components list -- Whole Line
No.	Item			Unit	Qty
1	Decoiler			Set	1
2	Roll rolling machine			Set	1
3	Servo tracking cutting or cut off under stop			Set	1
4	Collecting rack or Automatic packer			Set	1
Detailed Description
Name		No.	Item	Parameters
Decoiler		1	Roll material	Galvanized steel sheet,Cold rolled steel sheet
		2	Roll width	Max 800mm,
		3	Length tolerance	±1mm
		4	Uncoiling	Tension adjustable,unpowered
		5	Load weight	2Ton
Forming machine		1	Motor power	About 15KW
		2	Frame structure	Overall welding structure
		3	Forming station	About 14 stations
		4	Dia. of shaft	¢40~55mm
		5	Shaft	45#,220-250HB thermal refining
		6	Driving method	Gear drive
		7	Speed	40~70 m/min
		8	roller	Cr12, HR58-62
Cutting device		1	Cutting Type	Servo tracking 45 degree Bevell cutting
		2	Power	About 4KW, Hydraulic
Electric control		1	PLC	Delta
Collecting rack		1	Length	About 3m, asyour neeed

Automatic adjustable machine:
No.1 :Light steel stud and track roll forming machines for ceiling and drywall
Raw material: galvanized sheets
Thickness: 0.4~0.8mm
Web Width: 50~100mm / 100~200mm Automatic Adjustable
Flange Height: 28~50mm Automatic Adjustable
No.2 : Ceiling U Baffle Roll Forming Machine
Raw material: Aluminum/ galvanized sheets
Thikcness: 0.3~0.6mm
Web width: 30 ~100mm Automatic-adjustbale
Flange height: 30~150mm Automatic-adjustbale
No.3 : Ceiling Metal linear Roll Forming Machine
Raw material: Aluminum/ galvanized sheets
Thikcness: 0.3~0.6mm
Web width: 200 ~550mm Automatic-adjustbale
Flange height: can be auto-adjustbale as your need.
No.4 : Heavy steel C/U steel purlin roll forming machines
Raw material: galvanized sheets/Alu-zinc steel sheets
Thickness: 1.8~3.0mm
Web Width: 50~160mm / 130~250mm Automatic Adjustable
Flange Height: 30~65mm Automatic Adjustable
Automatic Packer
These kinds of packer can packing Furring, stud and track, L steel angle, 50~300mm C/U channel.

Patent Certificate
Main Types of Exported Machine
Advantage
1.We are manufacturer and have export entitlement.
2.We have more than 30 years' experience, our products have been exported to more than 80 countries all over the world.
3.We supply manufacturing, design, installation, after-sales and other services.
FAQs
1.Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.
We need your machines running in order to keep your business running.
2.How to visit your company?
a. Fly to Beijing airport, we can pick up you.
b. Fly to Tianjin Airport, we can pick up you.
3.How to get a quotation?
a. Give me the profile drawing and thickness, this is the important. If no, I will suggest you some.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
4.You are trade company or factory?
We are factory. Welcome to our workshop for visiting.
5.Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
6.How long the machine could be made?
Normally speaking, common roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.
