Pharmaceutical Stainless Steel Tc Clamp Sanitary Pneumatic Control Diaphragm Valve with Actuator

Product Description

Focus On Sanitary Solution of Diaphragm Valve
Product Parameters

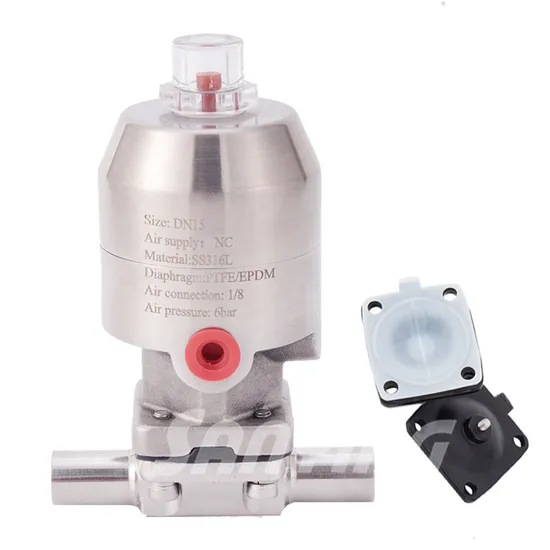

Sanitary Pneumatic Diaphragm Valve
Sanying diaphragm valve has a unique patented design which leads to minimize dead corner to prevent waste entrapment and contamination from bacteria or microorganisms.
Euro and Japan Imported seals,meet FDA standard
Internal treatment : 0.2~0.4 μm
Body Supply : Investment Casting / PTFE Coated / Forged / Block Body
Body Connection : Welded / Clamped / Threaded / Flange

Size	1/4"-6"( DN6-DN150),or customized
Body Material	SS 316L / 304 (CF8M /CF8 ) or others
Seal Material	EPDM+PTFE(Standrad) / EPDM /Silicon/FPM
Actuator Material	Plastic / Stainless Steel
Max Pressure	10Bar ( 145psi / 1 Mpa)
Temperature	-20 ° C ~ 150 ° C (Depending On Diaphragm )
Operation	Pneumatic /Manual (Optional)
Available Standard	ASME BPE /3A /DIN /ISO /IDF,SMS etc.
Certification	3A-54-02/1580, PED97/23 EC, FDA177.2600
Application Scope	pharmaceutical ,food, beverage, dairy, water processing, wine, fine chemicals industries etc.

Clamp Connection ( example for ASME BPE Clamp For ASME BPE tube size)Remark : All size can be customized
Our Advantages
1.Product Advantage
Euro and Japan Imported seals,meet FDA standardInternal treatment : 0.2~0.4 μm
2. Comapny Advantage
A. Sanying manufacture valves with more than 1 million pcs ,which means we had upgraded and optimized many times,solve the problem in advance to ensure best performance and best application.B. Forged / Cast bodies with one time CNC machining, guarantee machining precision.
Company Profile
Zhejiang Sanying Fluid Equipment Co., Ltd. We are a leading manufacturing and trading combo for sanitary valves,pipe and tank fittings more than decades years. we offer comprehensive
stainless steel manufacturing solutions for pharmaceutical,food,beverage,dairy ,winery,beer,water treatment,fine chemical and other industries.
The company adheres to the principle of strict quality control. The products have passed the FDA certification and have implemented the ISO9001:2008 quality certification. The quality of our products meets the stringent requirements of GMP and CE inspection.
We are not only a manufacturer but also a great team that provids world-class technology solutions to global customers from technicaladvice to choose the right products to the design and manufacture of custom products .
National Exhibition
FAQ
A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to
you within your first order.
B) Lead time?
Within 1 week for existing product .
C) Are you a factory or trading company?
We are a factory
D) Can you do OEM for me?
We accept all OEM orders, just contact us and give me your design.we will offer you a reasonable price and make samples
for you ASAP.
