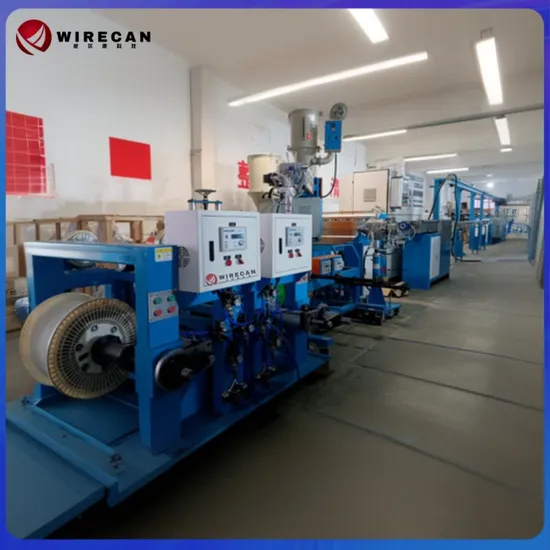

Sheathing Power Cable Extrusion Machine Production Line Wire and Cable Extrusion Machine
| US$30,000.00-80,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
WRK-860
Type
Cable Extruder
Plastic Processed
PVC
Product Type
Granulating Extruder
Feeding Mode
One Feed
Assembly Structure
Separate Type Extruder
Screw
Single-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Driven Type
Electric
Condition
New
Certification
ISO
Application
Power Cable Extrusion Machine
Usage
Extruding
Cable Diameter
According to Different Extruder Size
Machine Size
GF-70/80/90/120
Suitable Material
PVC/PE
Motor
Siemens
Automatic Grade
Automatic
Payment Term
T/T, L/C
Service
Technical Support, Training
Transport Package
Plastic Film+Wooden Package
Trademark
WIRECAN
Origin
China
HS Code
84772090
Production Capacity
4set Per Month
Packaging & Delivery
Package Size
1680.00cm * 1310.00cm * 1350.00cm
Package Gross Weight
50.000kg
Product Description
1, Cable making Equipment application:
Suitable for the extrusion of PVC,PE,PU and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.
2, Cable-making equipment Technical parameters:
| machine type | GF-65 | GF-70 | GF-80 | GF-90A | GF-90B | GF-120 | GF-150 | GF-200 | ||||
| pay-off shaft | double-shaft type | 800-1600 | 1000-2000 | 1600-2500 | 1600-3150 | |||||||
| screw diameter | ø65 | ø70 | ø80 | ø90 | ø120 | ø150 | ø200 | |||||
| screw L/D | 25:01:00 | |||||||||||
| MAX. extrusion output | 130kg/h | 150kg/h | 200kg/h | 250kg/h | 280kg/h | 400kg/h | 650kg/h | 900kg/h | ||||
| motor power | 25HP | 30HP | 40HP | 50HP | 60HP | 70HP | 100HP | 150HP | ||||
| wire diameter | ø1.2-10mm | ø1.5-12mm | ø2.0-20mm | ø3.0-25mm | ø10-40mm | ø15-60mm | ø30-120mm | above ø40mm | ||||
| cooling device | single layer/double layers U type | single layer U type | ||||||||||
| haul-off power | 5HP | 7.5HP | 10HP | 15HP | 20HP | 10HP | ||||||
| MAX. line speed | 500m/min | 450m/min | 400m/min | 200m/min | 100m/min | 60m/min | 60m/min | |||||
| take-up type/power | double-shaft bundle packaging | ø1000mm-2000mm | ø1600mm-2500mm | ø1600mm-3150mm | ø2000mm-3500mm | |||||||
3. Equipment configuration
| No. | All parts' name | Qty |
| 1 | Pay off rack | 1set |
| 2 | Copper wire pre-heater | 1set |
| 3 | Straightener platform | 1set |
| 4 | Main motor(free-adjustable) | 1set |
| 5 | Automatic dryer and hopper | 1set |
| 6 | Electric apparatus main control cabinet | 1set |
| 7 | Movable water trough | 1set |
| 8 | Laser diameter gauge | 1set |
| 9 | High speed printing machine | 1set |
| 10 | Fixed water-trough | 1set |
| 11 | Double-wheel capstan | 1set |
| 12 | Horizontal wire-accumulator | 1set |
| 13 | High frequency sparker | 1set |
| 14 | Double-shaft take-up machine | 1set |
